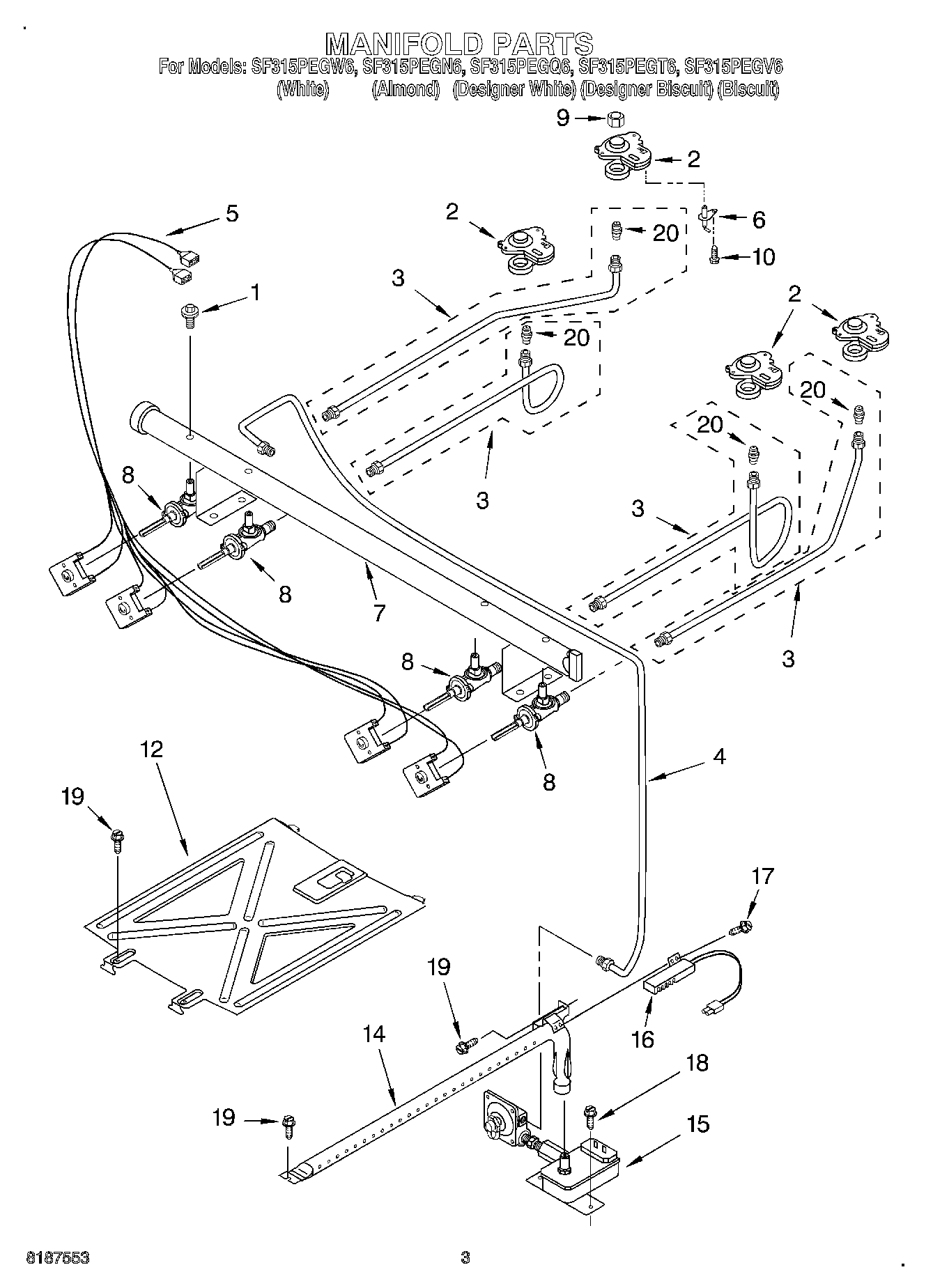

SF315PEGN6 03 – MANIFOLD
Products
Position
Product
1
WP8273096 Whirlpool Screw
2
Burner Base (Small (1))
2
WP8273700 Whirlpool Base Burner
3
WP8273693 Whirlpool Gas Tubing
3
Tubing, Burner W/Orifice (Right Rear)
3
Tubing, Burner W/Orifice (Left Rear)
3
Tubing, Burner W/Orifice (Right Front)
4
Tubing (Manifold to Regulator)
5
Harness, Igniter (W/Switches)
6
WP8523793 Whirlpool Oven Surface Igniter
7
Pipe, Manifold
8
WP9757218 Whirlpool Burner Valve
8
Valve (Right Rear)
9
Nut (4)
10
WP8273062 Whirlpool Screw
12
Spreader, Flame (Oven)
14
Burner, Bake
15
Valve, Gas Combo
16
WP3186491 Whirlpool Oven Igniter
17
W11684507 Whirlpool Screw
19
SCREW
20
WP8273067 Whirlpool Orifice
20
WP8273066 Whirlpool Orifice
20
WP8273065 Whirlpool Orifice
20
Spuds, LP Gas (Kit of 4)
20
WP8273064 Whirlpool Orifice
←
