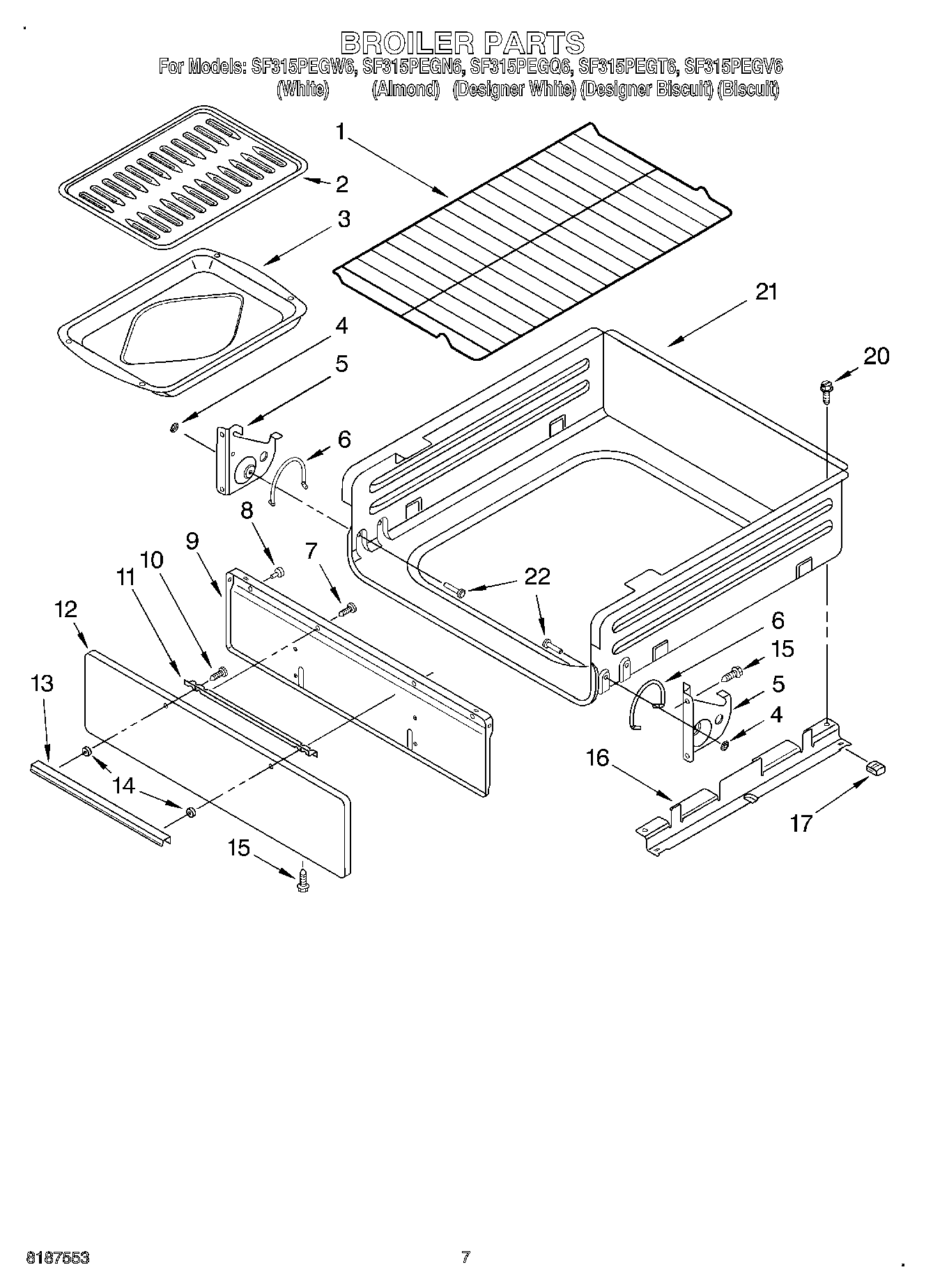

SF315PEGN6 05 – BROILER

Products

Position	Product
1	WPW10256908 Whirlpool Oven Range Rack
2	WP3195996 Whirlpool Pan Grid
3	WP3196076 Whirlpool Broil Pan
4	WP3195558 Whirlpool Nut
5	Bracket, Hinge (Right Hand)
5	Bracket, Hinge (Left Hand)
6	Spring, Hinge (Left Hand)
6	Spring, Hinge (Right Hand)
7	Screw
8	Bumper (4)
9	Liner, Brlr Door
10	Screw, Handle (2)
11	Bracket, Standoff
12	Panel, Door (Biscuit)
12	Panel, Door (Almond)
12	Panel, Door
13	Handle, Brlr Door (White)
13	Handle, Brlr Door (Black)
13	Handle, Brlr Door (Biscuit)
14	Spacer, Handle (2)
15	SCREW
16	Guide, Upper (2)
17	Glide, Broiler (2)
20	WP3400832 Whirlpool Screw
21	Carriage, Broiler
22	Pin, Pivot (2)
