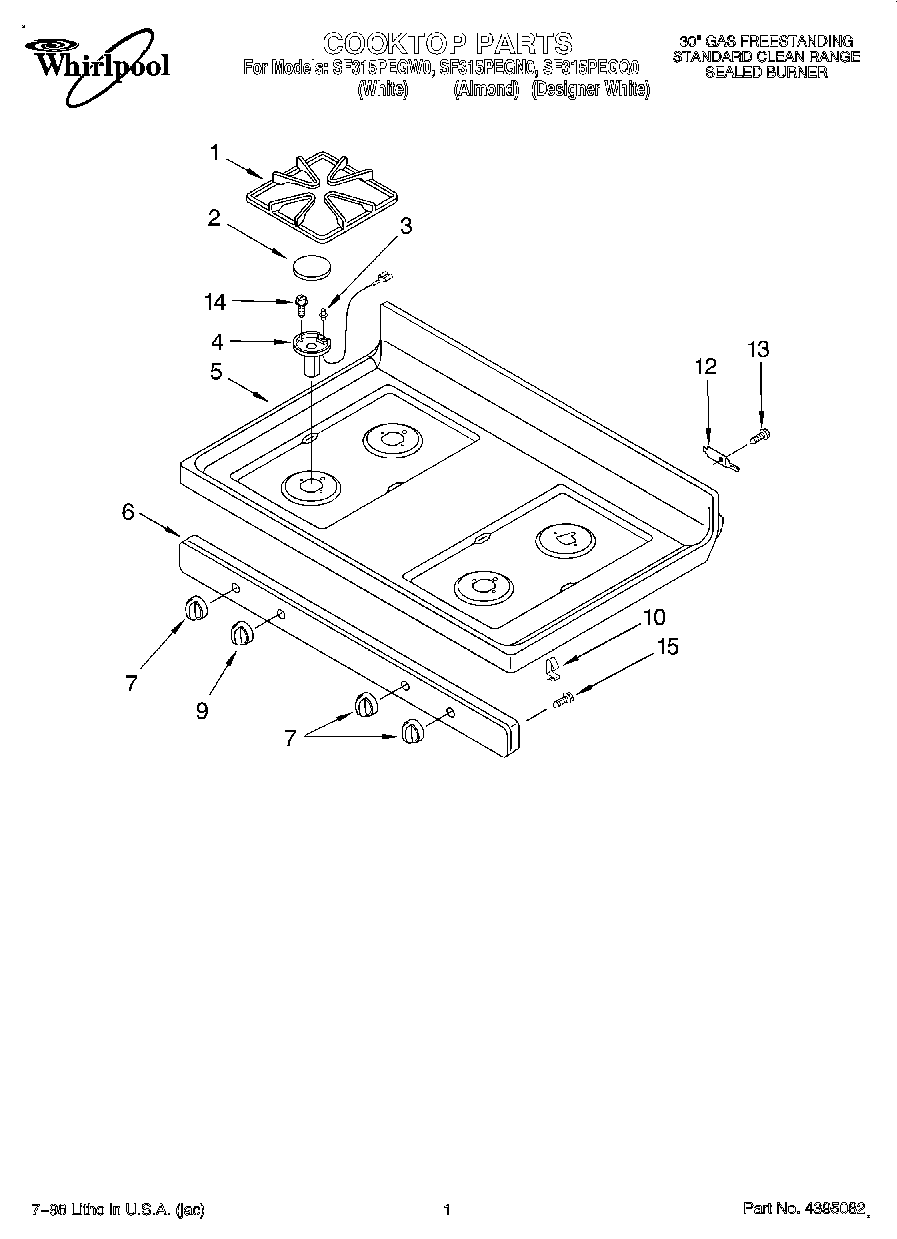

SF315PEGQ0 01 – COOKTOP

Products

Position	Product
1	WPW10268483 Whirlpool Grate Kit
1	W10837340 Whirlpool Grate Kit
2	(Cap, Burner Small (1)) (Gray)
2	Cap, Burner (Small (1) (Black))
2	Cap, Burner Large (3) (Gray)
2	Cap, Burner (Large (3) (Black))
3	W11122877 Whirlpool Surface Igniter
3	W11117434 Whirlpool Surface Igniter
3	W11087383 Whirlpool Surface Igniter
3	W11032529 Whirlpool Surface Igniter
4	WP8053360 Whirlpool Burner Head
4	Burner, 6,500 BTU (RR)
5	Cooktop (Almond)
5	Cooktop (White)
6	8523855 Whirlpool Oven Manifold Panel
6	WP8523854 Whirlpool Manifold Panel
7	WP8053596 Whirlpool Knob
7	WP8053595 Whirlpool Oven Knob
10	Clip – Mounting
12	WP3195060 Whirlpool Cooktop Pin
13	SCREW
14	WP3400861 Whirlpool Screw
15	WP3196557 Whirlpool Screw
