SF315PEGT5 05 – BROILER
Written by
in

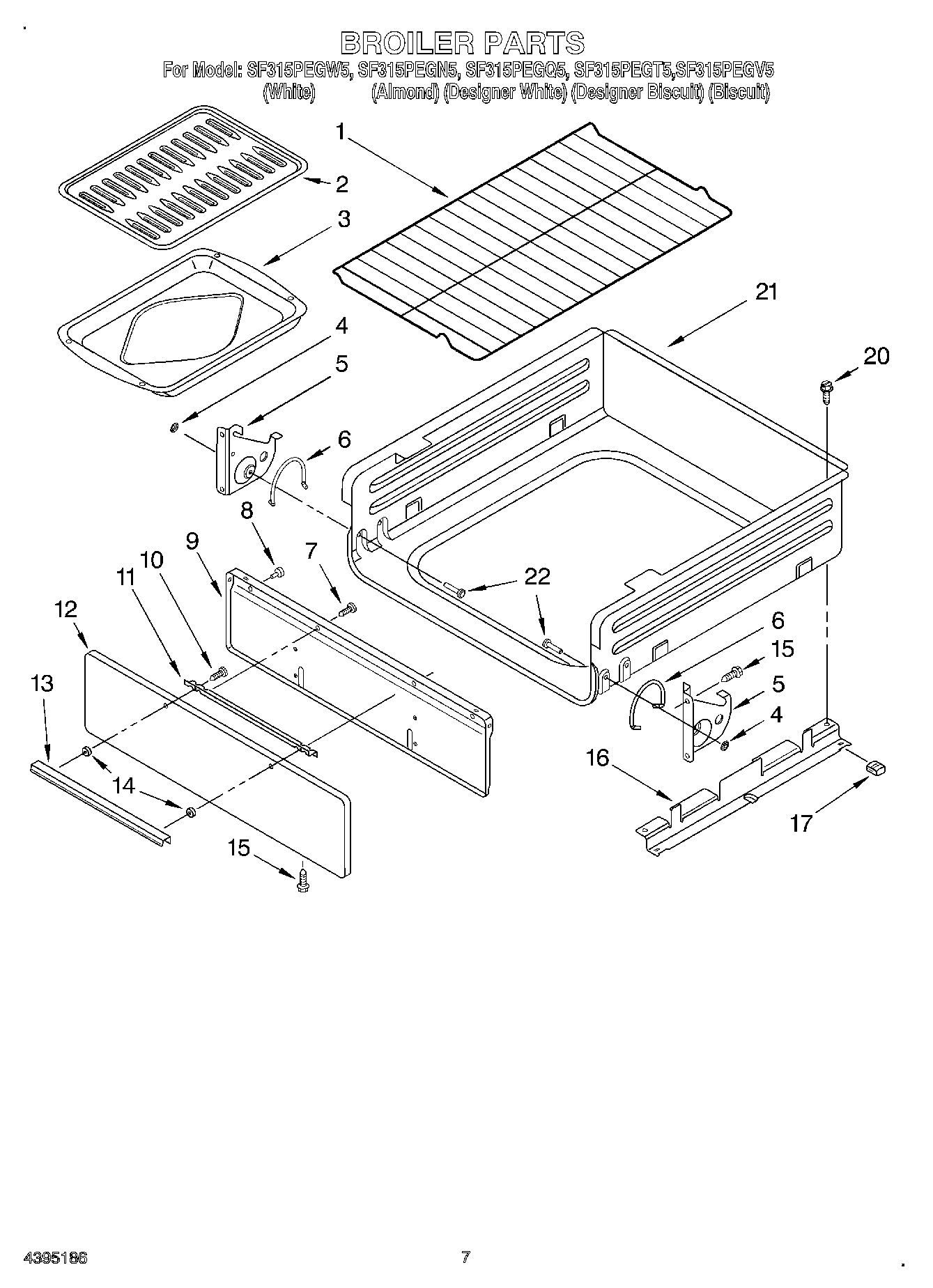

SF315PEGT5 05 – BROILER
Products
Position
Product
1
WPW10256908 Whirlpool Oven Range Rack
2
WP3195996 Whirlpool Pan Grid
3
WP3196076 Whirlpool Broil Pan
4
WP3195558 Whirlpool Nut
5
Bracket, Hinge (Right Hand)
5
Bracket, Hinge (Left Hand)
6
Spring, Hinge (Left Hand)
6
Spring, Hinge (Right Hand)
7
Screw
8
Bumper (4)
9
Liner, Brlr Door
10
Screw, Handle (2)
11
Bracket, Standoff
12
Panel, Door (Biscuit)
12
Panel, Door (Almond)
12
Panel, Door
13
Handle, Brlr Door (White)
13
Handle, Brlr Door (Black)
13
Handle, Brlr Door (Biscuit)
14
Spacer, Handle (2)
15
SCREW
16
Guide, Upper (2)
17
Glide, Broiler (2)
20
WP3400832 Whirlpool Screw
21
Carriage, Broiler
22
Pin, Pivot (2)
←
