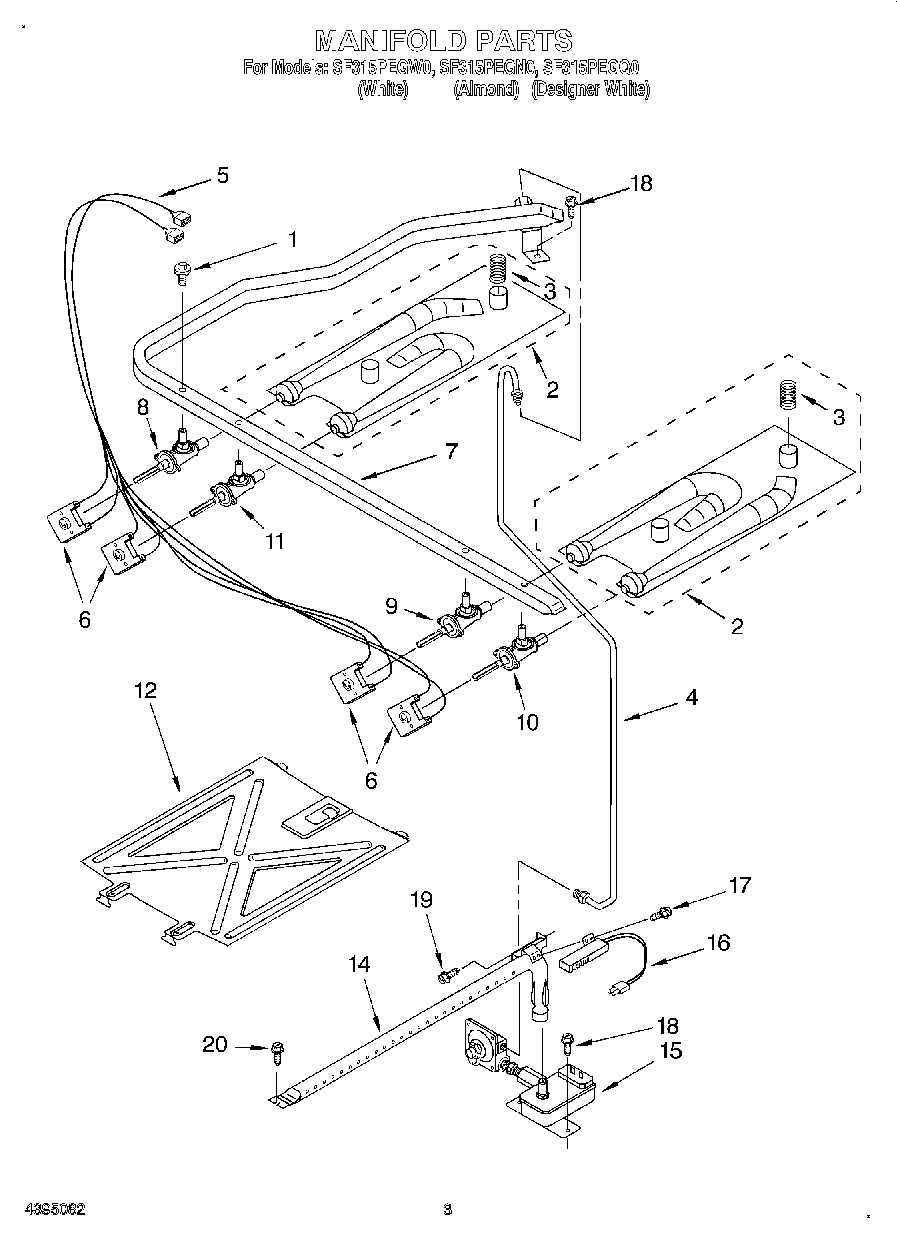

SF315PEGW0 03 – MANIFOLD

Products

PositionProduct
1WP3186217 Whirlpool Screw
2Plate, Venturi (Includes No. 3) (Right Hand)
2Plate, Venturi (Includes No. 3) (Left Hand)
3Spring, Seal (4)
4Tubing (Manifold to Regulator)
5Harness, Igniter (Incl. Switches)
6Switch, Spark
7Pipe, Manifold
8Valve, 7,500 BTU (LR)
9Valve, 9,500 BTU (RF)
10Valve, 6,500 BTU (RR)
11Valve, 12500 BTU (LF)
12Spreader, Flame (Oven)
14Burner, Bake
15Valve, Gas Combo
16WP3186491 Whirlpool Oven Igniter
17W11684507 Whirlpool Screw
19SCREW
20Spuds, LP Gas (Kit of 4)
20Spuds, Natural Gas (Kit of 4)
203196265 Whirlpool Oven Screw
