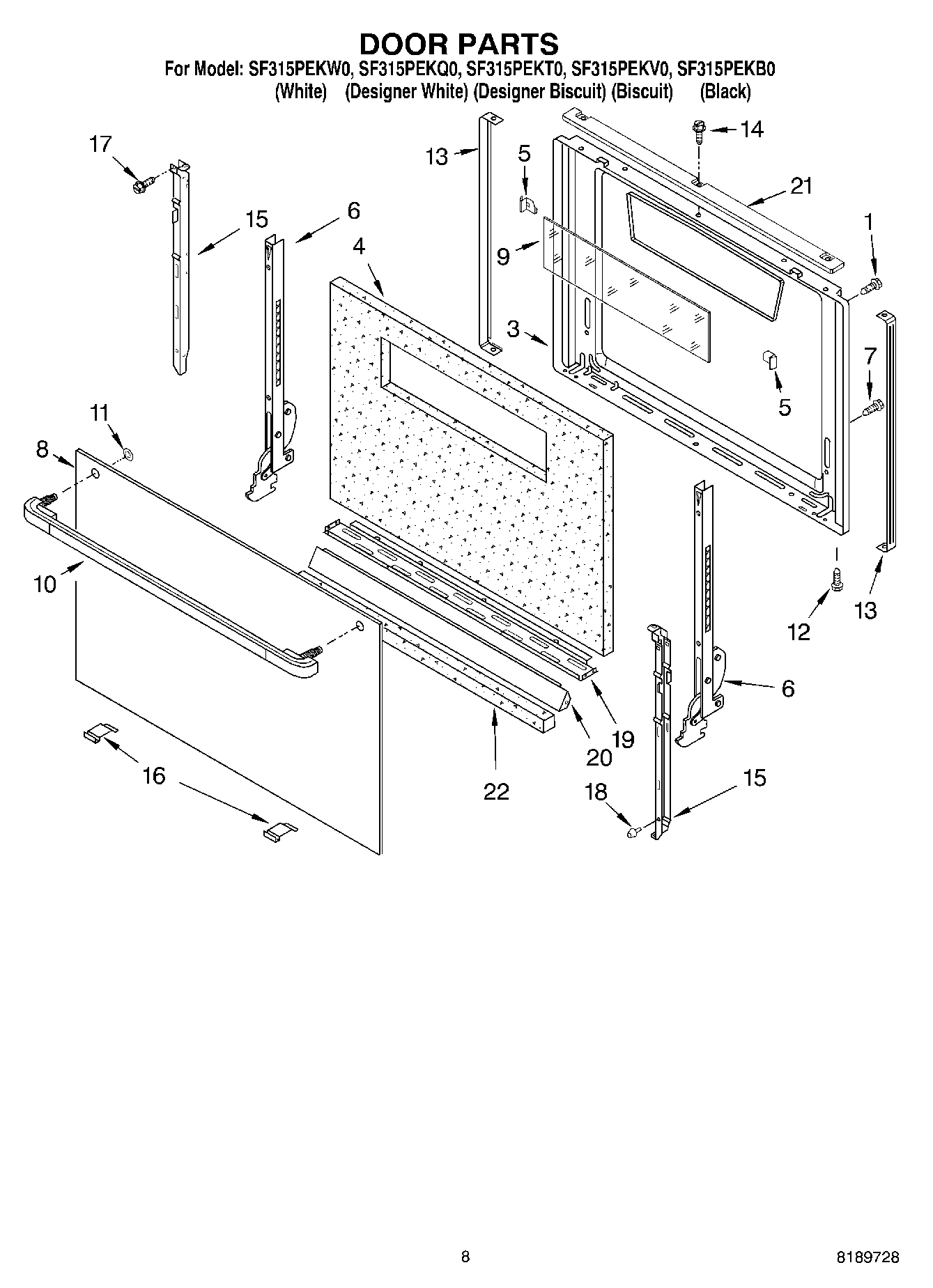

SF315PEKB0 06 – DOOR

SF315PEKB0 06 – DOOR

Written by

in

SF315PEKB0 06 – DOOR

Products

Position	Product
1	WP98004218 Whirlpool Screw
3	98010182 Whirlpool Door Liner
4	Insulation, Door
5	98004952 Whirlpool Oven Clip
5	98004953 Whirlpool Clip
6	Hinge, Door (2)
7	W11206744 Whirlpool Screw
8	Panel, Door (Black)
8	Panel, Door (White)
8	Panel, Door (Biscuit)
9	Glass, Inner
10	WP98005317 Whirlpool Door Handle
10	WP98005318 Whirlpool Door Handle
10	Handle, Oven Door (Biscuit)
11	WP98004650 Whirlpool Nut
12	WP59002061 Whirlpool Microwave Screw
13	98006794 Whirlpool Oven Door Trim
13	WP98006793 Whirlpool Door Trim Assembly
13	98008174 Whirlpool Oven Door Trim
14	WP3400832 Whirlpool Screw
14	Screw (Biscuit)
14	3196166 Whirlpool Screw
15	98004564 Whirlpool Oven Retainer
15	98004629 Whirlpool Oven Retainer
16	98010184 Whirlpool Oven Door Trim
16	WP98010187 Whirlpool Range Door Trim
16	WP98010185 Whirlpool Door Trim
17	WP3400805 Whirlpool Screw Assembly
18	98004227 Whirlpool Oven Bumper
19	98004938 Whirlpool Oven Retainer
20	Insulation, Retainer-Bottom
21	Top Trim, Door (White)
21	98006884 Whirlpool Oven Door Trim
21	98008175 Whirlpool Door Trim
22	Harness, Switch
22	Wire, 25` Roll (Black 14 Ga.)
22	WPL 98005915
22	FOIL, ALUMINUM OVEN (18“ X 25 )
22	WPW10208653 Whirlpool Insulation
22	WPL 799832
22	549193 Whirlpool Refrigerator Power Clamp
22	350930 Whirlpool White Spray Paint
22	350956 Whirlpool Spray Assembly
22	72017 Whirlpool Appliance Touch-Up Paint White
22	799344 Whirlpool Refrigerator Paint
22	Insulation
22	WP72107 Whirlpool Touchup
22	511873 Whirlpool Refrigerator Paint
22	Almond (Uncut)
22	350942 Whirlpool Spray Paint
22	WPL 98005553
22	98017831 Whirlpool Oven Anchor Tip
22	1
22	18 Ga. 80~c Rating (Red)
22	8212471 Whirlpool Oven Paint
22	Grease
22	WP9757891 Whirlpool Power Cord
22	CLIP, WIRE
22	Wire (12 Ga. 150 c Black)
22	Wire (14 Ga. 150 c Yellow)
22	Wire (14 Ga. 150 c Orange)
22	Wire (14 Ga. 150 c Green)
22	Wire (14 Ga. 150 c Brown)
22	Wire (14 Ga. 150 c Blue)
22	242831 Whirlpool Oven Wire
22	814381 Whirlpool Pin
22	285006 Whirlpool Spray
22	Wire, 25“ Roll (White 14 GA.)
22	Wire, 25` Roll (Red 14 Ga.)
22	Wire (14 Ga. 200 c Brown)
