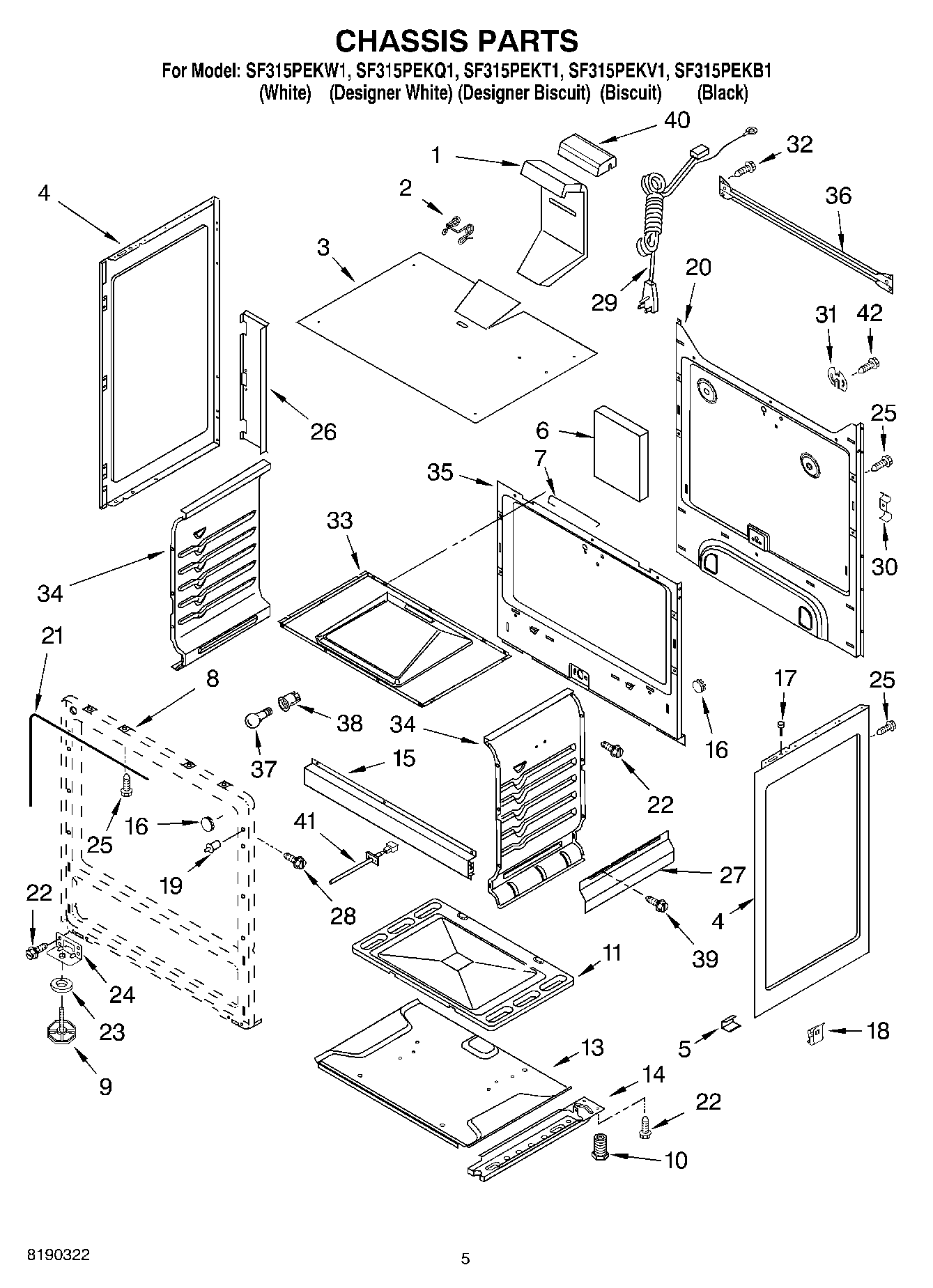

SF315PEKQ1 04 – CHASSIS PARTS

Products

PositionProduct
1WPW10116396 Whirlpool Flue Box
298013690 Whirlpool Clip
3Shield, Insulation
4WP98010042 Whirlpool Side Panel
498010045 Whirlpool Oven Side Panel
4WP98010043 Whirlpool Side Panel
5CLIP, OVEN BOTTON
6Counterweight
798006739 Whirlpool Oven Wire Tie
8Frame, Front
9WP3196037 Whirlpool Leveling Foot
10WPW10058460 Whirlpool Appliance Levelling Leg
11WP98004449 Whirlpool Oven Bottom
1398003847 Whirlpool Oven Bottom Baffle
1498003830 Whirlpool Rail Base
15Support, Burner
16Button, Plug (25/32“)
16Button, Plug (15/32“)
16Button, Plug (5/16“)
1798004723 Whirlpool Oven Bumper
1898009179 Whirlpool Oven Nut
19Switch, Door
20Back, Main
21Seal, Oven
2398007193 Whirlpool Oven Washer
2498007126 Whirlpool Oven Stand Bracket
25SCREW
2698006715 Whirlpool Channel Assembly
2798007191 Whirlpool Oven Heat Shield
28WP98006631 Whirlpool Screw
29WP9757891 Whirlpool Power Cord
3098005026 Whirlpool Oven Clip
31Retainer, Burner
32W10837731 Whirlpool Screw Assembly
3398004447 Whirlpool Top
3498004451 Whirlpool Oven Side Panel
3498004452 Whirlpool Oven Side
3598005768 Whirlpool Back Liner
3698015363 Whirlpool Oven Support
37RANGE ONLY 40W 120V APPL BULB
38W10856866 Whirlpool Light Socket
39Screw
4098007205 Whirlpool Oven Vent Cap
41Sensor, Oven
4298004294 Whirlpool Insulation Wire
42Screw
42W11311894 Whirlpool Insulation
42WPW10208653 Whirlpool Insulation
42Insulation
