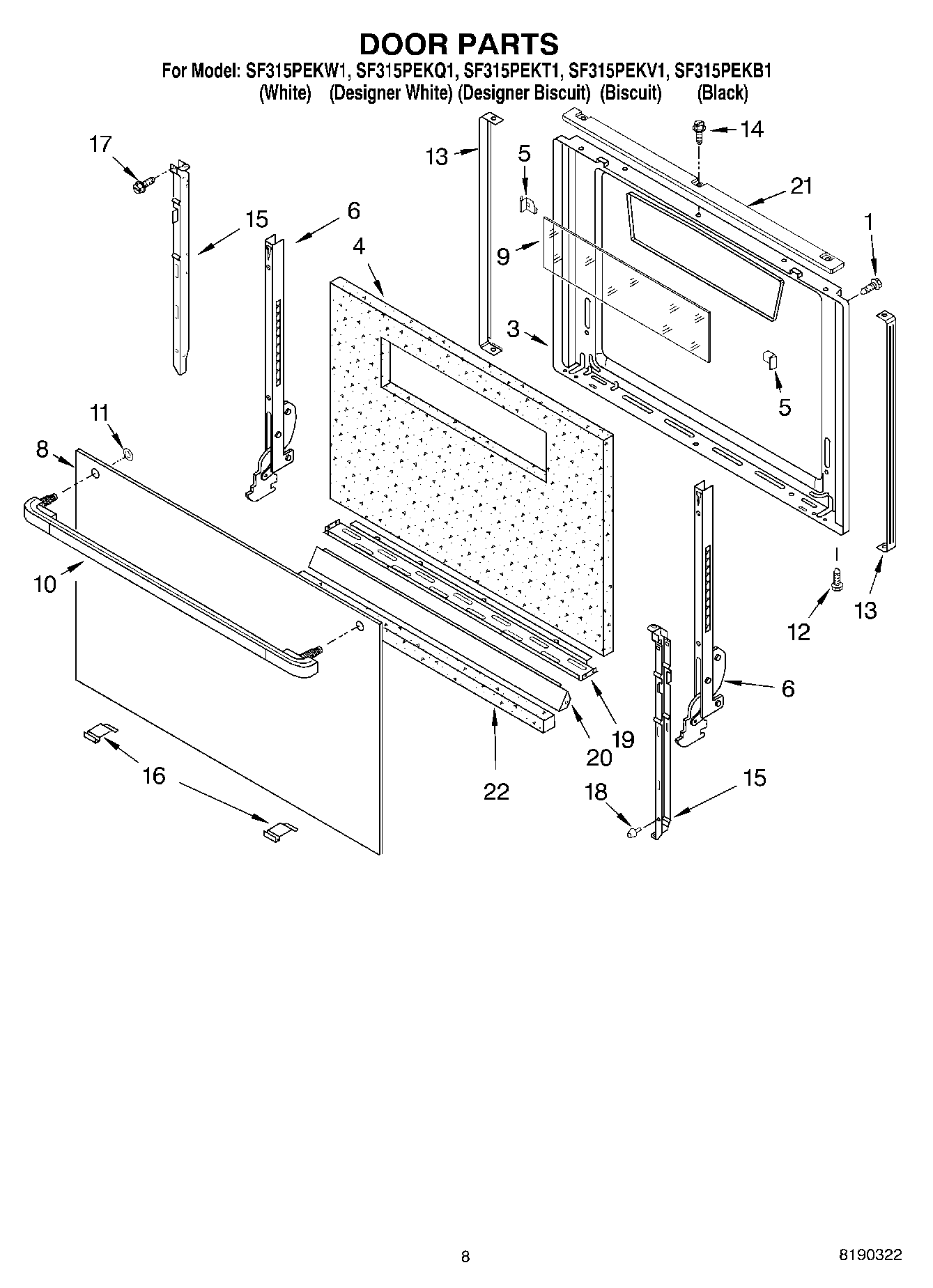

SF315PEKV1 06 – DOOR PARTS, MISCELLANEOUS PARTS
Written by
in
SF315PEKV1 06 – DOOR PARTS, MISCELLANEOUS PARTS
Products
Position
Product
Harness, Switch
Wire (14 Ga. 150 c Yellow)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 200 c Brown)
1
WPL ARI129657A
WPL ARI129656A
8212471 Whirlpool Oven Paint
Grease
WP9757891 Whirlpool Power Cord
CLIP, WIRE
WPL ARI129655A
WPL ARI129654A
WPL ARI129653A
WPL ARI129659A
98017831 Whirlpool Oven Anchor Tip
WPL 98005915
WPL 6610241
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
350942 Whirlpool Spray Paint
WPL ARI129658A
Almond (Uncut)
WP72107 Whirlpool Touchup
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
350956 Whirlpool Spray Assembly
350930 Whirlpool White Spray Paint
511873 Whirlpool Refrigerator Paint
549193 Whirlpool Refrigerator Power Clamp
285006 Whirlpool Spray
242831 Whirlpool Oven Wire
Wire, 25` Roll (Red 14 Ga.)
Wire (14 Ga. 150 c Blue)
Wire, 25` Roll (Black 14 Ga.)
WPW10208653 Whirlpool Insulation
WPL 799832
814381 Whirlpool Pin
1
WP98004218 Whirlpool Screw
3
98010182 Whirlpool Door Liner
4
Insulation, Door
5
98004953 Whirlpool Clip
5
98004952 Whirlpool Oven Clip
6
Hinge, Door (2)
8
Panel, Door (White)
8
Panel, Door (Black)
8
Panel, Door (Biscuit)
9
Glass, Inner
10
Handle, Oven Door (Biscuit)
10
WP98005317 Whirlpool Door Handle
10
WP98005318 Whirlpool Door Handle
11
WP98004650 Whirlpool Nut
12
WP59002061 Whirlpool Microwave Screw
13
98008174 Whirlpool Oven Door Trim
13
98006794 Whirlpool Oven Door Trim
13
WP98006793 Whirlpool Door Trim Assembly
14
WP3400832 Whirlpool Screw
14
3196166 Whirlpool Screw
14
Screw (Biscuit)
15
98004629 Whirlpool Oven Retainer
15
98004564 Whirlpool Oven Retainer
16
WP98010187 Whirlpool Range Door Trim
16
98010184 Whirlpool Oven Door Trim
16
WP98010185 Whirlpool Door Trim
17
WP3400805 Whirlpool Screw Assembly
18
98004227 Whirlpool Oven Bumper
19
98004938 Whirlpool Oven Retainer
20
Insulation, Retainer-Bottom
21
Top Trim, Door (White)
21
98006884 Whirlpool Oven Door Trim
21
98008175 Whirlpool Door Trim
22
Insulation
←
