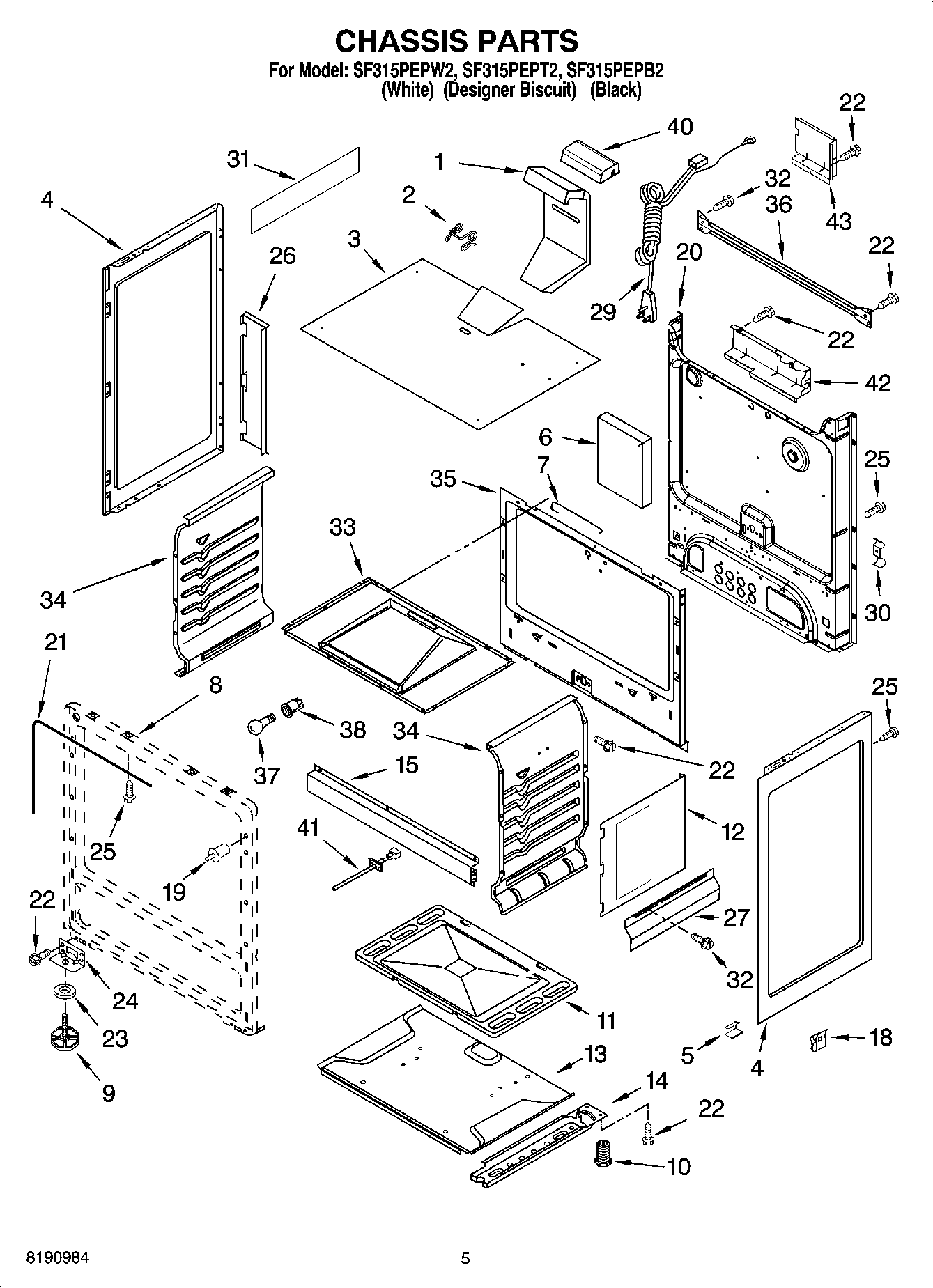

SF315PEPB2 04 – CHASSIS PARTS

Products

PositionProduct
1WPW10116396 Whirlpool Flue Box
298013690 Whirlpool Clip
3Shield, Insulation
4WP98010043 Whirlpool Side Panel
498010045 Whirlpool Oven Side Panel
4WP98010042 Whirlpool Side Panel
5CLIP, OVEN BOTTON
6Counterweight
798006739 Whirlpool Oven Wire Tie
8Frame, Front
9WP3196037 Whirlpool Leveling Foot
10WPW10058460 Whirlpool Appliance Levelling Leg
11WP98004449 Whirlpool Oven Bottom
12Baffle, Side (2)
1398003847 Whirlpool Oven Bottom Baffle
1498003830 Whirlpool Rail Base
1598012175 Whirlpool Oven Support
1898009179 Whirlpool Oven Nut
19Switch, Door
2098015100 Whirlpool Oven Rear Cover
21WPW10217472 Whirlpool Door Gasket
22W10837731 Whirlpool Screw Assembly
2398007193 Whirlpool Oven Washer
2498007126 Whirlpool Oven Stand Bracket
25SCREW
2698006715 Whirlpool Channel Assembly
2798007191 Whirlpool Oven Heat Shield
29W11173616 Whirlpool Power Cord
3098005026 Whirlpool Oven Clip
3198015346 Whirlpool Insulation
32Screw
3398004447 Whirlpool Top
3498004452 Whirlpool Oven Side
3498004451 Whirlpool Oven Side Panel
3598013777 Whirlpool Back Liner
3698015363 Whirlpool Oven Support
37RANGE ONLY 40W 120V APPL BULB
38W10856866 Whirlpool Light Socket
4098007205 Whirlpool Oven Vent Cap
41WPW10181986 Whirlpool Oven Sensor
4298014105 Whirlpool Oven Access Cover
4398014104 Whirlpool Access Cover
43W11706555 Whirlpool Insulation
43W11311894 Whirlpool Insulation
43Insulation
