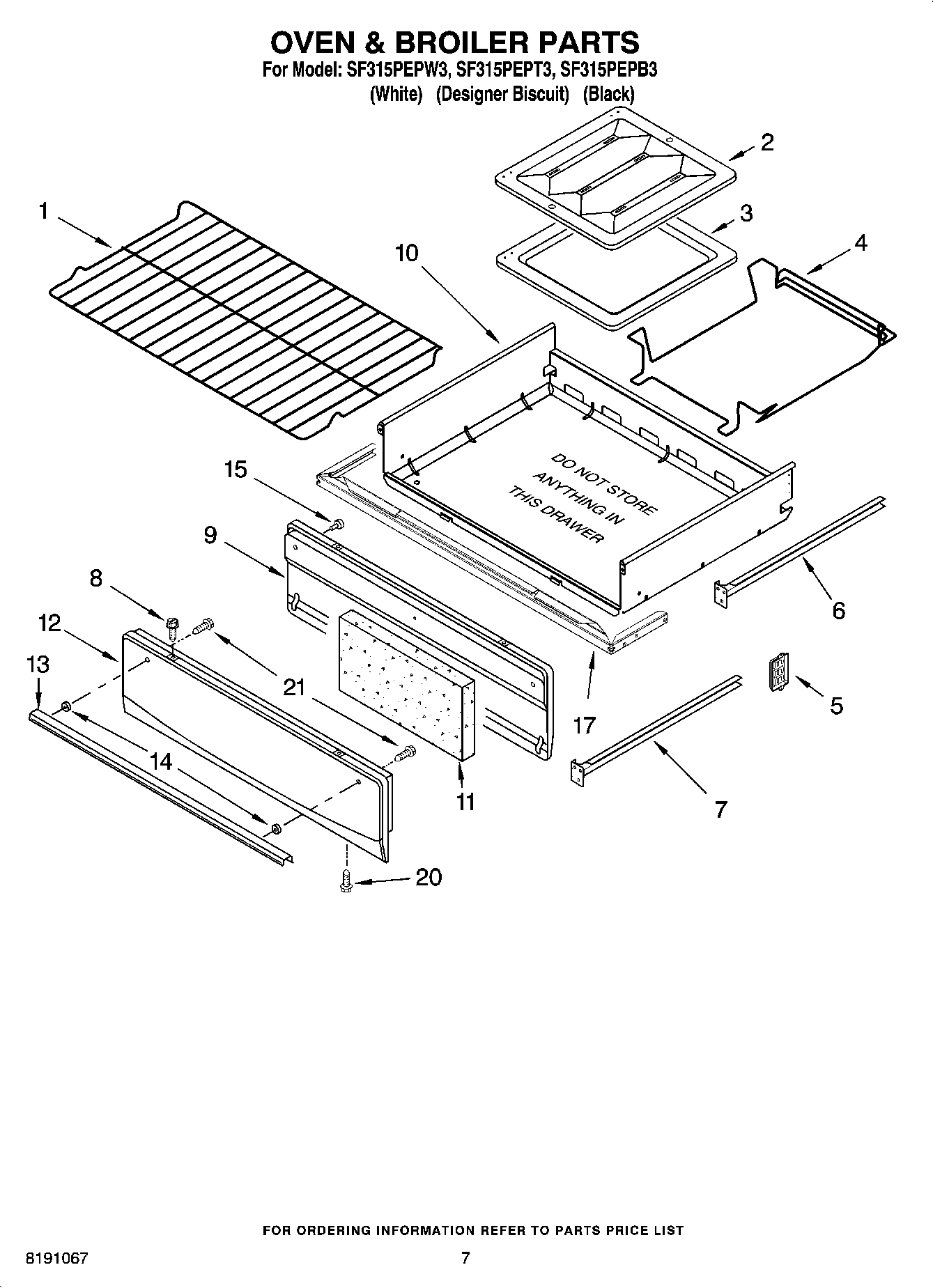

SF315PEPB3 05 – OVEN & BROILER PARTS

SF315PEPB3 05 – OVEN & BROILER PARTS

Written by

in

SF315PEPB3 05 – OVEN & BROILER PARTS

Products

PositionProduct
1Rack, Oven (2)
2WP98003480 Whirlpool Grill Pan
3WP98016005 Whirlpool Broiler Pan
4Rack, Broiler
5Bracket, Rack
6WPW10206639 Whirlpool Drawer Guide
698004994 Whirlpool Oven Drawer Guide
7W10206642 Whirlpool Drawer Guide
7WPW10206641 Whirlpool Drawer Guide
8Screw (Biscuit)
8WP3400832 Whirlpool Screw
83196166 Whirlpool Screw
9Liner, Door
10Storage, Drawer
11Insulation, Door
12Panel, Door (Black)
12Panel, Door (Biscuit)
12Panel, Door (White)
13Handle, Brlr Door (White)
13Handle, Brlr Door (Biscuit)
13Handle, Brlr Door (Black)
14Spacer, Handle
15BUMPER, DOOR
17Support, Rack
20WP3400805 Whirlpool Screw Assembly
21Screw
