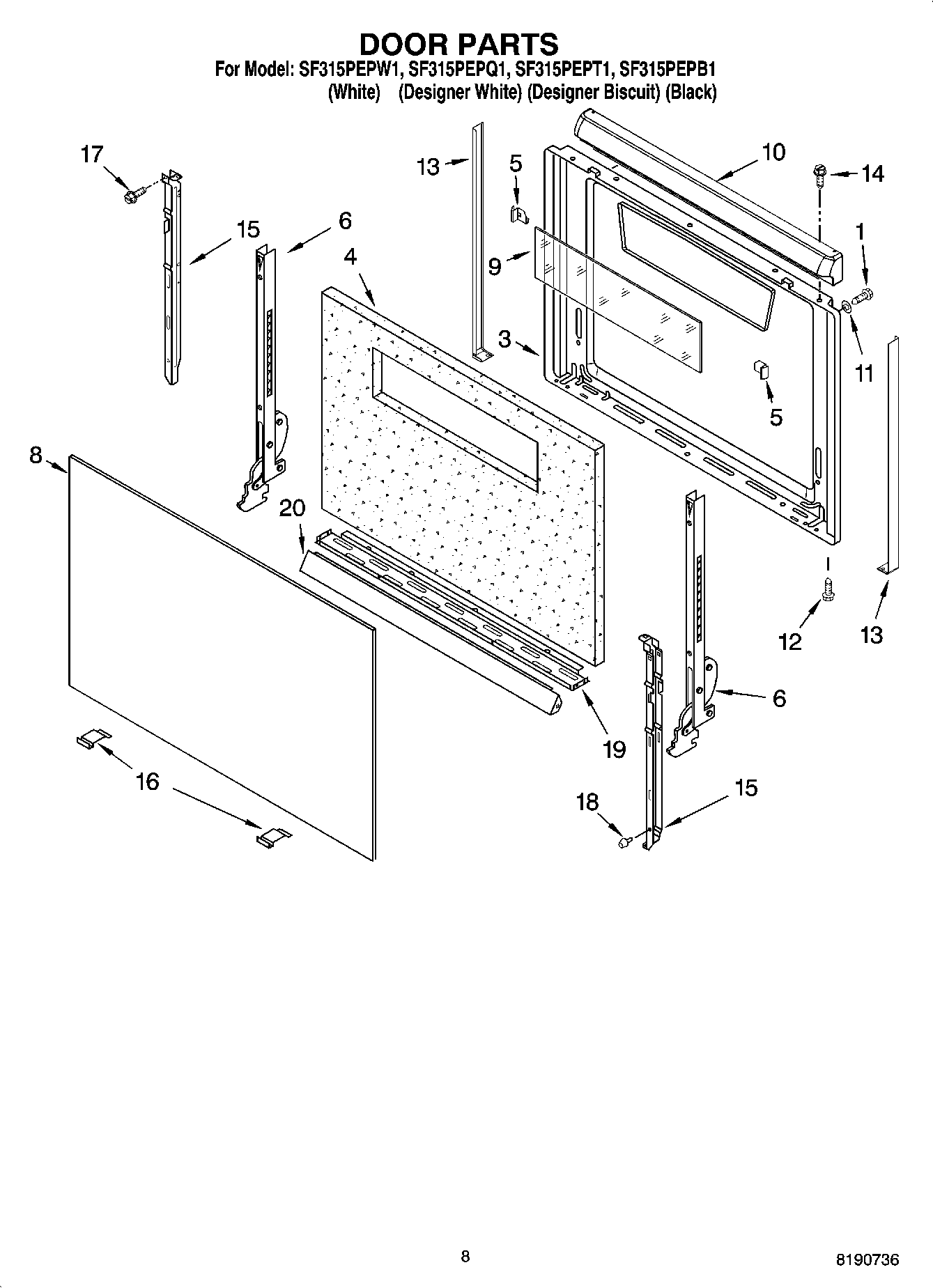

SF315PEPQ1 06 – DOOR PARTS, MISCELLANEOUS PARTS

SF315PEPQ1 06 – DOOR PARTS, MISCELLANEOUS PARTS

Written by

in

SF315PEPQ1 06 – DOOR PARTS, MISCELLANEOUS PARTS

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Wire (14 Ga. 150 c Yellow)
	Wire (12 Ga. 150 c Black)
	Wire (14 Ga. 200 c Brown)
	WPL ARI129792A
	8212471 Whirlpool Oven Paint
	3196696 Whirlpool Clip
	Grease
	WPL 8316781
	WPL ARI129791A
	98015022 Whirlpool Bushing Assembly
	WP3391018 Whirlpool Wire Tie
	CLIP, WIRE
	WPW10477747 Whirlpool Anchor Tip
	WPL ARI129790A
	WPL ARI129789A
	WPL ARI129795A
	WPL 98014538
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Brown)
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
	WPL ARI129794A
	WPL ARI129793A
	350942 Whirlpool Spray Paint
	4392899 Whirlpool Biscuit Touch-Up Paint
	4392901 Whirlpool Biscuit Spray Paint
	511873 Whirlpool Refrigerator Paint
	549193 Whirlpool Refrigerator Power Clamp
	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
	WPL 799832
	WPW10208653 Whirlpool Insulation
	Wire, 25` Roll (Red 14 Ga.)
	285006 Whirlpool Spray
	814381 Whirlpool Pin
	242831 Whirlpool Oven Wire
	Wire (14 Ga. 150 c Blue)
3	98010182 Whirlpool Door Liner
4	Insulation, Door
5	98004952 Whirlpool Oven Clip
5	98004953 Whirlpool Clip
6	Hinge, Door (2)
8	Panel, Door (Black)
8	Panel, Door (Biscuit)
8	Panel, Door
9	Glass, Inner
10	Handle, Oven Door (Black)
10	Handle, Oven Door
10	Handle, Oven Door (Biscuit)
11	Actuator (2)
12	WP59002061 Whirlpool Microwave Screw
13	Side Trim, Door (2) (Black Right)
13	Side Trim, Door (2) (Black Left)
13	Side Trim, Door (2) (Biscuit Right)
13	Side Trim, Door (2) (Biscuit Left)
13	Side Trim, Door (2) (White Left)
13	Side Trim, Door (2) (White Right)
14	WP98008545 Whirlpool Screw
14	WP98008544 Whirlpool Screw Assembly
14	Screw (Biscuit)
15	98004564 Whirlpool Oven Retainer
15	98004629 Whirlpool Oven Retainer
16	98010184 Whirlpool Oven Door Trim
16	WP98010185 Whirlpool Door Trim
16	WP98010187 Whirlpool Range Door Trim
17	WP3400805 Whirlpool Screw Assembly
18	98004227 Whirlpool Oven Bumper
19	98004938 Whirlpool Oven Retainer
20	Insulation, Retainer-Bottom
