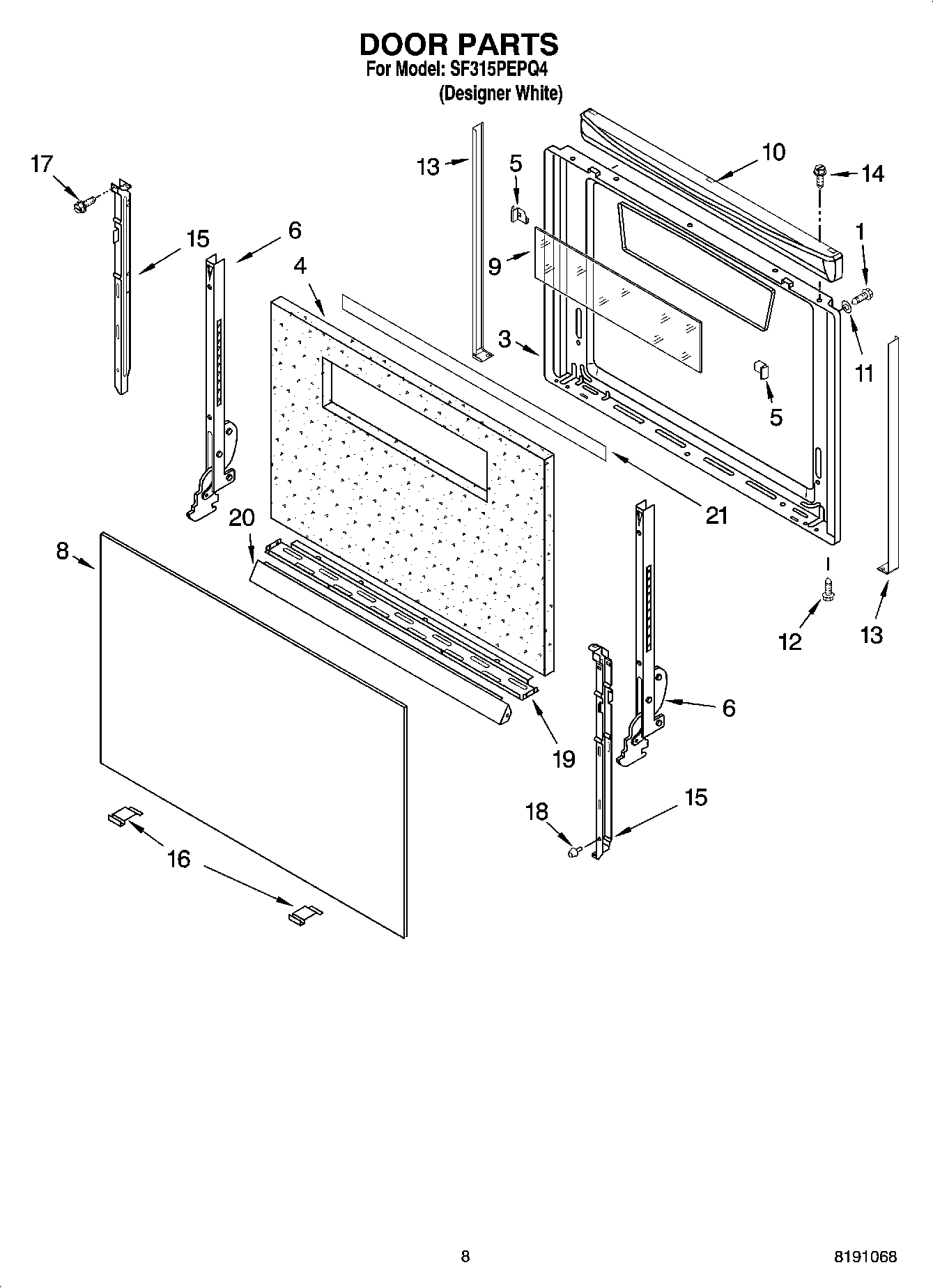

SF315PEPQ4 06 – DOOR PARTS, MISCELLANEOUS PARTS

SF315PEPQ4 06 – DOOR PARTS, MISCELLANEOUS PARTS

Written by

in

SF315PEPQ4 06 – DOOR PARTS, MISCELLANEOUS PARTS

Products

Position	Product
	WPL ARI129823A
	98015022 Whirlpool Bushing Assembly
	WPL 8316781
	Grease
	3196696 Whirlpool Clip
	8212471 Whirlpool Oven Paint
	Wire (14 Ga. 200 c Brown)
	Wire (12 Ga. 150 c Black)
	Wire (14 Ga. 150 c Yellow)
	WP3391018 Whirlpool Wire Tie
	CLIP, WIRE
	WPL ARI129822A
	WPL ARI129821A
	WPL ARI129820A
	WPL ARI129819A
	WPL ARI129818A
	WPL 6610436
	WPL ARI129824A
	WPW10477747 Whirlpool Anchor Tip
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Green)
	4392901 Whirlpool Biscuit Spray Paint
	4392899 Whirlpool Biscuit Touch-Up Paint
	350942 Whirlpool Spray Paint
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	511873 Whirlpool Refrigerator Paint
	549193 Whirlpool Refrigerator Power Clamp
	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
	WPL 799832
	WPW10208653 Whirlpool Insulation
	Wire, 25` Roll (Red 14 Ga.)
	285006 Whirlpool Spray
	814381 Whirlpool Pin
	350930 Whirlpool White Spray Paint
	Wire (14 Ga. 150 c Brown)
	242831 Whirlpool Oven Wire
	Wire (14 Ga. 150 c Blue)
1	WP8533841 Whirlpool Screw
3	98010182 Whirlpool Door Liner
4	Insulation, Door
5	98004952 Whirlpool Oven Clip
5	98004953 Whirlpool Clip
6	Hinge, Door (2)
8	Panel, Door
9	WP98006801 Whirlpool Door Glass
10	Handle, Oven Door
11	Actuator (2)
12	WP59002061 Whirlpool Microwave Screw
13	Side Trim, Door (Right Hand)
13	Side Trim, Door (Left Hand)
14	WP98008544 Whirlpool Screw Assembly
15	98004629 Whirlpool Oven Retainer
15	98004564 Whirlpool Oven Retainer
16	WP98010185 Whirlpool Door Trim
17	WP3400805 Whirlpool Screw Assembly
18	98004227 Whirlpool Oven Bumper
19	98004938 Whirlpool Oven Retainer
20	Insulation, Retainer-Bottom
21	Retainer, Upper (2)
