SF316PERW0 05 – OVEN DOOR AND BROILER

SF316PERW0 05 – OVEN DOOR AND BROILER

Written by

in

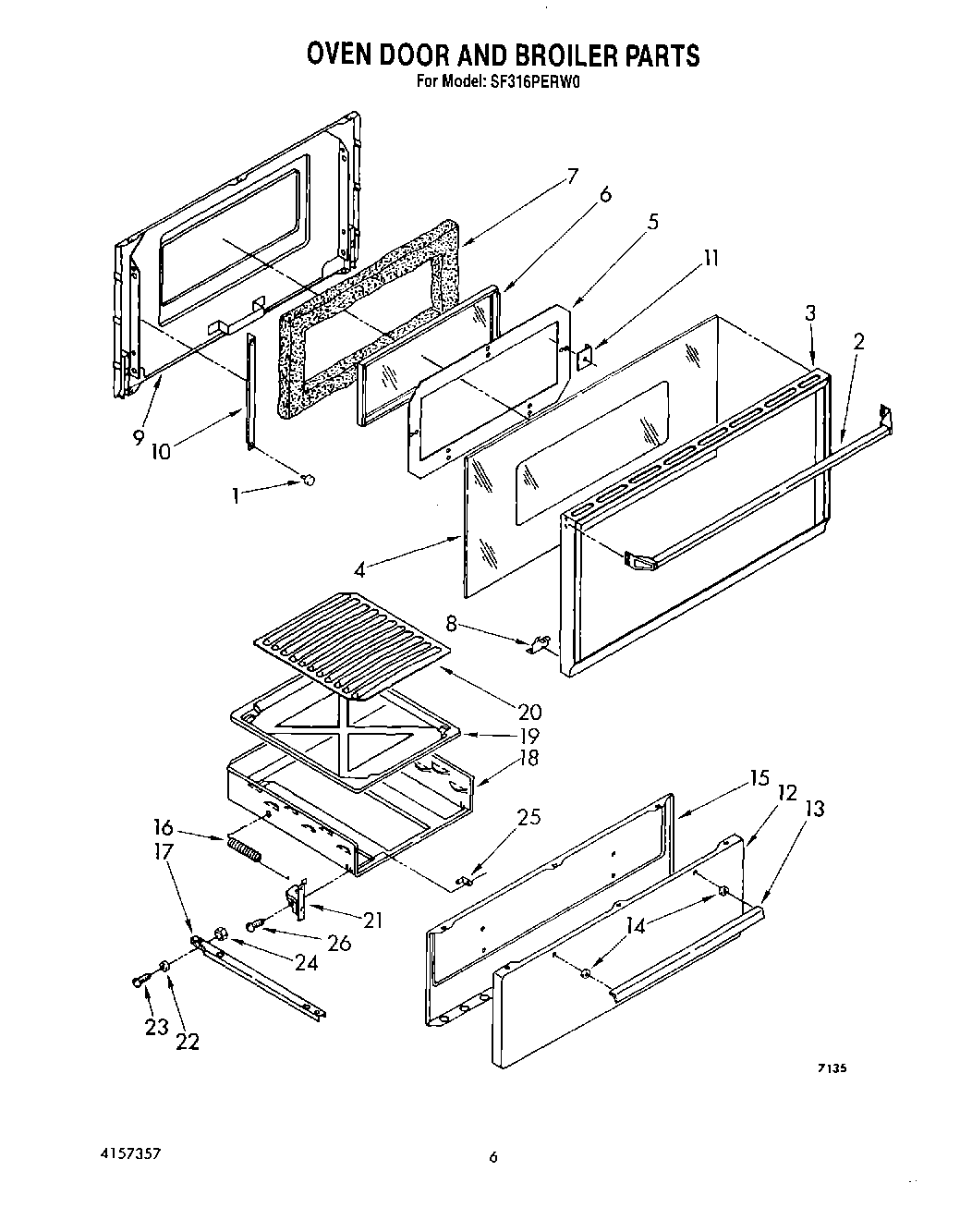

SF316PERW0 05 – OVEN DOOR AND BROILER

Products

PositionProduct
1Bumper, Rubber (6)
2Screw, 8-18 X 3/8 (4)
2Handle, Door
3Frame, Door
4Glass
5Baffle
6Window Assy
7Insulation
8Support, Glass (Right Hand)
8SCREW
8Support, Glass
8Speed Clip (4)
9Liner, Door
10Support, Glass (2)
11Plate (2)
12Panel, Broiler (Almond)
12Panel, Broiler (Platinum)
12Panel, Broiler (Toast)
12Panel, Broiler (White)
13Screw, 10-12 X 5/8 (2)
13Washer (2)
13Handle
14Spacer (4)
15Liner, Broiler Door
16Spring (2)
17Track, Upper (2)
18Liner, Broiler
194396923 Whirlpool Broil Pan Set Gray Porcelain
20Grid
21Hinge, Door (R.H.)
21WP308685 Whirlpool Microwave Screw
21Hinge, Door (L.H.)
22Roller (2)
23Pin, Roller (2)
24W10080180 Whirlpool Nut
25Plate (2)
26Screw (2)
