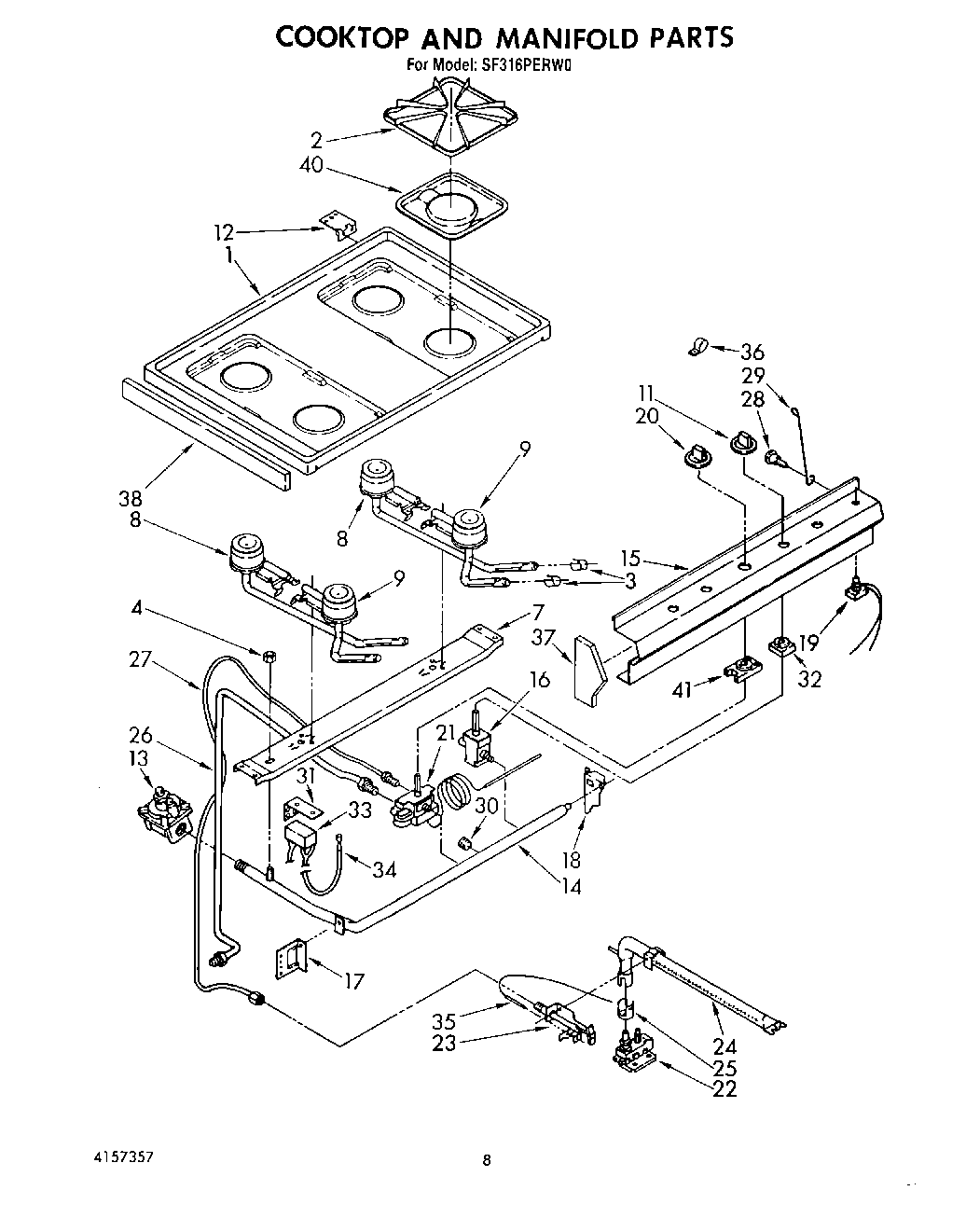

SF316PERW0 06 – COOKTOP AND MANIFOLD , LITERATURE AND OPTIONAL

Products

Position	Product
	WPL LIT786735
	WPL LIT4157357
	WPL LIT786769
	Guide, Cooking
1	Cooktop (Platinum)
1	Cooktop (White)
1	Cooktop (Almond)
1	Cooktop (Toast)
2	Grate (4)
3	Shutter, Air (4)
4	Nut, Hex
7	Support, Burner
8	Burner, Rear (2)
9	Burner, Front (2)
9	Screw, 10-12 X 3/8 (2)
11	WP4179282 Whirlpool Knob
12	SCREW
12	Hinge, Maintop (2)
12	Speed Clip (4)
13	Regulator, Pressure
14	Manifold
15	Panel, Manifold
16	Valve, 180~ (4)
17	Support, Manifold (L.H.)
18	Support, Manifold (R.H.)
18	WP308685 Whirlpool Microwave Screw
19	Switch, Oven Light (2)
20	Knob, Thermostat
21	Thermostat
22	WP3387230 Whirlpool Screw
22	Valve, Safety
23	Pilot
23	Screw, 10-24 X 1/4 (1)
24	Burner, Oven
25	Shutter, Burner
26	Tubing 3/8“ (Thermostat To Safety Valve)
27	Tubing 3/16“ (Thermostat To Pilot)
27	Fitting Kit
28	Screw
29	Rod, Support
30	W10295523 Whirlpool Plug
31	Plate, Spark Module
32	WP4157180 Whirlpool Surface Burner Ignition Switch
33	Module, Spark
34	Ignitor (R.H.)
34	Ignitor (L.H.)
35	Ignitor, Oven
36	Strain Relief
37	Endcap (L.H.)
37	Endcap (R.H.)
38	WPL 4157189
40	WP786333 Whirlpool Drip Bowl
41	FOIL, ALUMINUM OVEN (18“ X 25 )
41	WPW10208653 Whirlpool Insulation
41	WP878009 Whirlpool Igniter Switch
