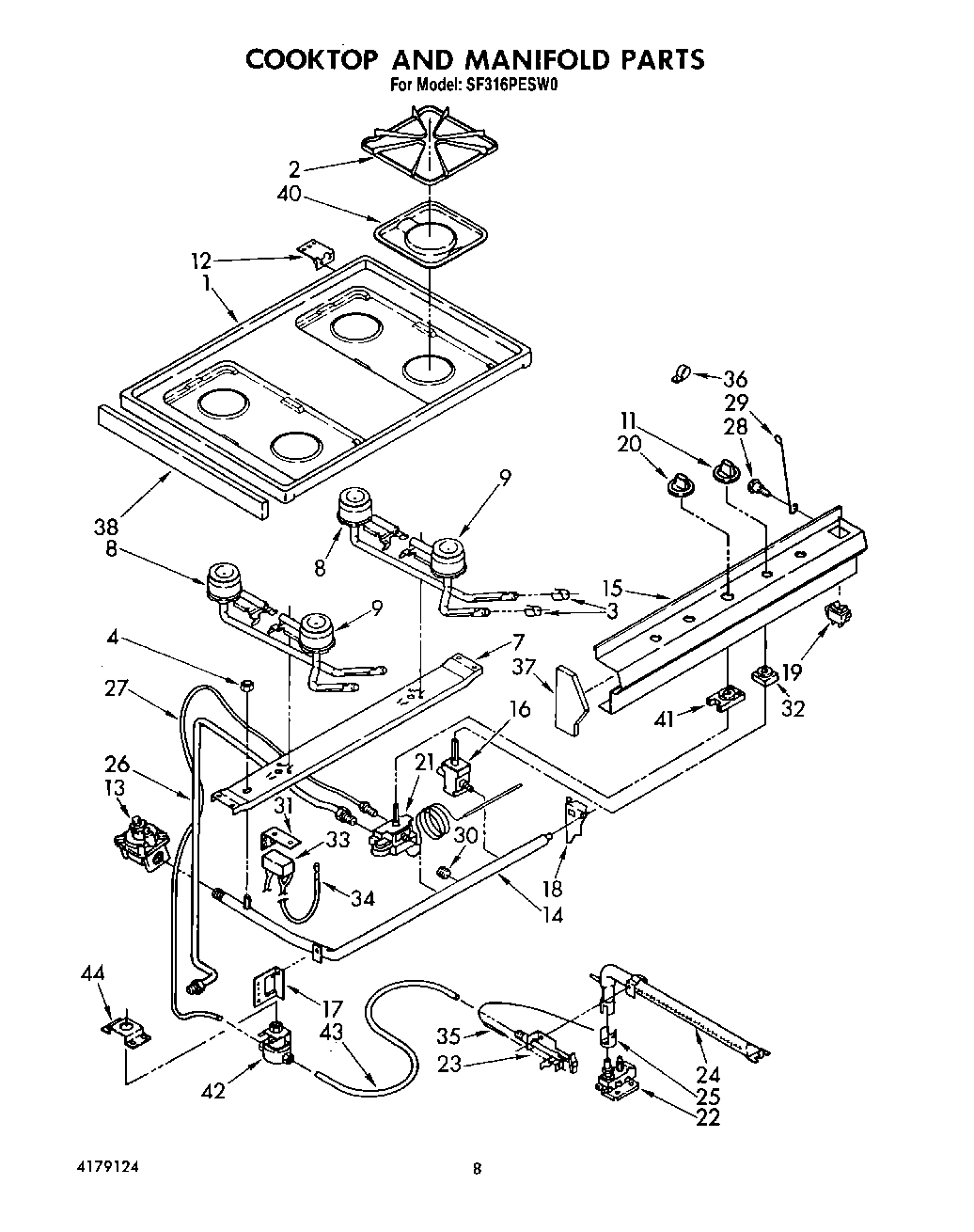

SF316PESW0 06 – COOKTOP AND MANIFOLD, LIT/OPTIONAL

SF316PESW0 06 – COOKTOP AND MANIFOLD, LIT/OPTIONAL

Written by

in

SF316PESW0 06 – COOKTOP AND MANIFOLD, LIT/OPTIONAL

Products

PositionProduct
WPL LIT4179124
Guide, Cooking
WPL LIT786735
WPL LIT4179034
1Cooktop (White)
1Cooktop (Toast)
1Cooktop (Almond)
1Cooktop (Platinum)
2Grate (4)
3Shutter, Air (4)
4Nut, Hex
7Support, Burner
8Burner, Rear (2)
9Burner, Front (2)
9Screw, 10-12 X 3/8 (2)
11WP4179282 Whirlpool Knob
12Hinge, Maintop (2)
12Speed Clip (4)
12SCREW
13Regulator, Pressure
14Manifold
15Panel, Manifold
16Valve, 180~ (4)
17Support, Manifold (L.H.)
18Support, Manifold (R.H.)
18WP308685 Whirlpool Microwave Screw
19Switch, Oven Light (2)
20WPY07506601 Whirlpool Thermal Knob
21Thermostat
22WP3387230 Whirlpool Screw
22Valve, Safety
23Screw, 10-24 X 1/4 (1)
23Pilot
24Burner, Oven
25Shutter, Burner
26Tubing 3/8“ (Thermostat To Safety Valve)
27Tubing, (Thermostat To Solenoid)
28Screw
29Rod, Support
30W10295523 Whirlpool Plug
31Plate, Spark Module
32WP4157180 Whirlpool Surface Burner Ignition Switch
33Module, Spark
34Ignitor (R.H.)
34Ignitor (L.H.)
35Ignitor, Oven
36Strain Relief
37Endcap (L.H.)
37Endcap (R.H.)
38WPL 4157189
40WP786333 Whirlpool Drip Bowl
41WP878009 Whirlpool Igniter Switch
42Valve, Solenoid
43Tubing, (Solenoid to Burner Pilot)
44FOIL, ALUMINUM OVEN (18“ X 25 )
44WPW10208653 Whirlpool Insulation
44Bracket, Solenoid
