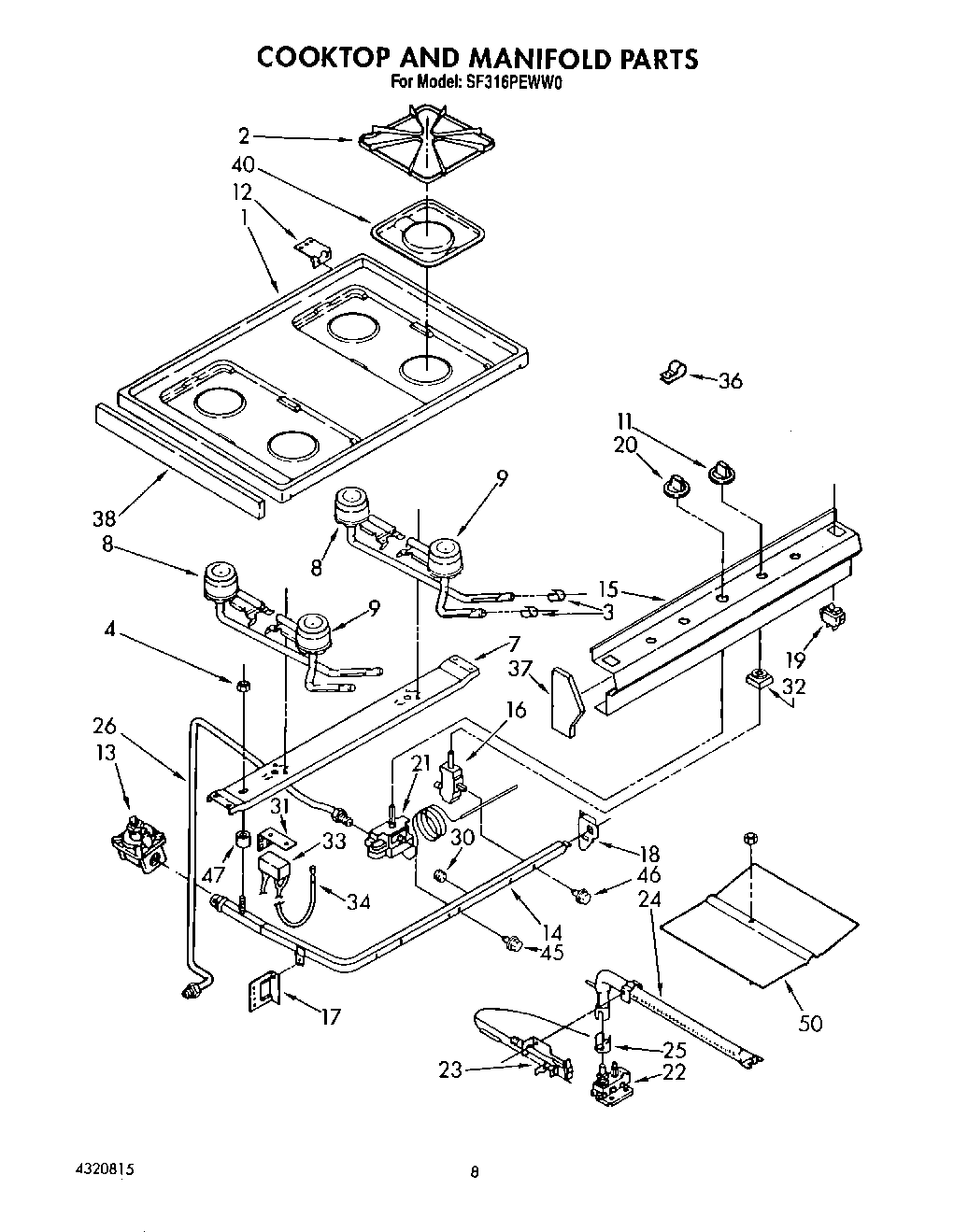

SF316PEWN0 06 – COOK TOP AND MANIFOLD , LIT/OPTIONAL

Products

Position	Product
	WPL LIT4320815
	WPL LIT4315705
	Instuctions, Installation
	Guide, Cooking
1	Cooktop (White)
1	Cooktop (Almond)
2	Grate (4)
3	Shutter, Air (4)
4	Grate (4)
7	Support, Burner
8	Burner, Rear (2)
9	Burner, Front (2)
11	WP4320580 Whirlpool Knob Assembly
12	Bracket, Support (2)
13	Regulator, Pressure
14	Manifold
15	Panel, Manifold
16	Valve, 180~ (4) (Includes Ill. No. 46)
17	Support, Manifold (L.H.)
18	WP308685 Whirlpool Microwave Screw
18	Support, Manifold (R.H.)
19	Switch, Oven Light (2)
20	Knob, Thermostat
21	Thermostat
22	Valve, Safety
23	Pilot
23	Screw, 10-12 X 3/8 (2)
24	Burner, Oven
25	Shutter, Burner
26	Burner, Oven
30	W10295523 Whirlpool Plug
31	Plate, Spark Module
32	WP4157180 Whirlpool Surface Burner Ignition Switch
33	Module, Spark
34	Ignitor (L.H.)
34	Ignitor (R.H.)
36	Strain Relief
37	Endcap (R.H.)
37	Endcap (L.H.)
38	Trim, Cooktop (2)
40	WPY0060872 Whirlpool Drip Pan
45	Screw, Thermostat Mounting (2)
46	Bolt, Valve Mounting
47	Spacer, Manifold
48	Switch, Oven Light
49	Bracket, Ignitor
50	Support, Rear (2)
50	WPW10208653 Whirlpool Insulation
50	FOIL, ALUMINUM OVEN (18“ X 25 )
50	Spreader, Flame
