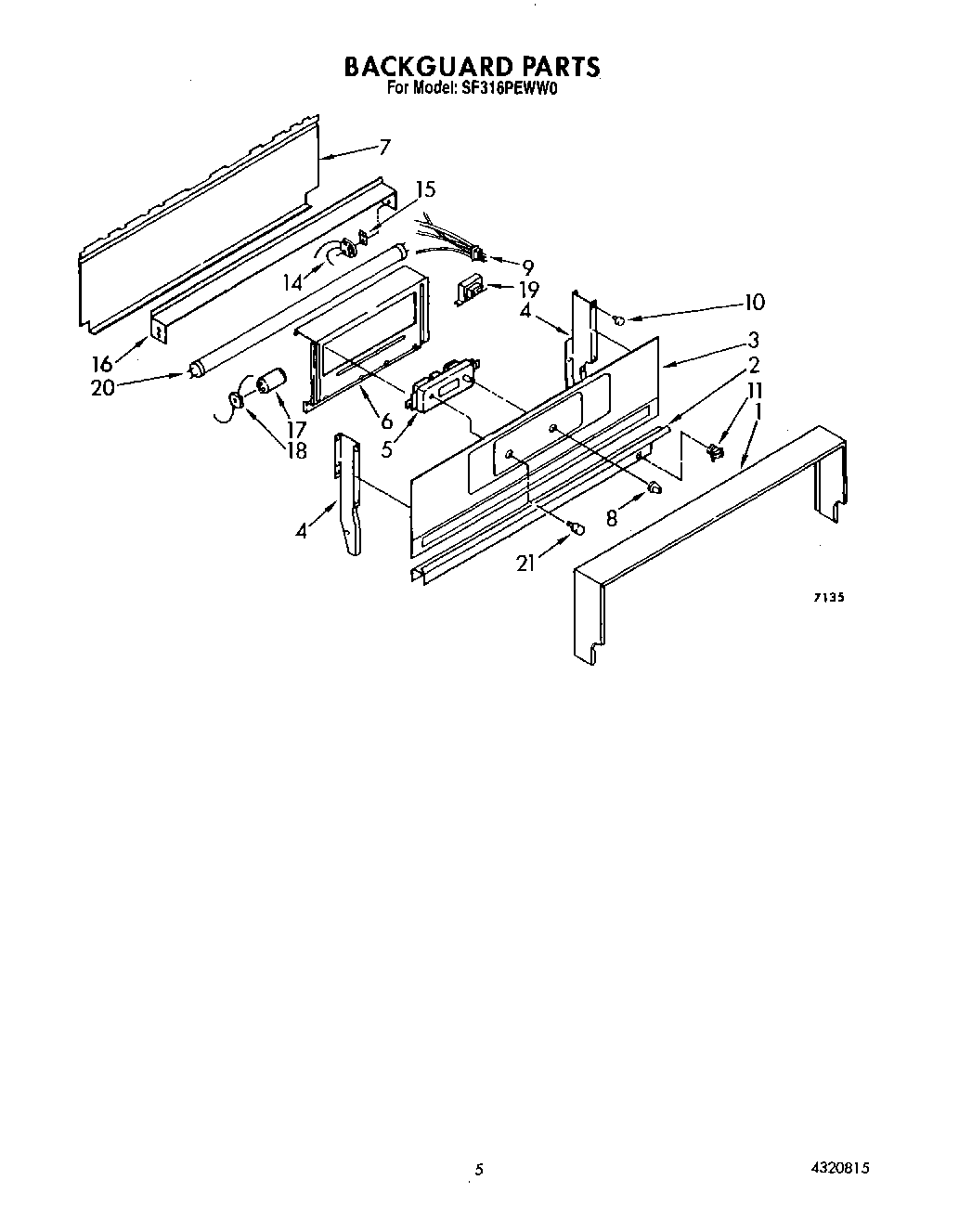

SF316PEWW0 04 – BACKGUARD

Products

Position	Product
1	Frame
2	Screw, 10-12 X 1/2 (4)
2	Bottom, Backugard
3	Glass, Backguard
4	Screw, 10-32 X 1/2 (1)
4	Support, Backguard (Left Hand)
4	Support, Backguard (Right Hand)
5	Clock
6	Bracket, Clock
7	Screw, 10-12 X 3/8 (2)
7	Panel, Rear
8	Knob, Clock
9	Block, Disconnect
10	Bumper, Rubber (6)
11	Strain Relief
14	Socket, Light (2)
15	Spacer, Light (4)
16	Bracket, Support
17	Starter, Light
18	Base, Light
19	Ballast
20	Lamp, Fluorscent
21	Knob, Clock
