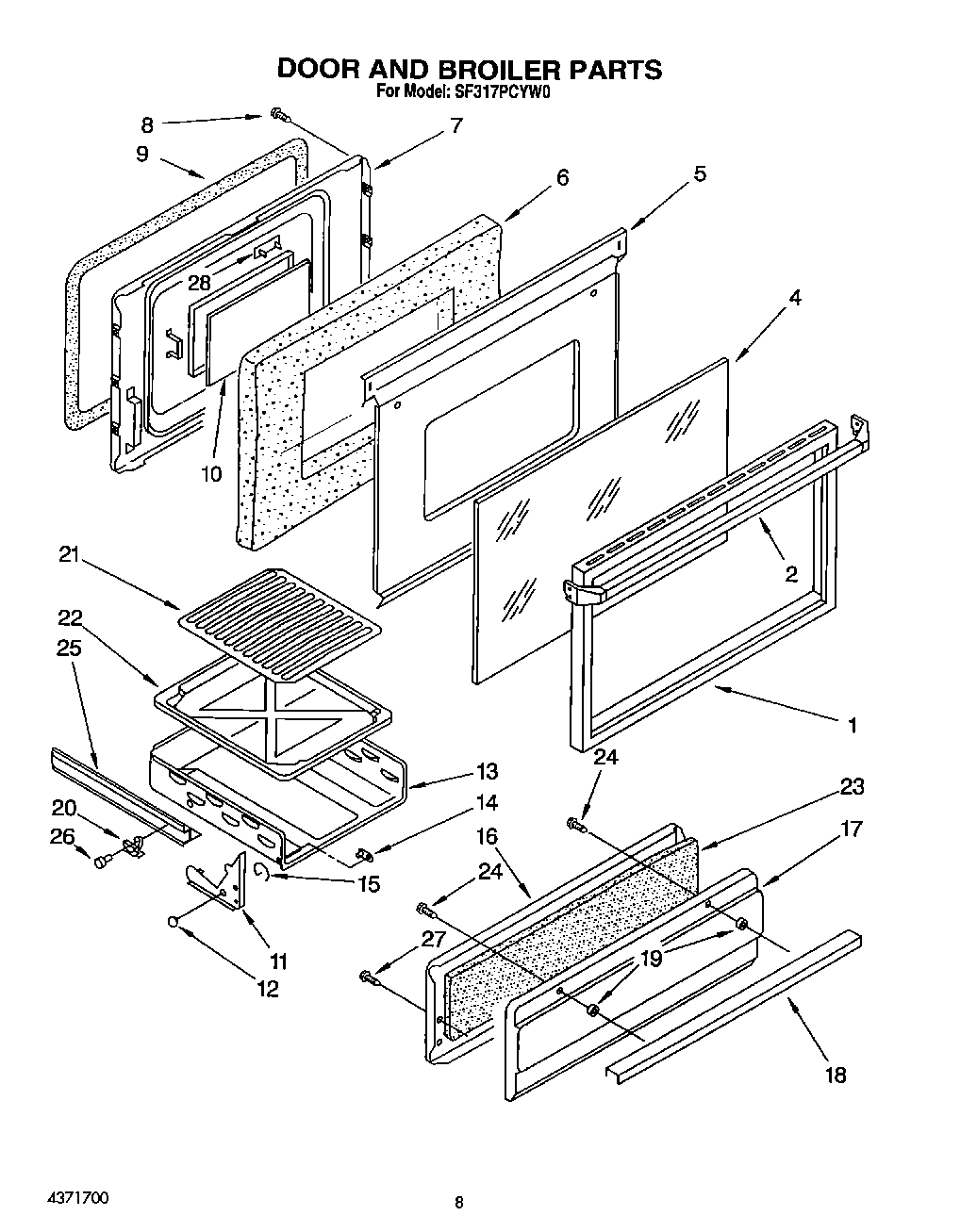

SF317PCYN0 07 – DOOR AND BROILER

Products

Position	Product
1	Trim, Oven Door (Almond)
1	Trim, Oven Door
2	Handle, Door
2	Handle, Door
4	Glass, Door (Almond)
4	Glass, Door
5	Shield, Heat
5	Shield, Heat
6	Insulation
7	Liner, Oven Door
8	Screw, Handle
9	Seal, Door
10	Glass, Inner
11	Bracket, Hinge (L.H.)
11	Bracket, Hinge (R.H.)
12	Fastener, Push Nut
13	Body, Broiler
14	Pin, Hinge (2)
15	Spring, Broiler (R.H.)
15	Spring, Broiler (L.H.)
16	Liner, Broiler Door
17	Panel, Drawer (Almond)
17	Panel, Drawer (White)
18	Handle, Utility Drawer
19	Spacer, Handle
20	Glide, Drawer (6)
21	Insert, Broiler Pan
22	Pan, Broiler
23	Insulation
24	Screw, Handle (2)
25	Channel, Broiler
26	Button, Glide (2)
27	Screw, Panel (4)
28	Cover, Door
