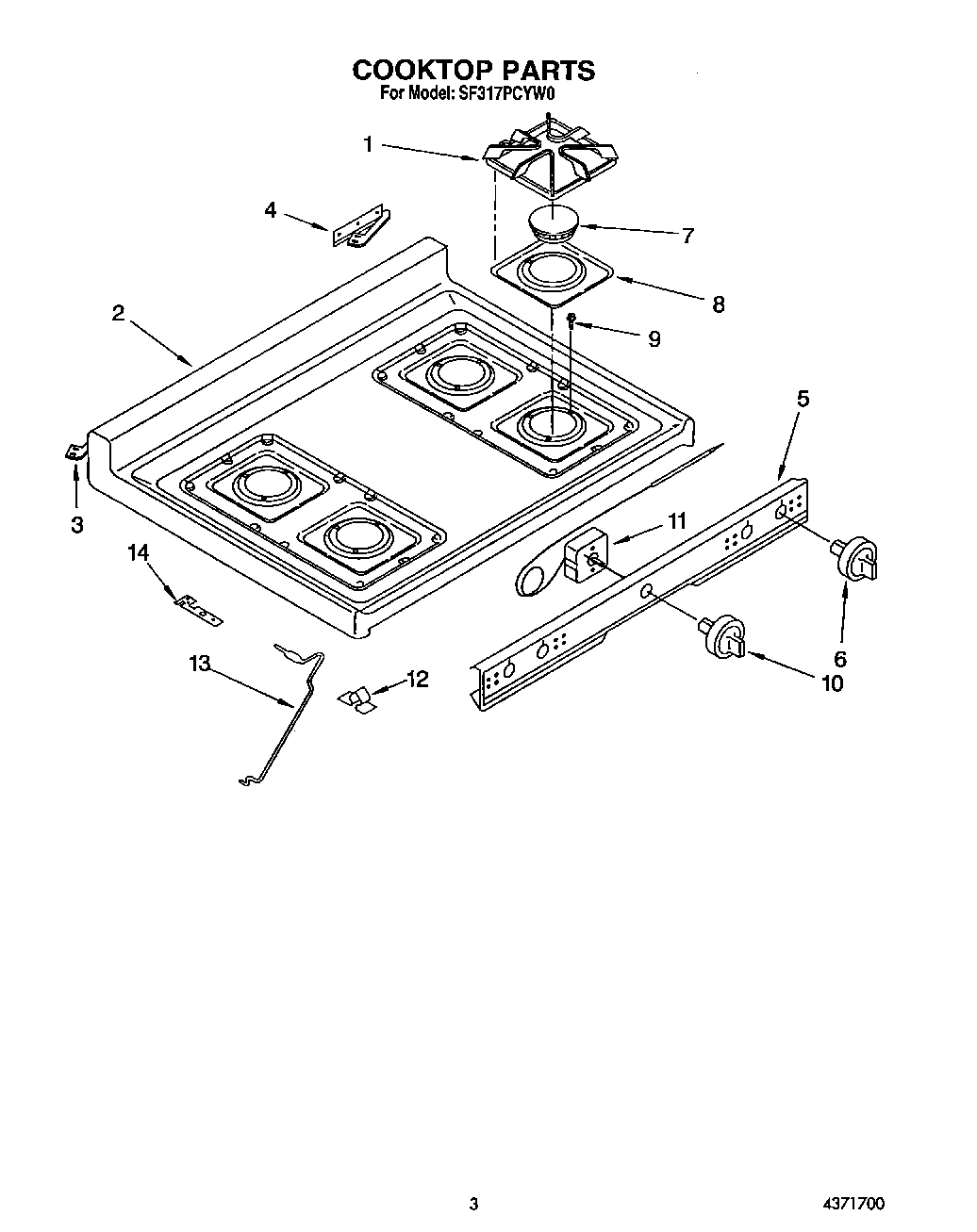

SF317PCYW0 03 – COOKTOP, LIT/OPTIONALadmin2025-04-26T11:27:04+00:00SF317PCYW0 03 – COOKTOP, LIT/OPTIONAL
Products
| Position | Product |
|---|
| List, Repair Parts |
| Guide, Use & Care |
| Instructions, Installation |
| 1 | Grate |
| 2 | Top, Main (Almond) |
| 2 | Top, Main (White) |
| 3 | Bracket, Hinge (Left Side) |
| 4 | Bracket, Hinge (Right Side) |
| 5 | Panel, Manifold |
| 6 | Knob, Control (4) |
| 7 | Cap, Burner (4) |
| 8 | Pan, Burner (4) |
| 9 | Screw, Burner Mtg. |
| 10 | Knob, Thermostat |
| 11 | Thermostat, Oven |
| 12 | Clip, Top Mtg. |
| 13 | Rod, Support Top |
| 14 | Bracket, Mounting (L.H.) |
| 14 | Bracket, Mounting (R.H.) |
