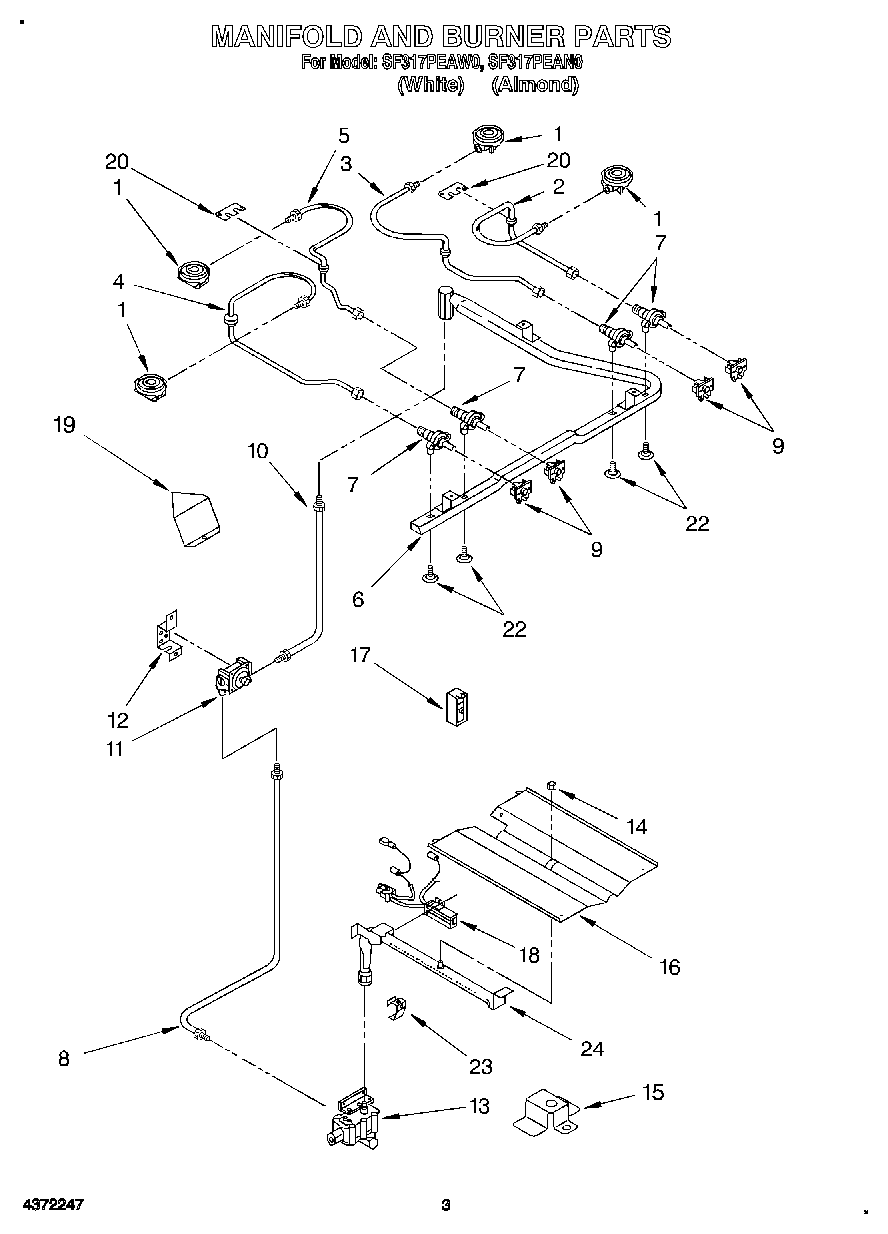

SF317PEAN0 03 – MANIFOLD AND BURNER, OPTIONAL

SF317PEAN0 03 – MANIFOLD AND BURNER, OPTIONAL

Written by

in

SF317PEAN0 03 – MANIFOLD AND BURNER, OPTIONAL

Products

PositionProduct
1Burner, (4)
2Tubing, Burner (RF)
3Tubing, Burner (RR)
4Tubing, Burner (LF)
5Tubing, Burner (LR)
6Pipe, Manifold
7Valve, Top (4)
8Tubing, Valve
9Switch, Ignitor (4)
10Tubing, Regulator To Manifold Pipe
11Control, Regulator
12Bracket, Regulator
13Valve, Safety
14Nut, Hex (2)
15Bracket, Valve
16Baffle, Oven Burner
17Ignitor Module
18814269 Whirlpool Oven Flat Igniter
19Shield, Ignitor
20Plate, Burner
22WP3186217 Whirlpool Screw
23Bracket, Burner
24Burner, Oven
24Conversion Kit (Natural Gas To L.P. Gas)
