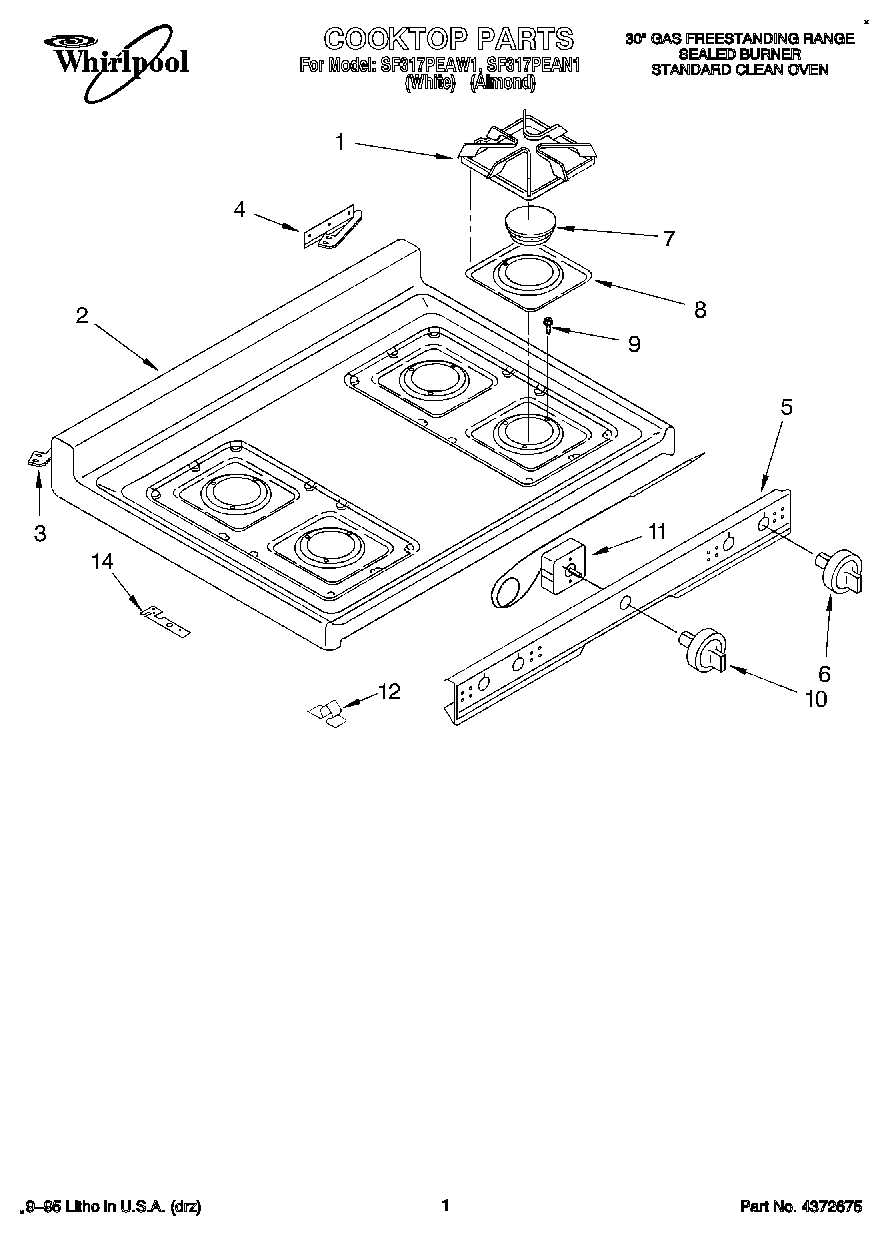

SF317PEAN1 01 – COOKTOP, LITERATURE

SF317PEAN1 01 – COOKTOP, LITERATURE

Written by

in

SF317PEAN1 01 – COOKTOP, LITERATURE

Products

PositionProduct
Instructions, Installation
Guide, Use & Care
1Grate
2Top, Main (Almond)
2Top, Main (White)
3Bracket, Hinge (Left Side)
4Bracket, Hinge (Right Side)
5Panel, Manifold
6Knob, Control (4)
7Cap, Burner (4)
8Pan, Burner (4)
9Screw, Burner Mtg.
10Knob, Thermostat
11Thermostat, Oven
12Clip, Top Mtg.
14Bracket, Mounting (L.H.)
14Bracket, Mounting (R.H.)
