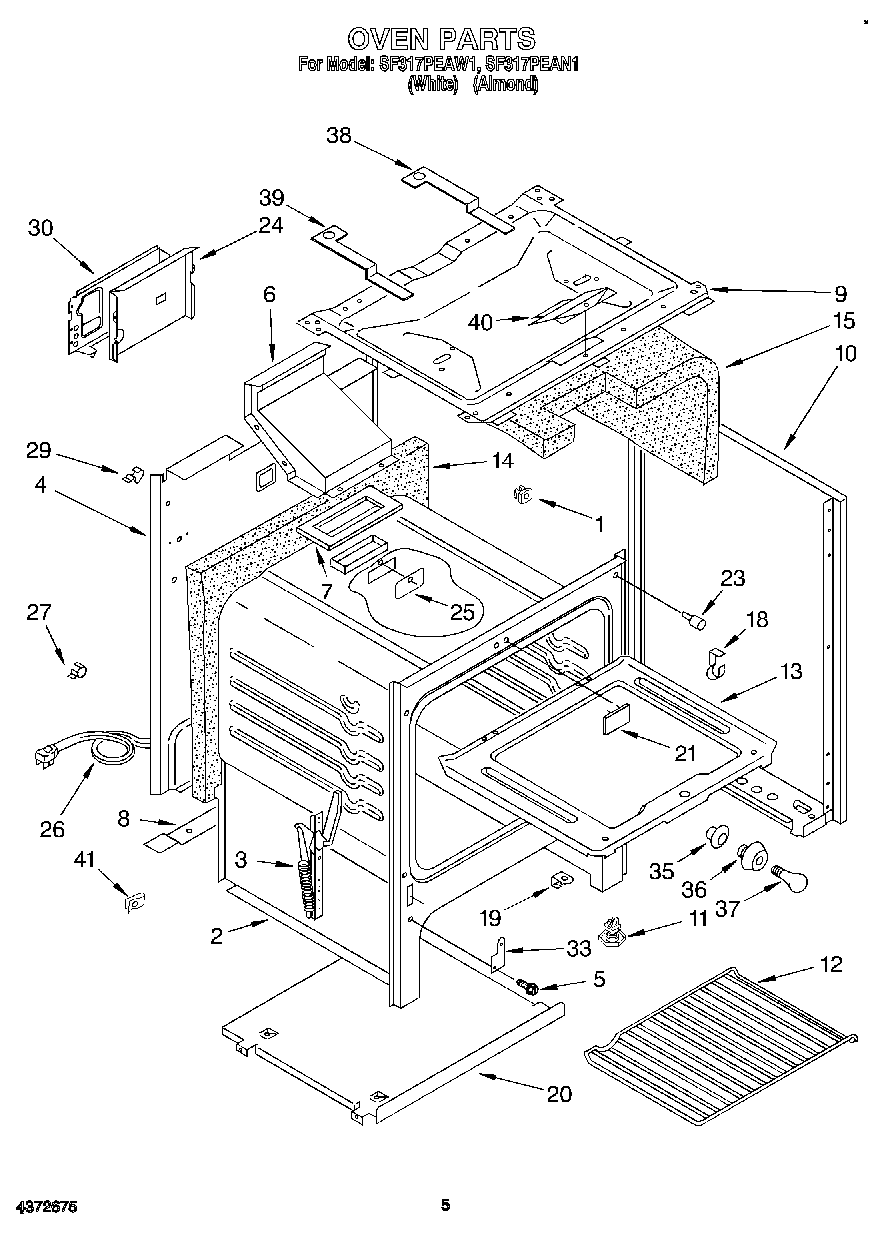

SF317PEAN1 04 – OVEN

Products

Position	Product
1	Spacer, Body (8)
2	Liner, Oven (Not a Serviceable Part)
3	Hinge, Oven Door
4	Back, Main
5	Screw, Oven Bottom
6	Flue Box
7	Gasket, Flue
8	Bracket, Anti-Tip
9	Burner Box
10	Panel, Side (Almond RH)
10	Panel, Side (White RH)
10	Panel, Side (White LH)
10	Panel, Side (Almond LH)
11	Screw, Leveler (4)
12	Rack, Oven (2)
13	Bottom, Oven
14	Insulation, Oven Back
15	WPW10208653 Whirlpool Insulation
18	Clip, Thermo Bulb
19	Support, Oven Bottom
20	Base, Broiler
21	Cover, Front
23	Bumper, Front (4)
24	Shield, Flue
25	Plate, Cover
26	Cord, Power
27	Fastener, Cord
29	Clip, Wire
30	Shield, Module
33	Cover, Hinge
35	W10856866 Whirlpool Light Socket
36	Housing, Oven Light
37	RANGE ONLY 40W 120V APPL BULB
38	Bracket, Top RH
39	Bracket, Top LH
40	Plate, Cover
41	Fastener, U Type
