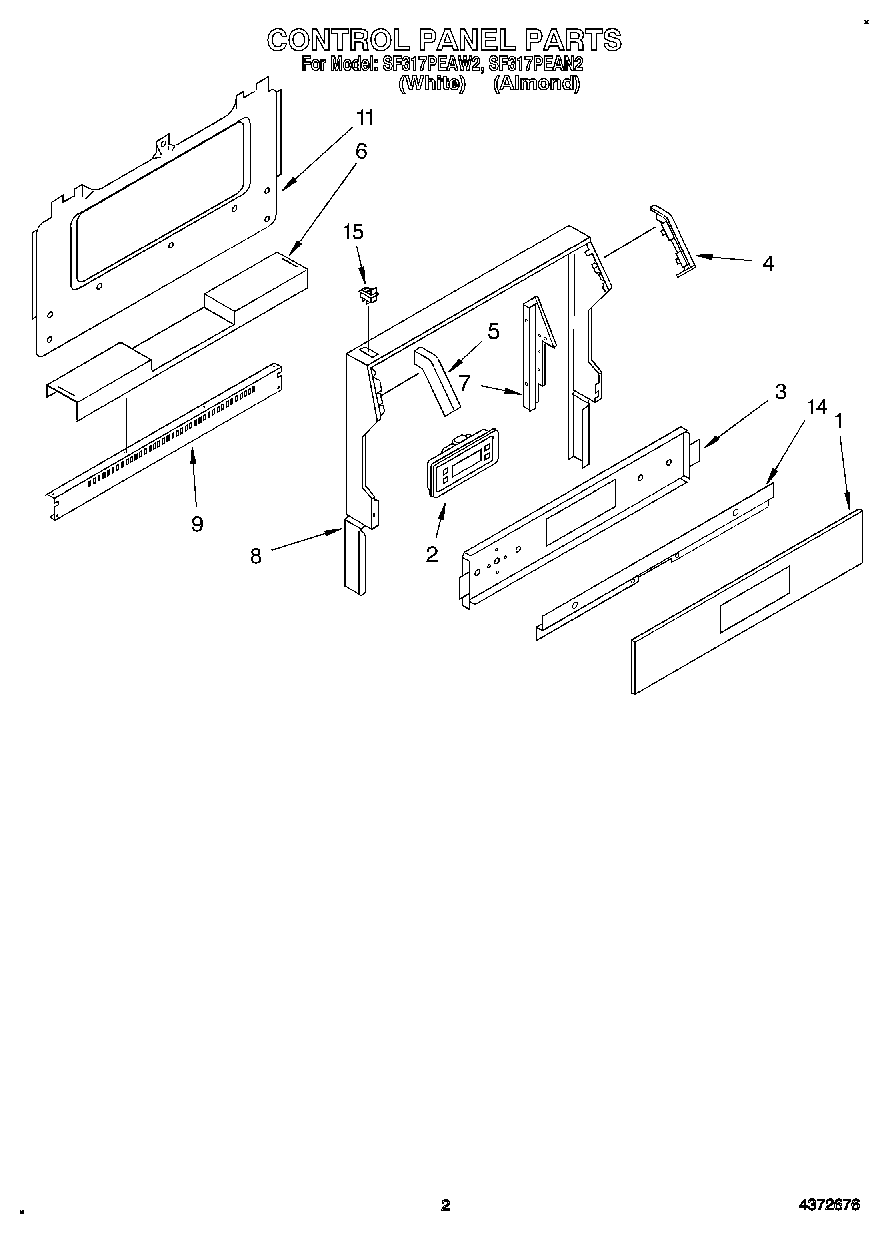

SF317PEAN2 02 – CONTROL PANEL

Products

Position	Product
1	Panel, Control
2	Clock, Electronic
3	Plate, Timer Mounting
4	Cap, End (R.H.)
5	Cap, End (L.H.)
6	Deflector, Flue
7	Support, Control Panel (R.H.)
7	Support, Control Panel (L.H.)
8	Trim, Wrapper
9	Trim, Vent
11	Shield, Rear Wall
14	Retainer, Timer
15	Switch, Rocker
