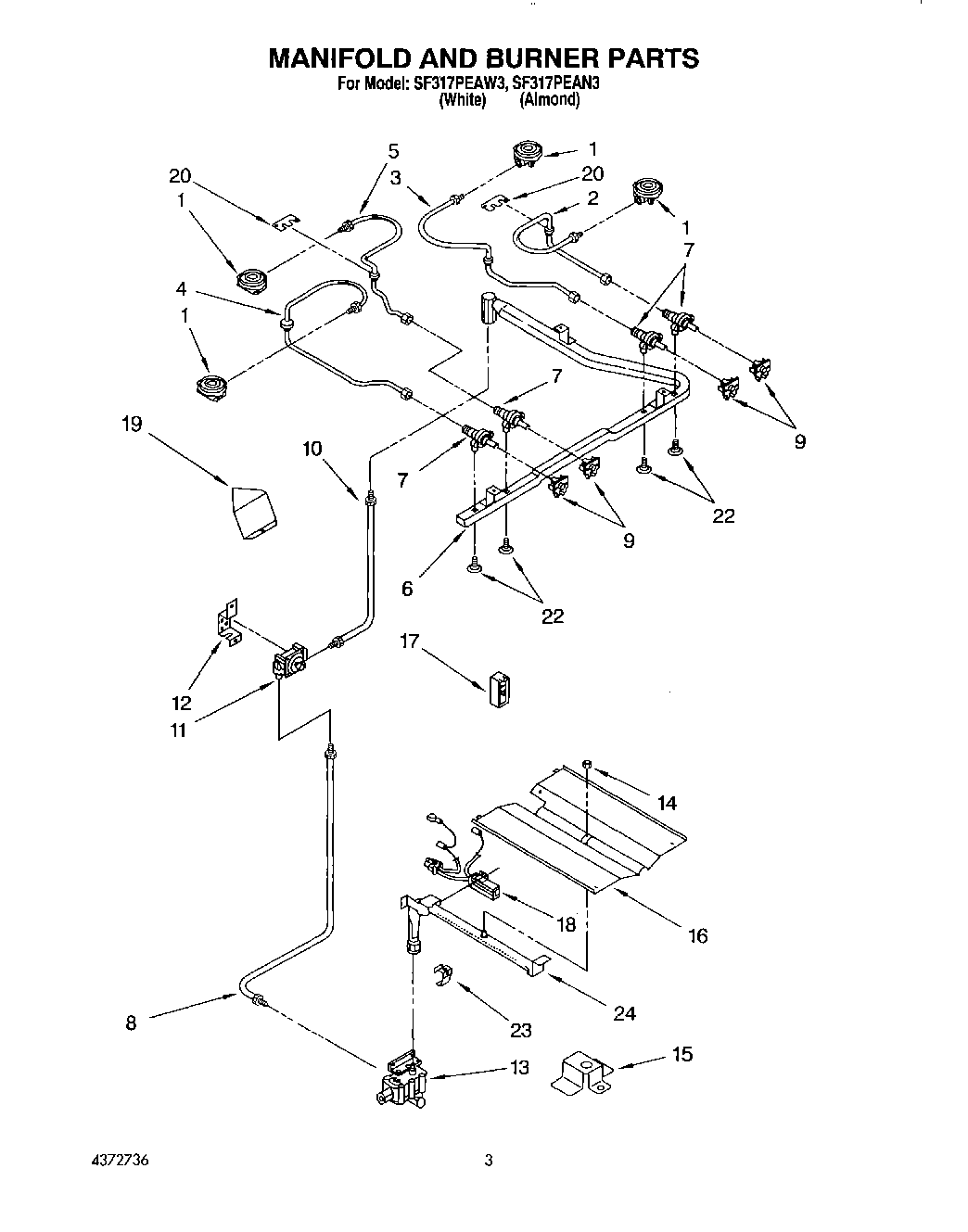

SF317PEAN3 03 – MANIFOLD AND BURNER

Products

Position	Product
1	Burner, (4)
2	Tubing, Burner (RF)
3	Tubing, Burner (RR)
4	Tubing, Burner (LF)
5	Tubing, Burner (LR)
6	Pipe, Manifold
7	Valve, Top Burner
8	Tubing, Valve
9	Switch, Ignitor (4)
10	Tubing, Regulator To Manifold Pipe
11	Control, Regulator
12	Bracket, Regulator
13	Valve, Safety
14	Nut, Hex (2)
15	Bracket, Valve
16	Baffle, Oven Burner
17	Ignitor Module
18	814269 Whirlpool Oven Flat Igniter
19	Shield, Ignitor
20	Plate, Burner
22	WP3186217 Whirlpool Screw
23	Bracket, Burner
24	Burner, Oven
24	Conversion Kit (Natural Gas To L.P. Gas)
