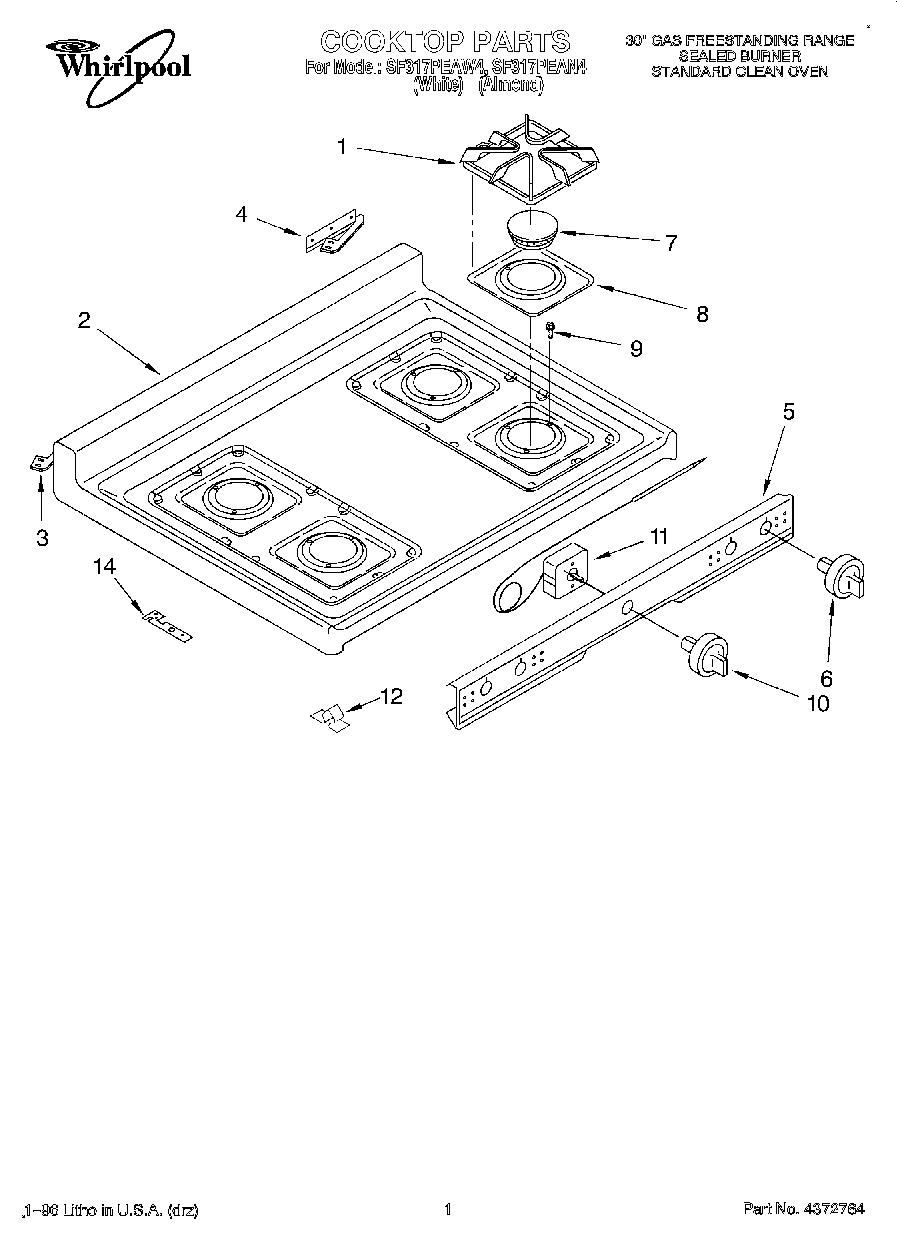

SF317PEAN4 01 – COOKTOP, LITERATURE

Products

PositionProduct
Instructions, Installation
Guide, Use & Care
1Grate, Burner (4)
2Top, Main (Almond)
2Top, Main (White)
3Bracket, Hinge (Left Side)
4Screw
4Bracket, Hinge (Right Side)
5Panel, Manifold
6Knob, Control (4)
7Cap, Burner (4)
8Pan, Burner (4)
9Screw, Burner Mtg.
10Knob, Thermostat
11Thermostat, Oven
12Clip, Top Mtg.
14Bracket, Mounting (L.H.)
14Bracket, Mounting (R.H.)
