SF317PEAW4 01 – COOKTOP, LITERATURE

SF317PEAW4 01 – COOKTOP, LITERATURE

Written by

in

SF317PEAW4 01 – COOKTOP, LITERATURE

Products

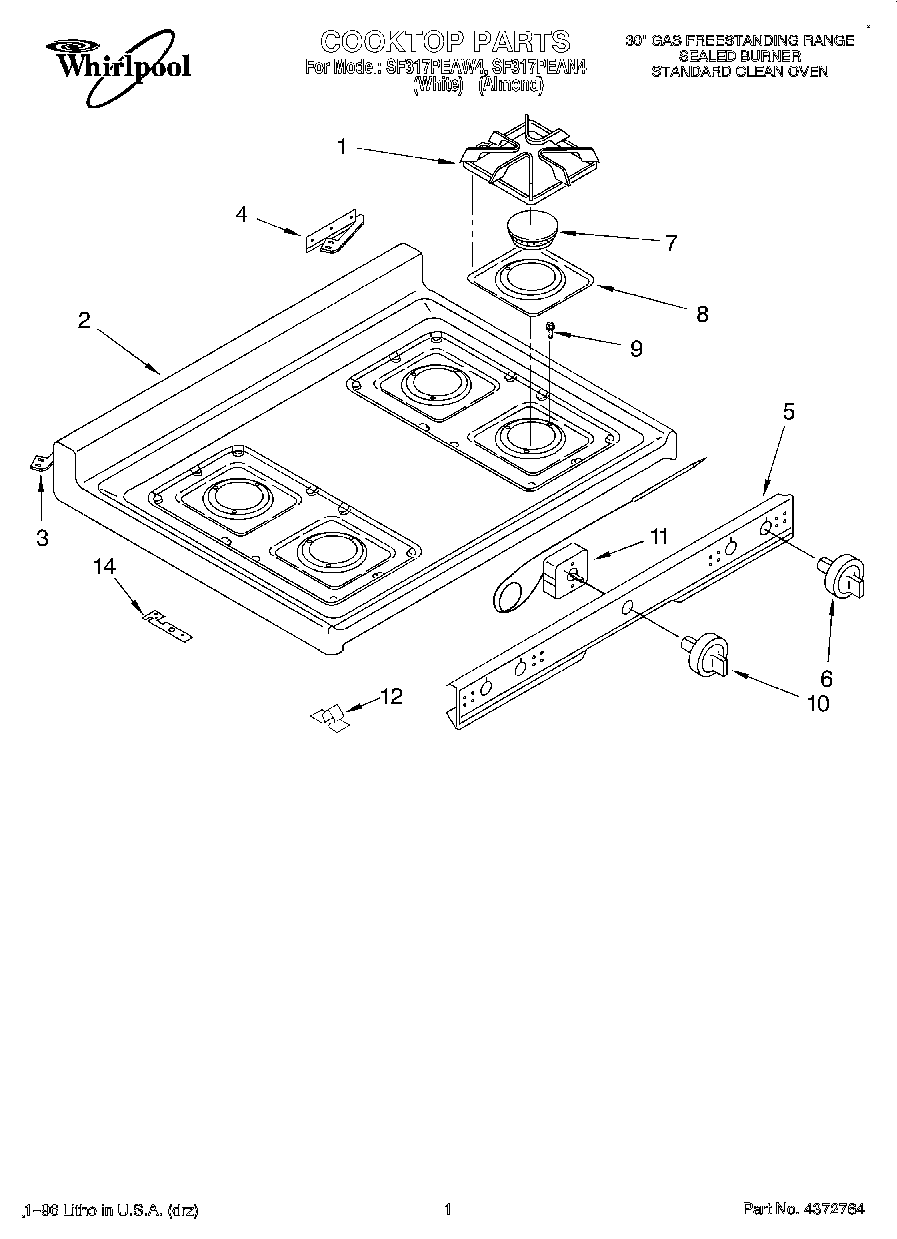

PositionProduct
Instructions, Installation
Guide, Use & Care
1Grate, Burner (4)
2Top, Main (Almond)
2Top, Main (White)
3Bracket, Hinge (Left Side)
4Screw
4Bracket, Hinge (Right Side)
5Panel, Manifold
6Knob, Control (4)
7Cap, Burner (4)
8Pan, Burner (4)
9Screw, Burner Mtg.
10Knob, Thermostat
11Thermostat, Oven
12Clip, Top Mtg.
14Bracket, Mounting (L.H.)
14Bracket, Mounting (R.H.)
