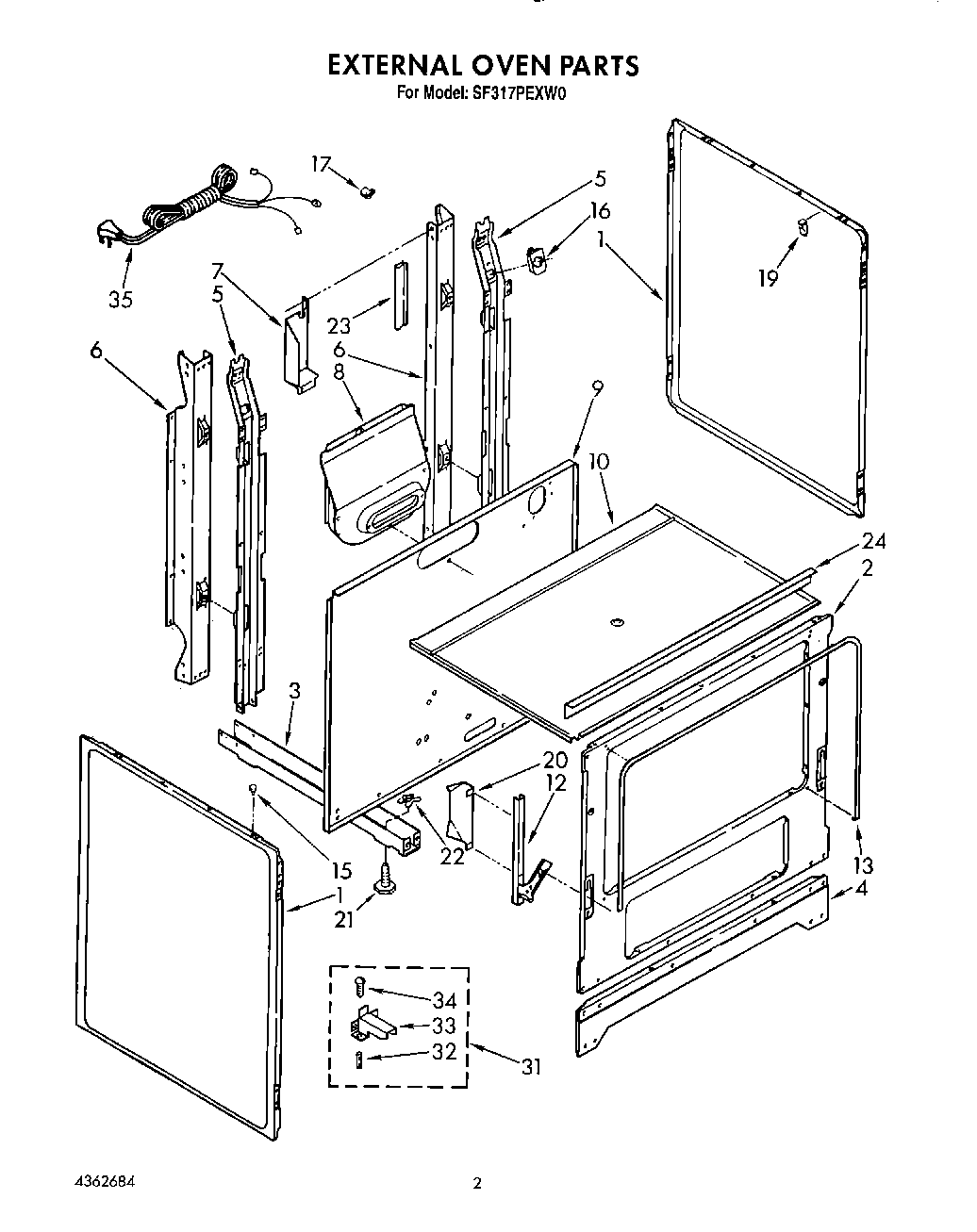

SF317PEXW0 02 – EXTERNAL OVEN

Products

Position	Product
1	Panel, Side (2) (White)
1	Panel, Side (2) (Almond)
2	Frame, Front
3	Rail, Base (2)
4	Ignitor (Screw, 8 X 1/2 (4))
4	Base, Front
5	Support, Main (2)
5	Screw, 10-32 X 1/2 (1)
6	Support, Rear (2)
7	Screw, 10-12 X 3/8 (2)
7	Cover, Wire
8	Flue, Box
8	SCREW
9	Panel, Rear
10	WP308685 Whirlpool Microwave Screw
10	Burner Box
12	Hinge, Door (2)
12	Screw, 10-24 X 3/8 (2)
13	Seal, Door (2)
15	Locator stud (2)
16	Bracket, Receptable
17	Strain Relief
19	Wire, Tie
20	Shield, Insulation
21	Leg, Leveler (4)
22	Nut (4)
23	Safe Edge
24	Extension Burner Box
31	Anti-Tip Kit
32	Anchor
33	Bracket
34	Screw
34	W11693756 Whirlpool Screw Assembly
35	Cord, Power
