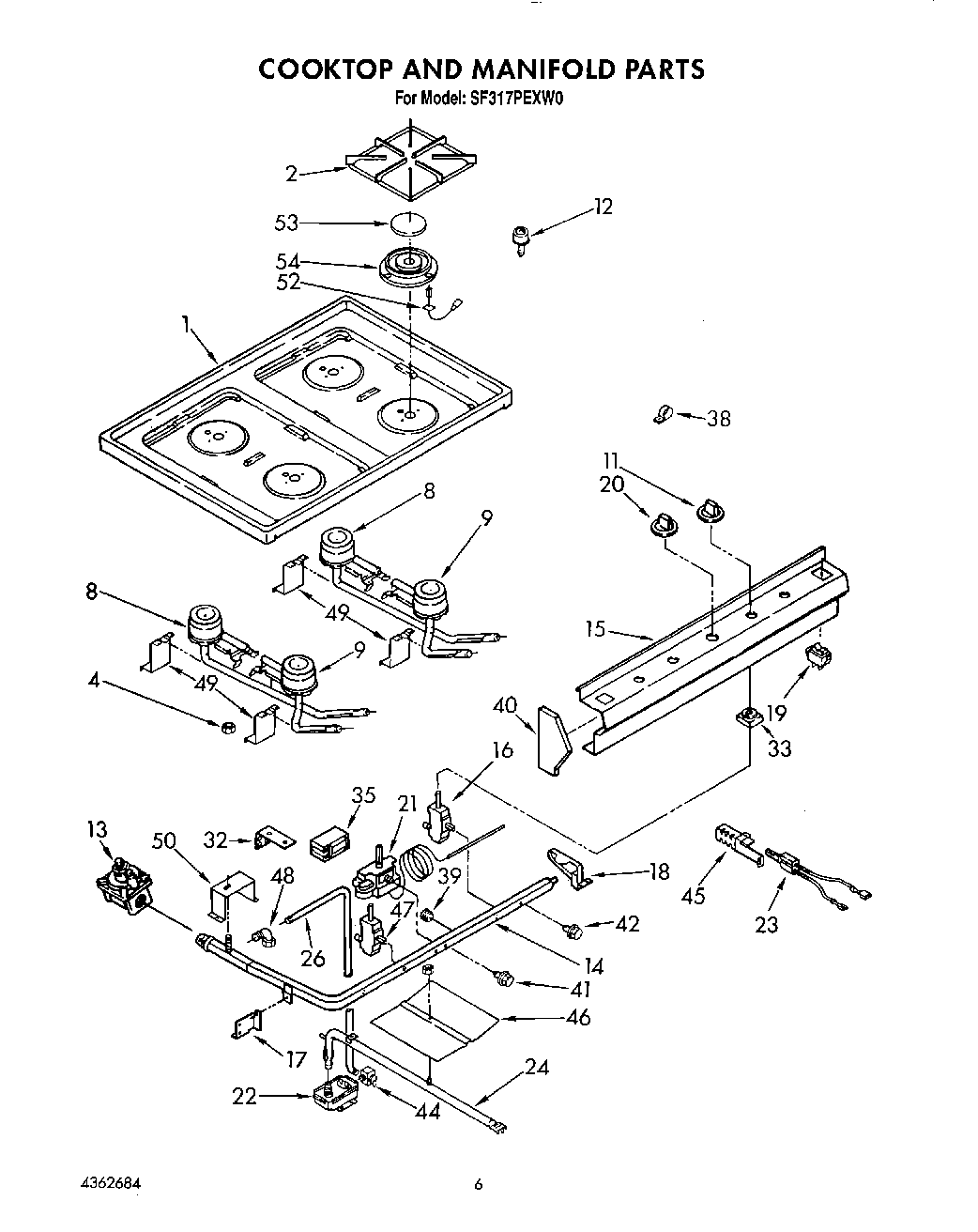

SF317PEXW0 05 – COOKTOP AND MANIFOLD, LIT/OPTIONAL

Products

Position	Product
	WPL LIT4321147
	Guide, Cooking
	WPL LIT4362684
	WPL LIT4321146
1	Cooktop (Almond)
2	Grate (4)
4	Nut, Hex
8	Venturi Tube Rear (2)
9	Venturi Tube Front (2)
11	WP4320580 Whirlpool Knob Assembly
12	Locator Stud (2)
13	Regulator, Pressure
14	Manifold
15	Panel, Manifold
16	Cooktop (White)
17	Support, Manifold (L.H.)
18	Support, Manifold (R.H.)
18	WP308685 Whirlpool Microwave Screw
19	Switch, Oven Light
20	Knob, Thermostat
21	Thermostat
22	Valve, Safety
23	Pilot
23	Screw, 10-12 X 3/8 (2)
24	Burner, Oven
26	Tubing 3/8“ (Manifold To Safety Valve)
32	Plate, Spark Module
33	WP4157180 Whirlpool Surface Burner Ignition Switch
35	Module, Spark
38	Strain Relief
39	W10295523 Whirlpool Plug
40	Endcap (R.H.)
40	Endcap (L.H.)
41	Bolt, Thermostat Mounting (2)
42	Bolt, Valve Mounting
44	Valve, Shut Off
45	Bracket, Ignitor
46	Spreader, Flame
46	W10080180 Whirlpool Nut
47	Valve, 180~ (2) (Includes Ill. No. 42) R.R. & L.F.
48	Elbow 90~
49	WPL 4321268
50	Bracket, Manifold
52	Electrode (4)
52	Clip
52	Electrode, Wire (4)
53	Burner Cap (Small)
53	Burner Cap (Large)
54	Burner Cap White Model (Small)
54	W10759522 Whirlpool Screw
54	Burner Cap White Model (Large)
