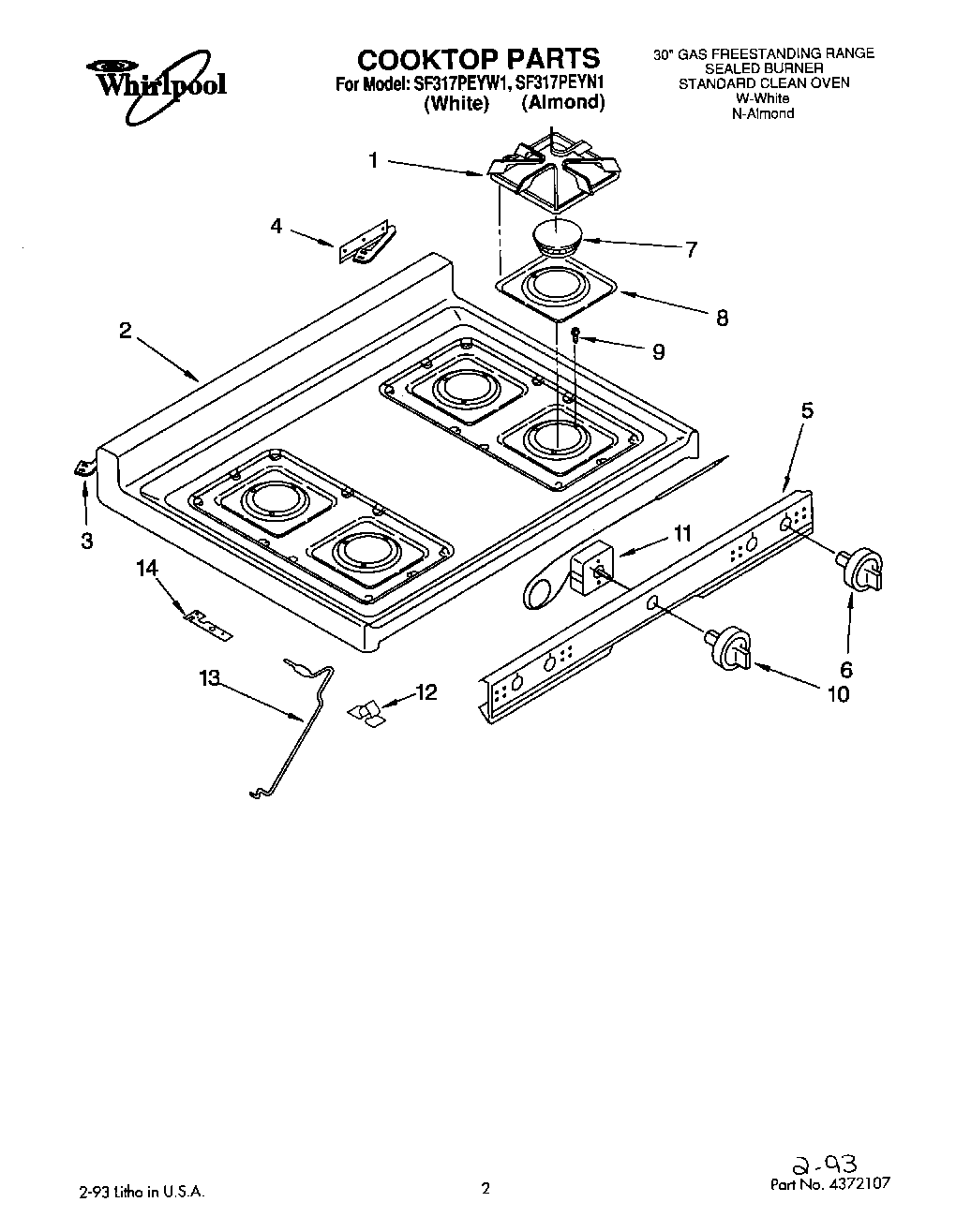

SF317PEYN1 01 – COOKTOP, LIT/OPTIONAL

Products

PositionProduct
Guide, Use & Care
List, Repair Parts
Instructions, Installation
1Grate
2Top, Main (Almond)
2Top, Main (White)
3Bracket, Hinge (Left Side)
4Bracket, Hinge (Right Side)
5Panel, Manifold
6Knob, Control (4)
7Cap, Burner (4)
8Pan, Burner (4)
9Screw, Burner Mtg.
10Knob, Thermostat
11Thermostat, Oven
12Clip, Top Mtg.
13Rod, Support Top
14Bracket, Mounting (L.H.)
14Bracket, Mounting (R.H.)
