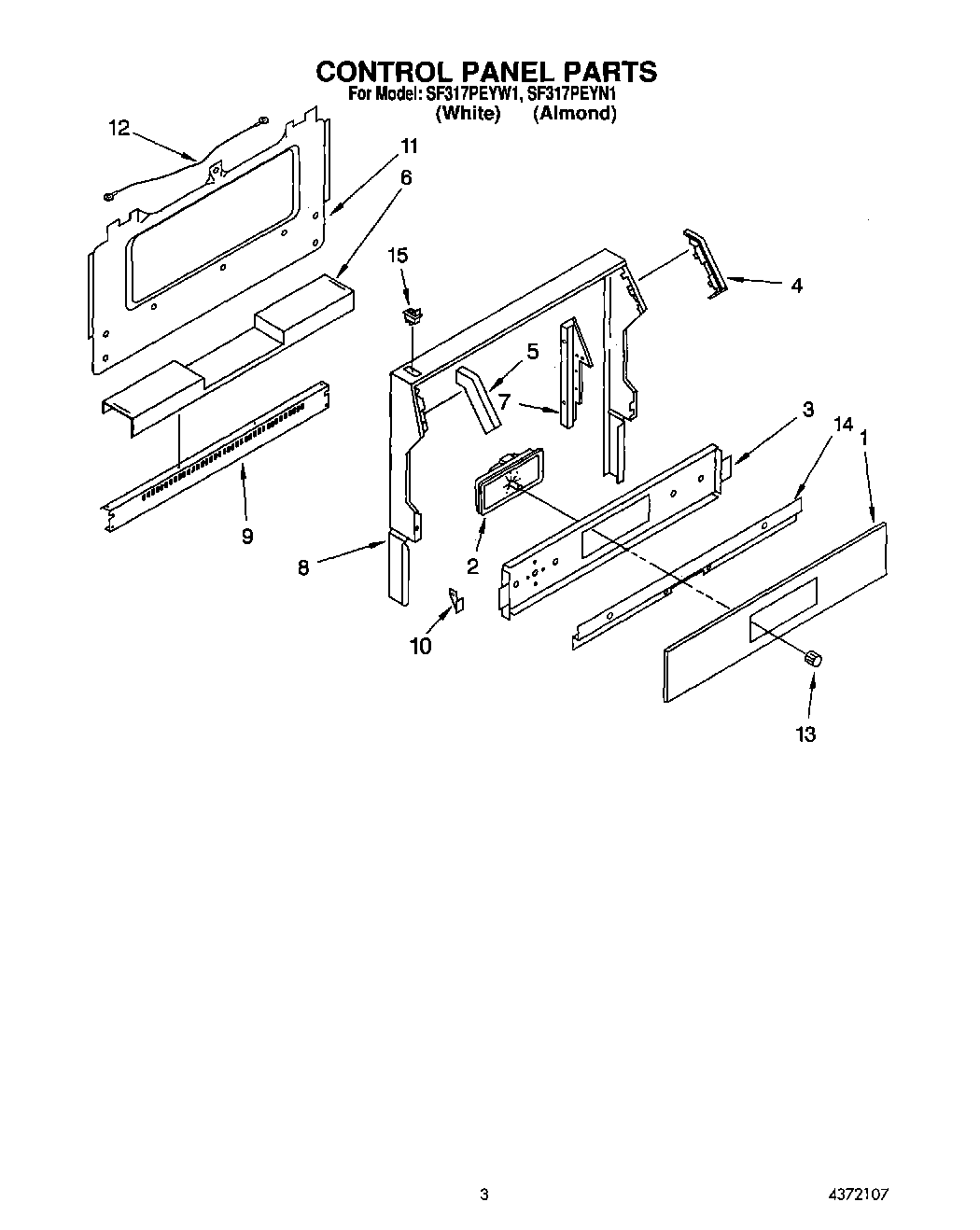

SF317PEYN1 02 – CONTROL PANEL

Products

PositionProduct
1Panel, Control
2Clock
3Bracket, Timer
4Cap, End (R.H.)
5Cap, End (L.H.)
6Deflector, Flue
7Support, Control Panel (L.H.)
7Support, Control Panel (R.H.)
8Trim, Wrapper
9Trim, Vent
10Cap, Filler
11Shield, Rear Wall
12Cable, Anti-Tip
13Knob, Clock
14Retainer, Timer
15WP4314961 Whirlpool Lite Switch
