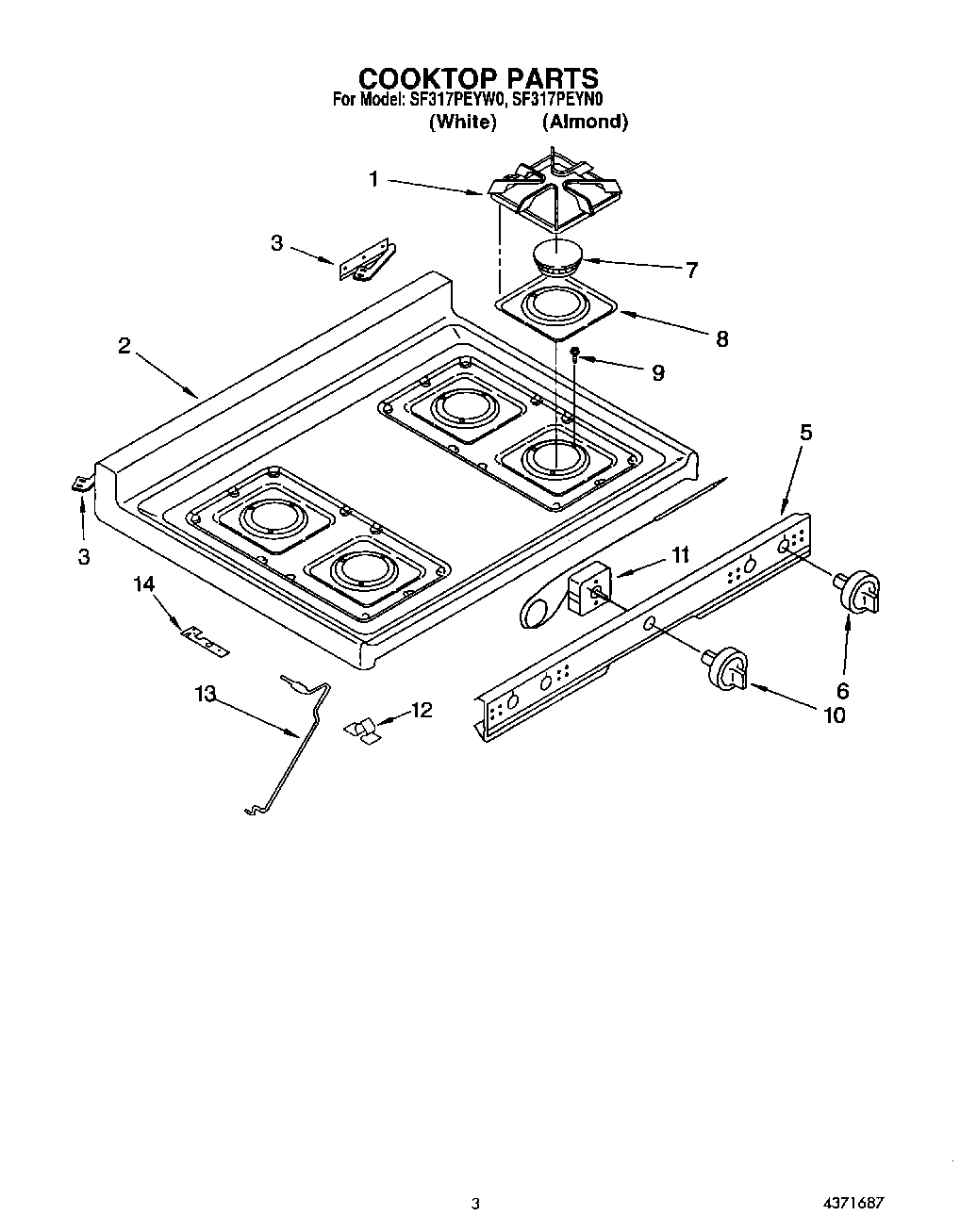

SF317PEYW0 03 – COOKTOP

SF317PEYW0 03 – COOKTOP

Written by

in

SF317PEYW0 03 – COOKTOP

Products

PositionProduct
1Grate
2Top, Main (Almond)
2Top, Main (White)
3Bracket, Hinge (Left Side)
4Bracket, Hinge (Right Side)
5Panel, Manifold
6Knob, Control (4)
7Cap, Burner (4)
8Pan, Burner (4)
9Screw, Burner Mtg.
10Knob, Thermostat
11Thermostat, Oven
12Clip, Top Mtg.
13Rod, Support Top
14Bracket, Mounting (L.H.)
14Bracket, Mounting (R.H.)
