SF317PEYW1 01 – COOKTOP, LIT/OPTIONAL

SF317PEYW1 01 – COOKTOP, LIT/OPTIONAL

Written by

in

SF317PEYW1 01 – COOKTOP, LIT/OPTIONAL

Products

PositionProduct
Guide, Use & Care
List, Repair Parts
Instructions, Installation

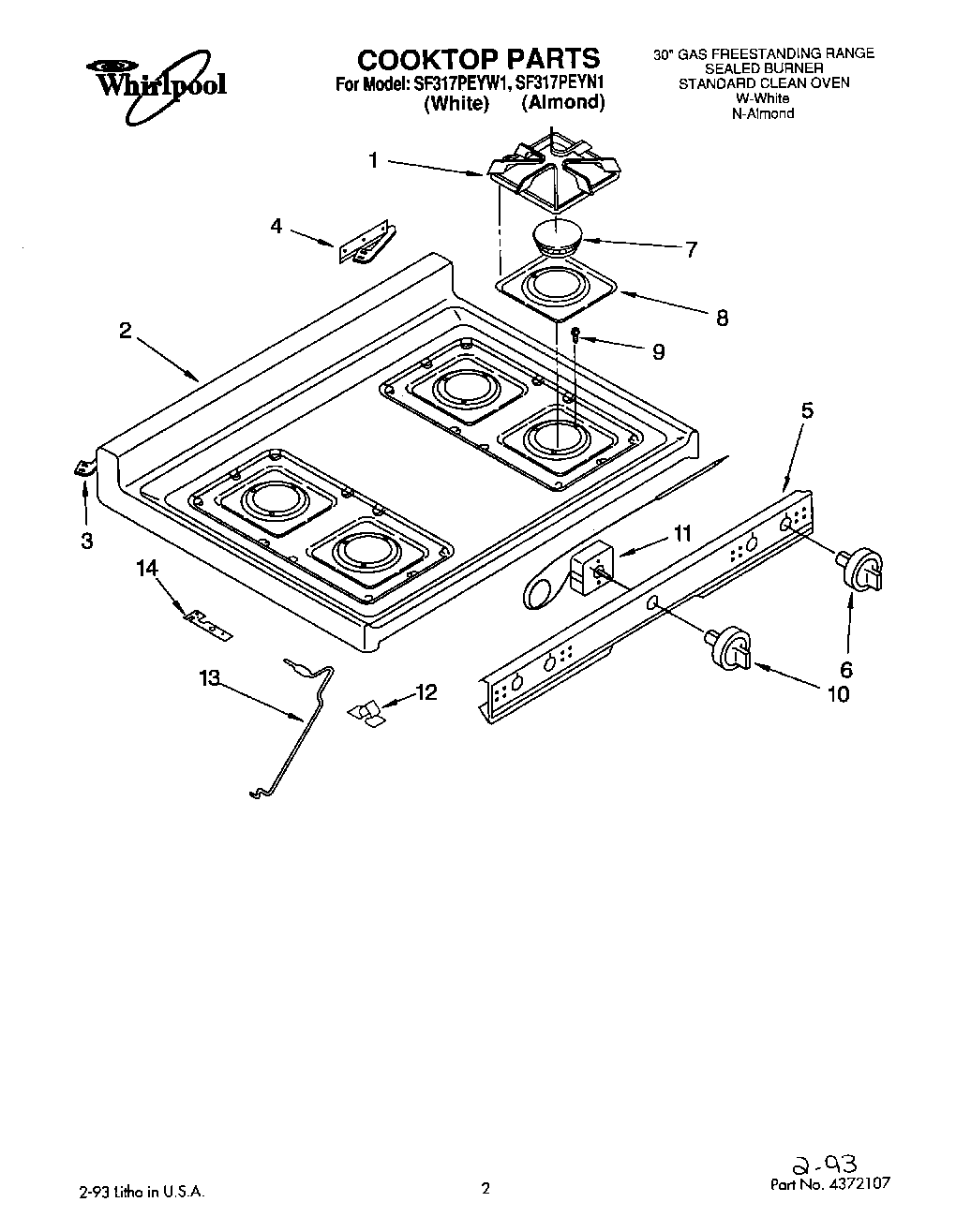

1Grate
2Top, Main (Almond)
2Top, Main (White)
3Bracket, Hinge (Left Side)
4Bracket, Hinge (Right Side)
5Panel, Manifold
6Knob, Control (4)
7Cap, Burner (4)
8Pan, Burner (4)
9Screw, Burner Mtg.
10Knob, Thermostat
11Thermostat, Oven
12Clip, Top Mtg.
13Rod, Support Top
14Bracket, Mounting (L.H.)
14Bracket, Mounting (R.H.)
