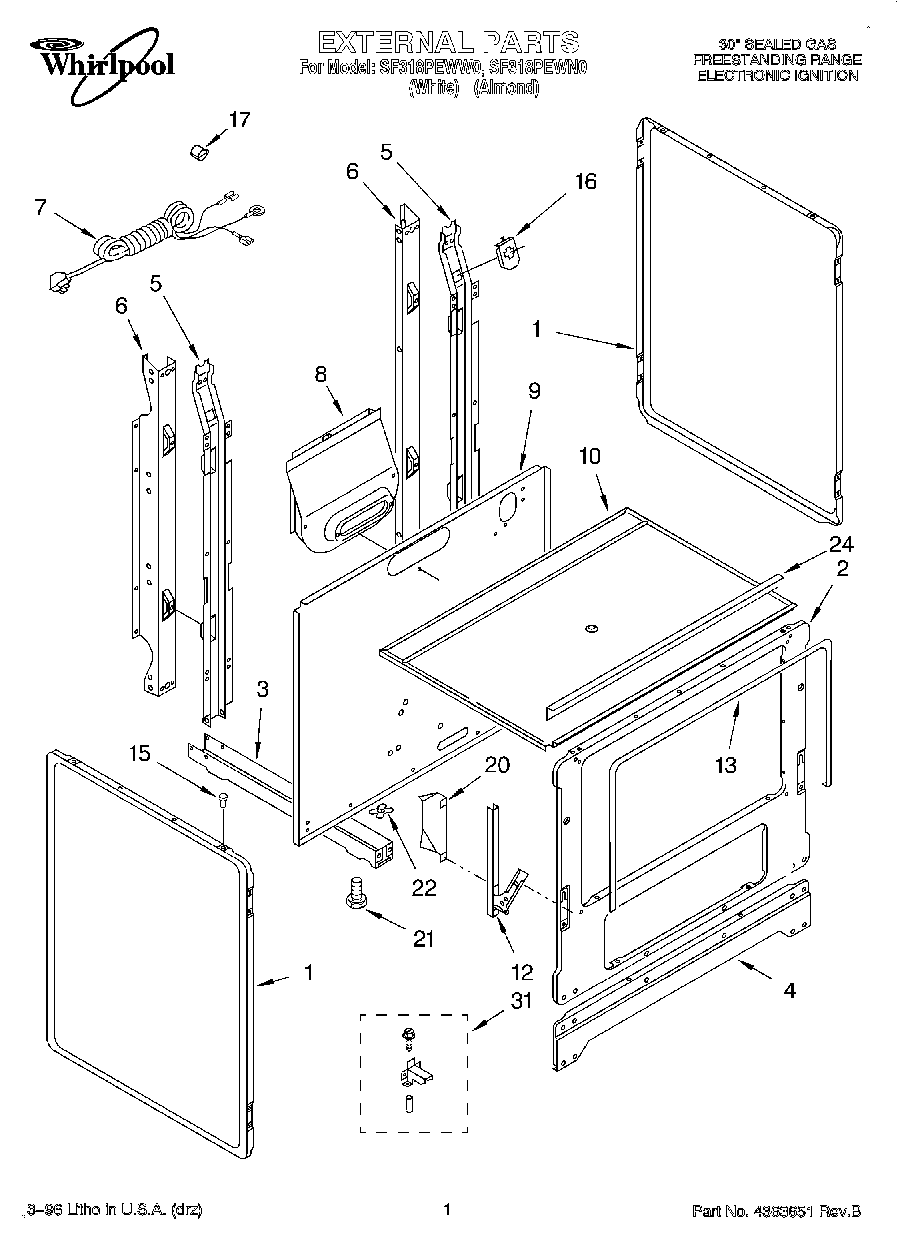

| 1 | Panel, Side (2) (Almond) |
| 1 | Panel, Side (2) (White) |
| 2 | Frame, Front |
| 2 | WP308685 Whirlpool Microwave Screw |
| 3 | Rail, Base (2) |
| 4 | Base, Front |
| 5 | Support, Main (2) |
| 6 | Support, Rear (2) |
| 7 | WP9757891 Whirlpool Power Cord |
| 8 | Box, Flue |
| 9 | Panel, Rear |
| 10 | Burner Box |
| 12 | Screw |
| 12 | Screw |
| 12 | Hinge, Door (2) |
| 13 | Seal, Door (2) |
| 15 | Bumper, Cooktop (2) |
| 16 | Bracket, Receptable |
| 17 | Strain Relief |
| 20 | Shield, Insulation |
| 21 | Leg, Leveler |
| 22 | Nut (4) |
| 24 | Extension, Burner |
| 31 | Anti-Tip Kit |
