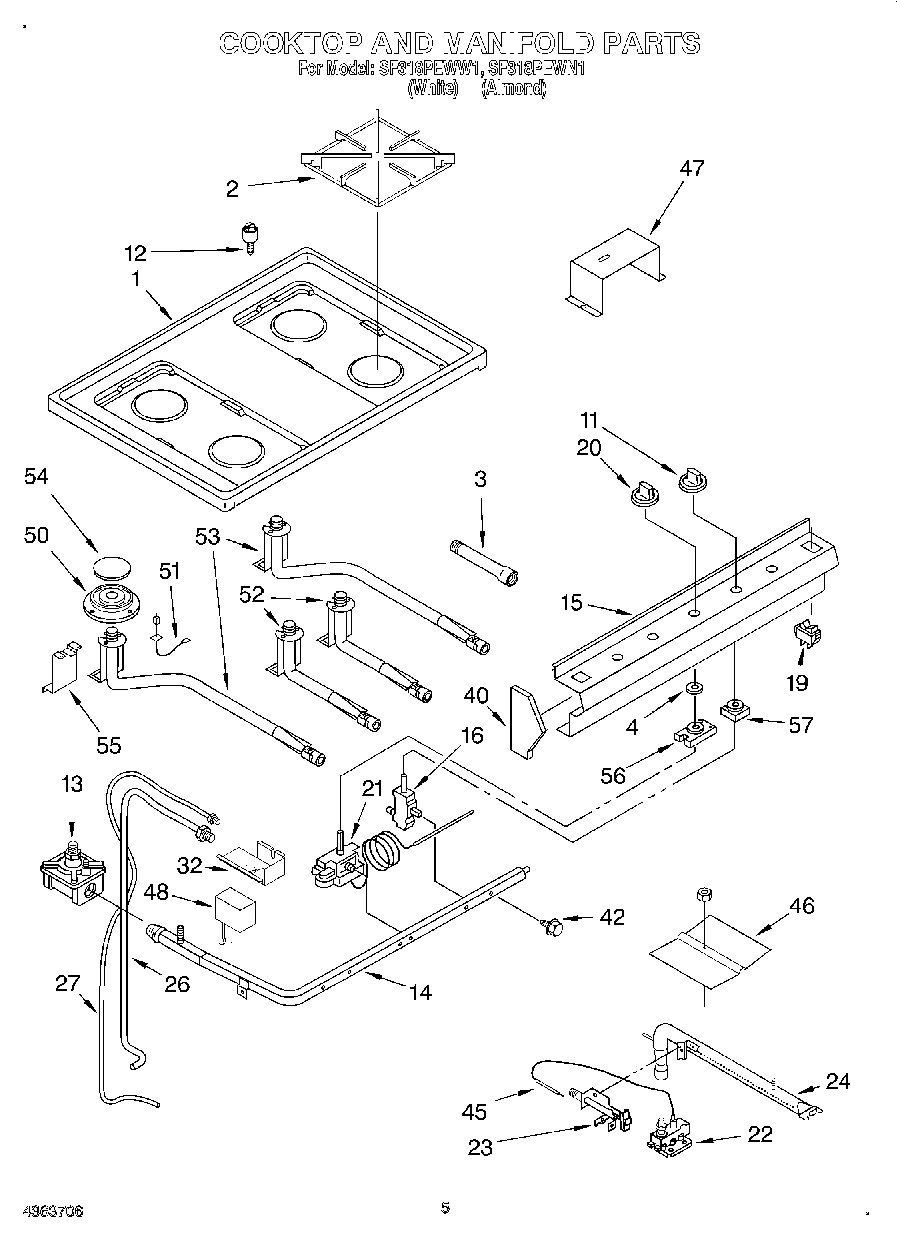

SF318PEWN1 03 – COOKTOP AND MANIFOLD, LITERATURE

Products

Position	Product
	WPL LIT4363650
	Guide, Cooking
	WPL LIT4363401
	WPL LIT4363400
1	WP488729 Whirlpool Refrigerator Door Screw
1	Cooktop (White)
1	Cooktop (Almond)
1	Speed Clip (4)
2	Grate (4) ((Almond Model))
3	Extension, Pipe
4	Shield, Switch
11	WP4320580 Whirlpool Knob Assembly
12	Locator Stud (2)
13	Regulator, Pressure
14	Manifold
15	Panel, Manifold
16	Valve, 90~ (4) (Includes Ill. No. 32)
16	Valve, 90~ (2) (Includes Ill. No. 42)
19	Switch, Oven Light
20	Knob, Thermostat
21	Thermostat (Includes Ill. No. 45)
22	Valve, Safety
23	Pilot
23	Screw, Thermostat Mounting (2)
24	Screw
24	Burner, Oven
26	Tubing 3/8“ (Thermostat To Safety Valve)
27	Tubing 3/16“ (Thermostat To Pilot)
32	Cover, Spark Module
40	Endcap (R.H.)
40	Endcap (L.H.)
40	Endcap (Screw)
42	Bolt, Valve Mounting
45	Ignitor, Oven
46	W10080180 Whirlpool Nut
46	Spreader, Flame
47	WP308685 Whirlpool Microwave Screw
47	Bracket, Manifold
48	Module, Spark
50	Burner, Cast (Small)
50	Burner, Cast (Large)
51	Electrode (4)
52	Venturi Tube Front (2)
53	Venturi Tube Rear (2)
54	Burner Cap White Model (Small)
54	Burner Cap (Large)
55	WPL 4321268
56	WP878009 Whirlpool Igniter Switch
57	WP4157180 Whirlpool Surface Burner Ignition Switch
