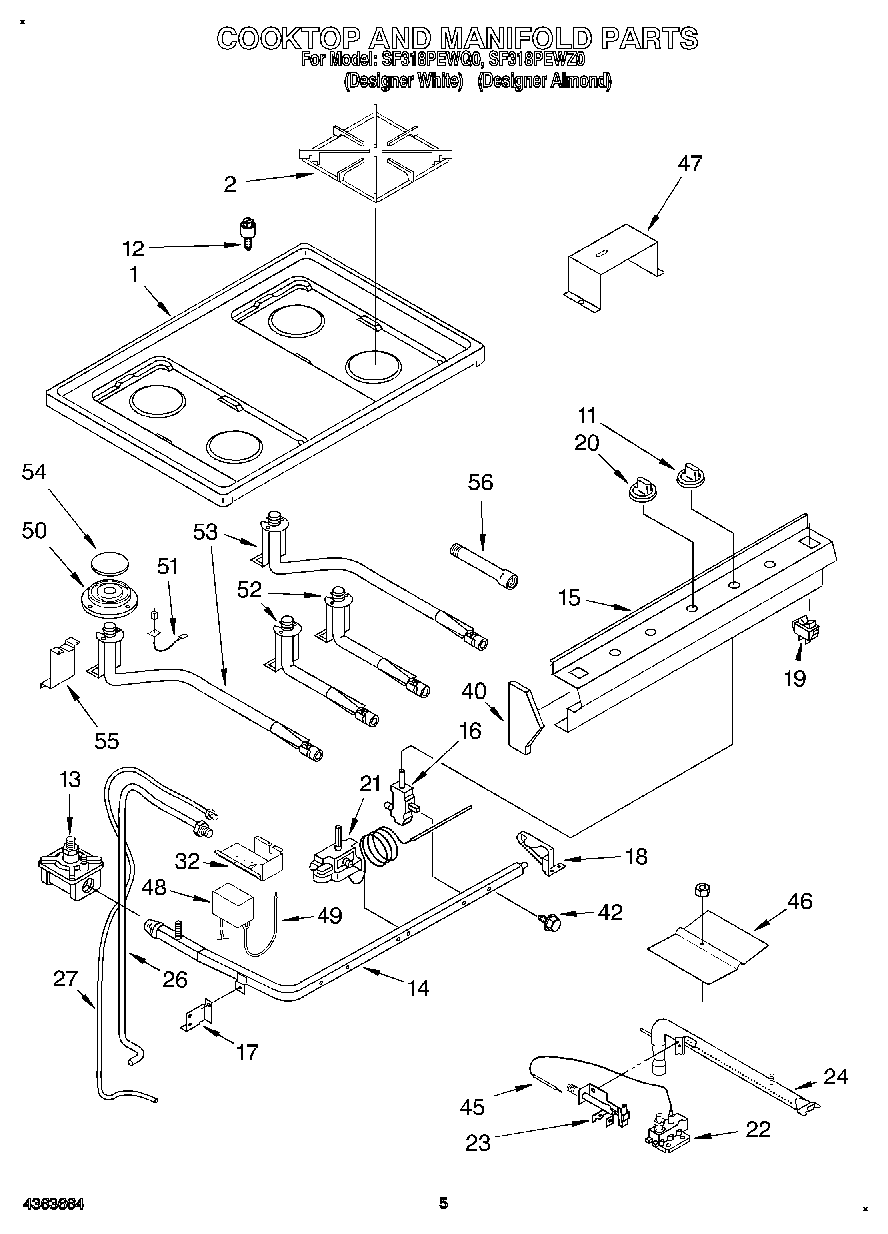

SF318PEWQ0 03 – COOKTOP AND MANIFOLD, LITERATURE

Products

Position	Product
	Guide, Cooking
	WPL LIT4363400
	WPL LIT4363401
	WPL LIT4363650
1	Cooktop (Almond)
1	Cooktop (White)
2	Grate (4) ((White Model))
2	Grate (4) ((Almond Model))
11	Knob, Burner (4) ((White Model))
11	Knob, Burner (4) ((Almond Model))
12	Locator Stud (2)
13	Regulator, Pressure
15	Panel, Manifold (White)
15	Panel, Manifold (Almond)
16	Valve, 90~ (4) (Includes Ill. No. 32)
17	Support, Manifold (L.H.)
18	Support, Manifold (R.H.)
19	Switch, Oven Light (White)
19	Switch, Oven Light (Almond)
20	Knob, Thermostat (White)
20	Knob, Thermostat (Almond)
21	Thermostat (Includes Ill. No. 45)
22	Valve, Safety
23	Pilot
24	Screw
24	Burner, Oven
26	Tubing 3/8“ (Thermostat To Safety Valve)
27	Tubing 3/16“ (Thermostat To Pilot)
32	Cover, Spark Module
40	Endcap (R.H.)
40	Endcap (L.H.)
42	Bolt, Valve Mounting
45	Screw, Thermostat Mounting (2)
45	Ignitor, Oven
46	W10080180 Whirlpool Nut
46	Spreader, Flame
47	Bracket, Manifold
48	Module, Spark
49	Ignitor, Oven
50	Burner, Cast (Large)
50	Burner, Cast (Small)
51	Electrode (4)
52	Venturi Tube Front (2)
53	Venturi Tube Rear (2)
54	Burner Cap White Model (Small)
54	Burner Cap White Model (Large Alm
54	Burner Cap, White Model (Small)
54	Burner Cap White Model (Large)
55	WP308685 Whirlpool Microwave Screw
55	WPL 4321268
56	Manifold
