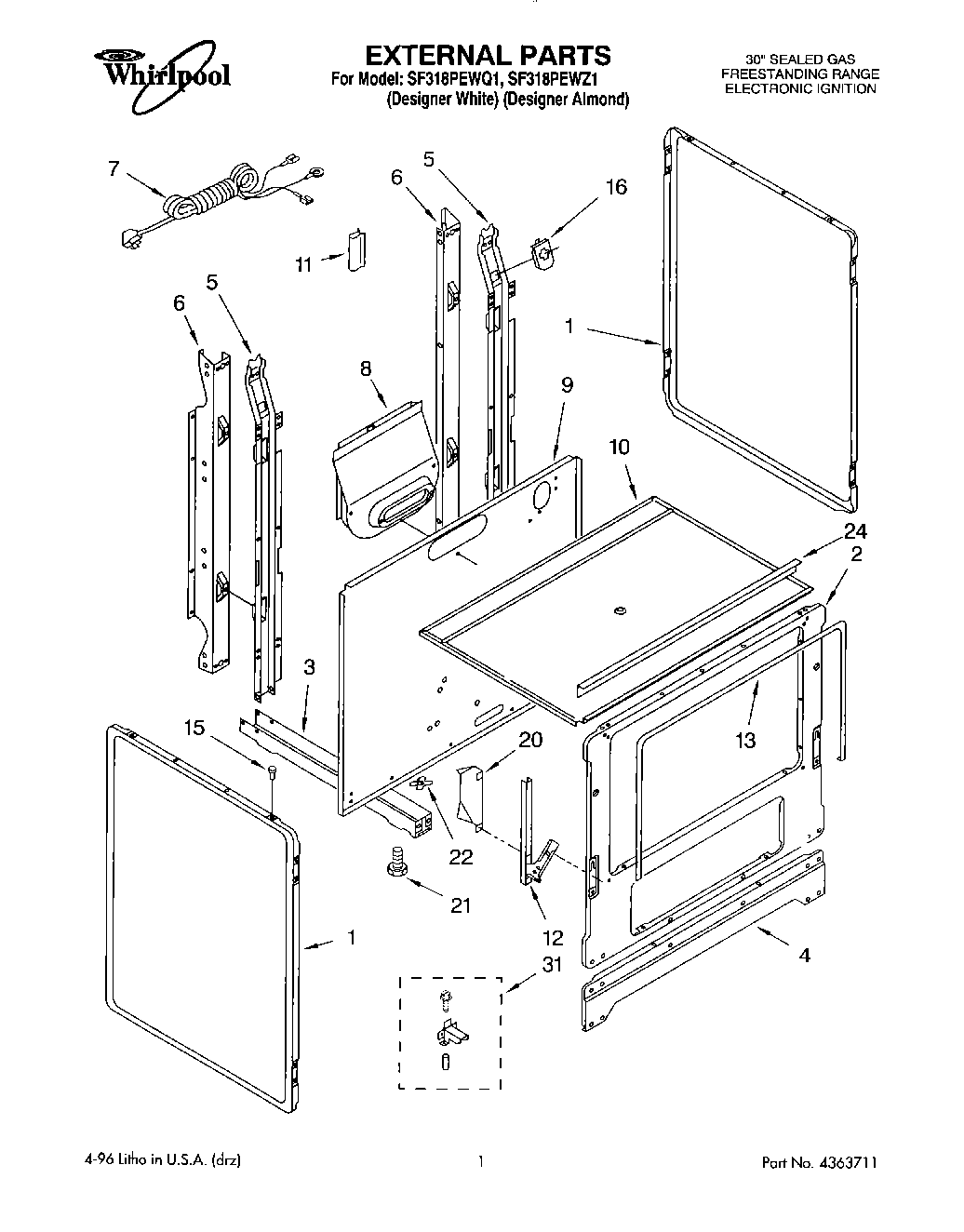

SF318PEWQ1 01 – EXTERNAL

Products

Position	Product
1	Panel, Side (2) (White)
1	Panel, Side (2) (Almond)
2	Frame, Front
3	Rail, Base (2)
4	Base, Front
5	Screw
5	Support, Main (2)
6	Support, Rear (2)
7	Screw, 10-32 X 1/2 (1)
7	WP9757891 Whirlpool Power Cord
8	Box, Flue
9	Panel, Rear
10	Burner Box
11	Safe Edge
12	Screw
12	Screw
12	Hinge, Door (2)
13	Seal, Door (2)
15	Bumper, Cooktop (2)
16	Bracket, Receptable
20	Shield, Insulation
21	Leg, Leveler
22	Nut (4)
24	WP308685 Whirlpool Microwave Screw
24	Extension, Burner
31	Anti-Tip Kit
