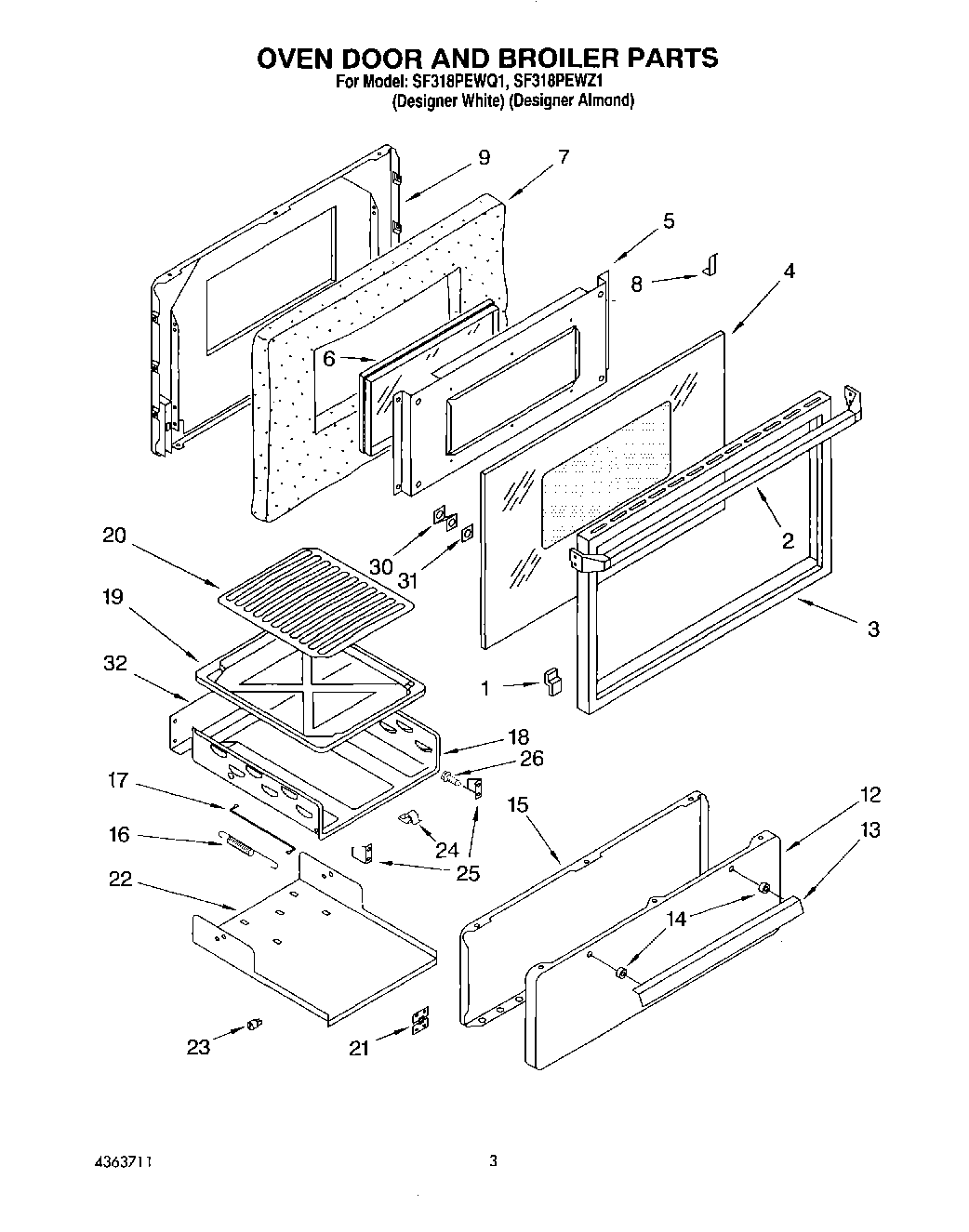

SF318PEWQ1 02 – OVEN DOOR AND BROILER

Products

Position	Product
1	Bumper, Rubber (6)
2	Handle, Door ((Almond Model))
2	Handle, Door (White)
3	Frame, Door (White)
3	Frame, Door (Almond)
4	Glass, Outer Door ((White Model))
4	Glass, Outer Door ((Almond Model))
5	Baffle, Door
6	Window, Two Pane
7	Insulation
8	Bumper (4)
9	Liner, Door
12	Panel, Broiler (Almond)
12	Panel, Broiler (White)
12	Screw, 10-12 x 1/2 (4)
13	Panel, Broiler (Screw)
13	Handle
14	Spacer (4)
14	Screw
15	Liner, Broiler Door
16	Spring (2)
17	Rod, Push-Pull
18	Carriage, Broiler
19	4396923 Whirlpool Broil Pan Set Gray Porcelain
20	Grid
21	Hinge, Door
22	Carriage Broiler
23	W10709871 Whirlpool Drawer Glide
24	Clip, Broiler
25	Bracket
30	WP308685 Whirlpool Microwave Screw
30	Bracket “Z“ (8)
31	Bumper, Rubber (2)
32	Backer, Carriage
