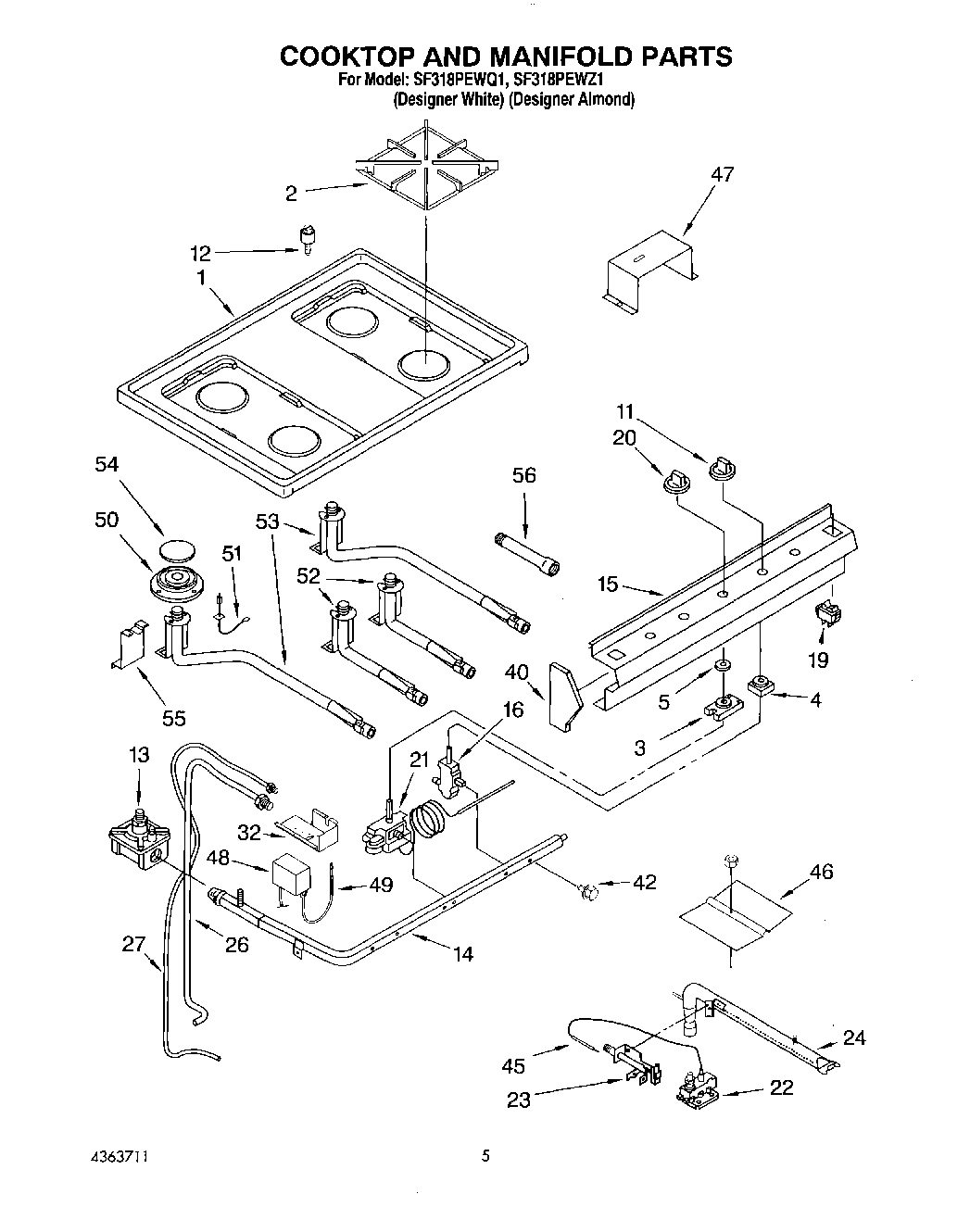

SF318PEWQ1 03 – COOKTOP AND MANIFOLD, LITERATURE

Products

Position	Product
	Guide, Cooking
	WPL LIT4363400
	WPL LIT4363401
	WPL LIT4363650
1	WP488729 Whirlpool Refrigerator Door Screw
1	Cooktop (Almond)
1	Cooktop (White)
1	Speed Clip (4)
2	Grate (4) ((White Model))
2	Grate (4) ((Almond Model))
3	WP878009 Whirlpool Igniter Switch
4	WP4157180 Whirlpool Surface Burner Ignition Switch
5	Shield, Switch
11	Knob, Burner (4) ((Almond Model))
11	Knob, Burner (4) ((White Model))
12	Locator Stud (2)
13	Regulator, Pressure
15	Panel, Manifold (Almond)
15	Panel, Manifold (White)
16	Valve, 90~ (2) (Includes Ill. No. 42)
16	Valve, 90~ (4) (Includes Ill. No. 32)
19	Switch, Oven Light (White)
19	Switch, Oven Light (Almond)
20	Knob, Thermostat (Almond)
20	Knob, Thermostat (White)
21	Thermostat (Includes Ill. No. 45)
22	Valve, Safety
23	Pilot
23	Screw, Thermostat Mounting (2)
24	Screw
24	Burner, Oven
26	Tubing 3/8“ (Thermostat To Safety Valve)
27	Tubing 3/16“ (Thermostat To Pilot)
32	Cover, Spark Module
40	Endcap (Screw)
40	Endcap (L.H.)
40	Endcap (R.H.)
42	Bolt, Valve Mounting
46	Spreader, Flame
46	W10080180 Whirlpool Nut
47	Bracket, Manifold
48	Module, Spark
49	Ignitor, Oven
50	Burner, Cast (Large)
50	Burner, Cast (Small)
51	Electrode (4)
52	Venturi Tube Front (2)
53	Venturi Tube Rear (2)
54	WPL 4363715
54	Burner Cap White Model (L
54	Burner Cap White Model (Large)
54	Burner Cap White Model (Small)
55	WPL 4321268
55	WP308685 Whirlpool Microwave Screw
56	Manifold
