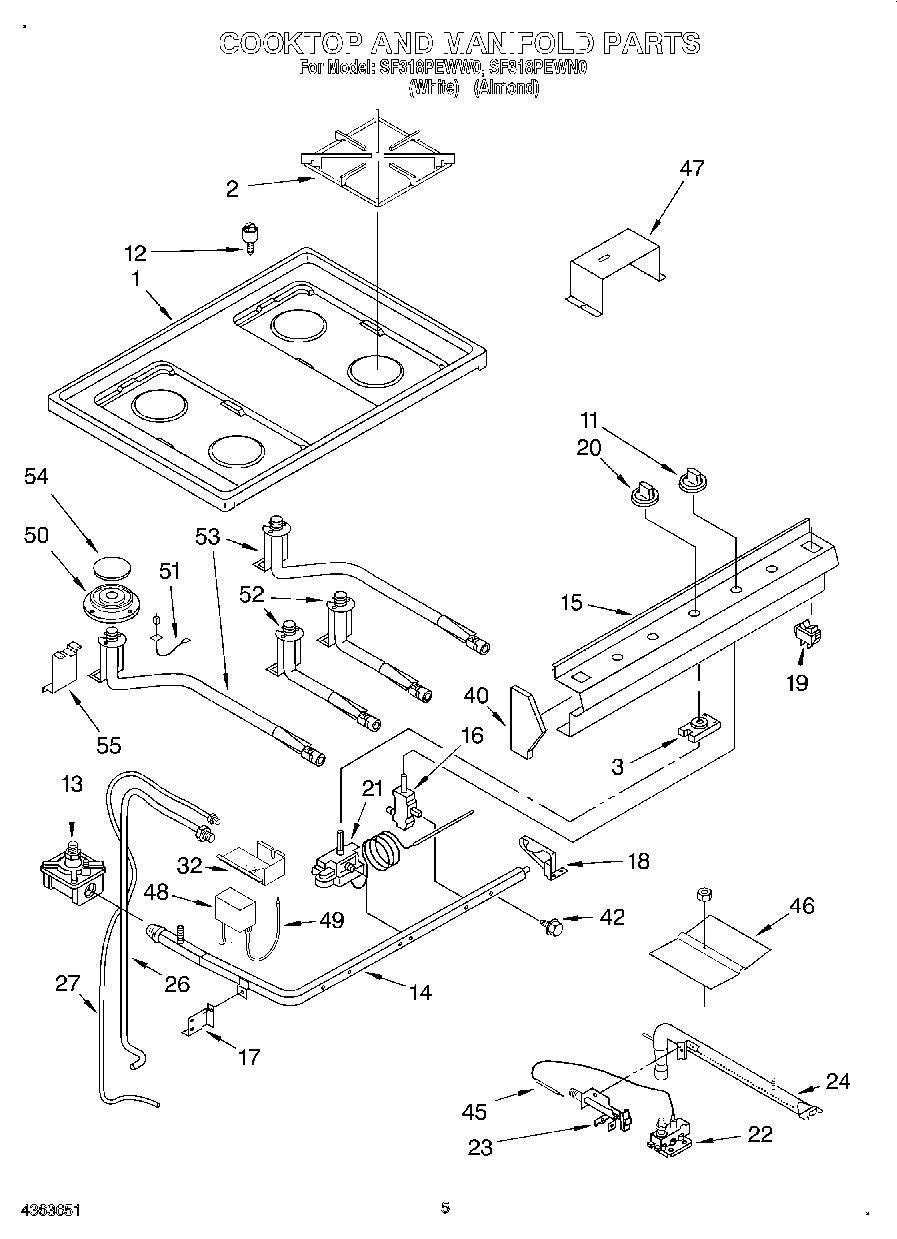

SF318PEWW0 03 – COOKTOP AND MANIFOLD, LITERATURE

Products

Position	Product
	Guide, Cooking
	WPL LIT4363400
	WPL LIT4363650
	WPL LIT4363401
1	Cooktop (White)
1	Cooktop (Almond)
2	Grate (4)
3	WP878009 Whirlpool Igniter Switch
11	WP4320580 Whirlpool Knob Assembly
12	Locator Stud (2)
13	Regulator, Pressure
14	Manifold
15	Panel, Manifold
16	Valve, 90~ (4) (Includes Ill. No. 32)
17	Support, Manifold (L.H.)
18	Support, Manifold (R.H.)
19	Switch, Oven Light
20	Knob, Thermostat
21	Thermostat (Includes Ill. No. 45)
22	Valve, Safety
23	Pilot
24	Screw
24	Burner, Oven
26	Tubing 3/8“ (Thermostat To Safety Valve)
27	Tubing 3/16“ (Thermostat To Pilot)
32	Cover, Spark Module
40	Endcap (R.H.)
40	Endcap (L.H.)
42	Bolt, Valve Mounting
45	Ignitor, Oven
45	Screw, Thermostat Mounting (2)
46	W10080180 Whirlpool Nut
46	Spreader, Flame
47	Bracket, Manifold
48	Module, Spark
49	Ignitor, Oven
50	Burner, Cast (Small)
50	Burner, Cast (Large)
51	Electrode (4)
52	Venturi Tube Front (2)
53	Venturi Tube Rear (2)
54	Burner Cap (Small)
54	Burner Cap (Large)
55	WPL 4321268
55	WP308685 Whirlpool Microwave Screw
