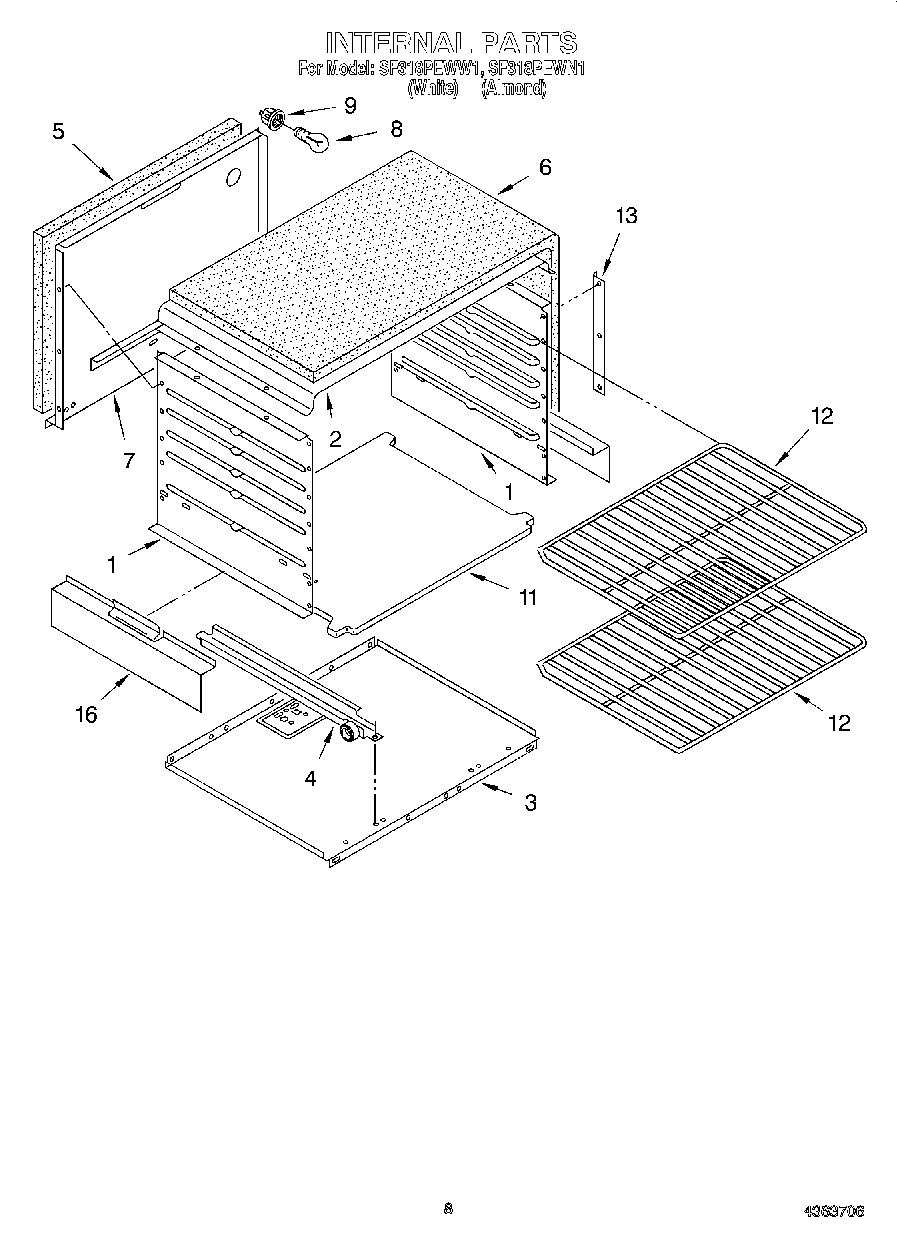

| 1 | Liner, Oven Side (2) |
| 1 | Screw |
| 2 | Liner, Oven Top |
| 3 | Baffle, Bottom |
| 4 | Track, Broiler (Right Hand) |
| 4 | Track, Broiler (Left Hand) |
| 5 | WPW10208653 Whirlpool Insulation |
| 7 | Liner, Oven Back |
| 7 | WP308685 Whirlpool Microwave Screw |
| 8 | RANGE ONLY 40W 120V APPL BULB |
| 9 | Receptacle, Light |
| 11 | Bottom, Oven |
| 12 | Rack, Oven (2) |
| 13 | Support, Liner |
| 16 | Shield, Radiation |
