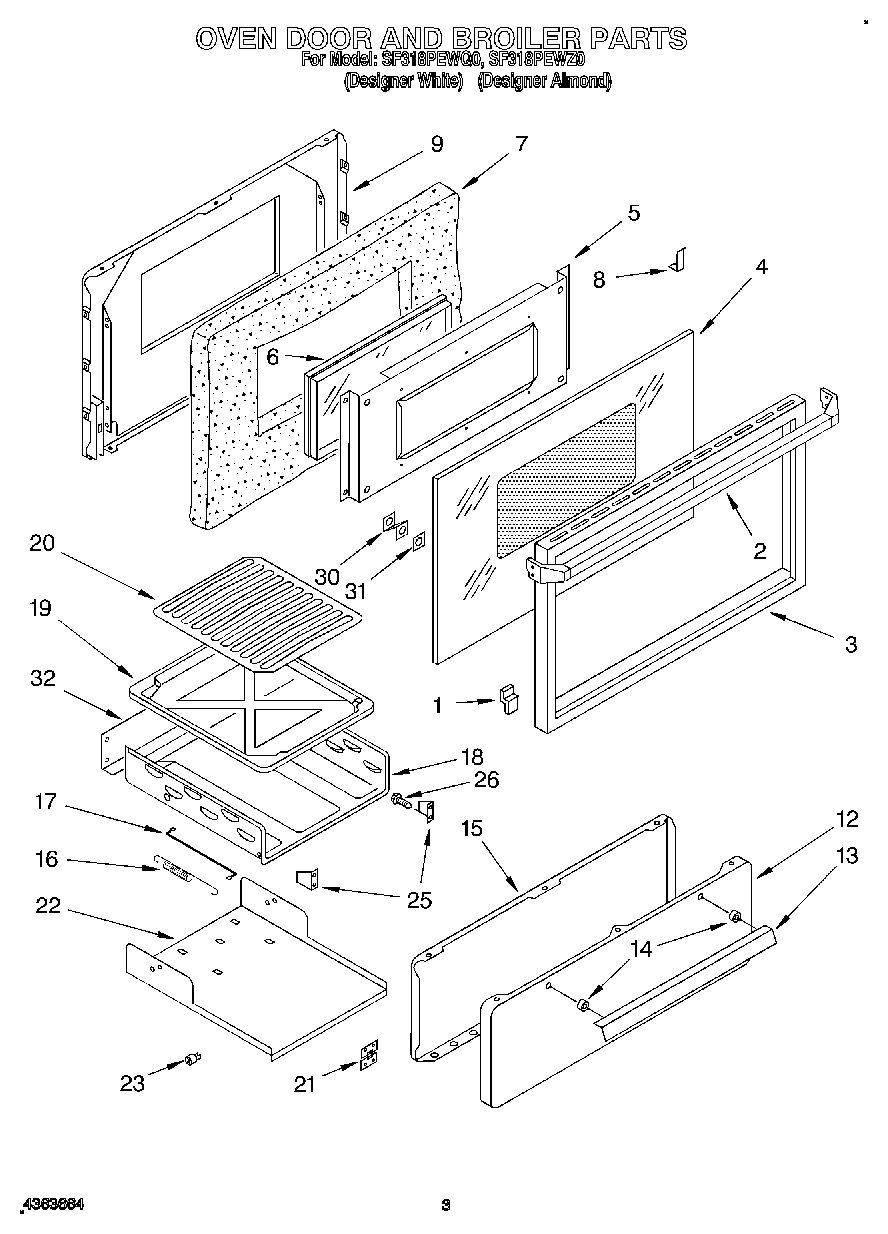

SF318PEWZ0 02 – OVEN DOOR AND BROILER

Products

Position	Product
1	Bumper, Rubber (6)
2	Handle, Door ((Almond Model))
2	Handle, Door (White)
2	Screw, Door Handle
3	Frame, Door (Almond)
3	Frame, Door (White)
4	Glass, Oven Door
4	Glass, Outer Door ((Almond Model))
5	Baffle, Door
6	Window
7	Insulation
8	Bumper (4)
9	Liner, Door
12	Panel, Broiler (Almond)
13	Panel, Broiler (Screw)
13	Handle
14	Spacer (4)
14	Panel, Broiler (White)
15	Liner, Broiler Door
16	Spring (2)
17	Rod, Push-Pull
18	Carriage, Broiler
18	Screws (3)
19	4396923 Whirlpool Broil Pan Set Gray Porcelain
20	Grid
21	Hinge, Door
22	Carriage Broiler
23	W10709871 Whirlpool Drawer Glide
25	Bracket
30	Bracket “Z“ (8)
30	WP308685 Whirlpool Microwave Screw
31	Bumper, Rubber (2)
32	Backer, Carriage
