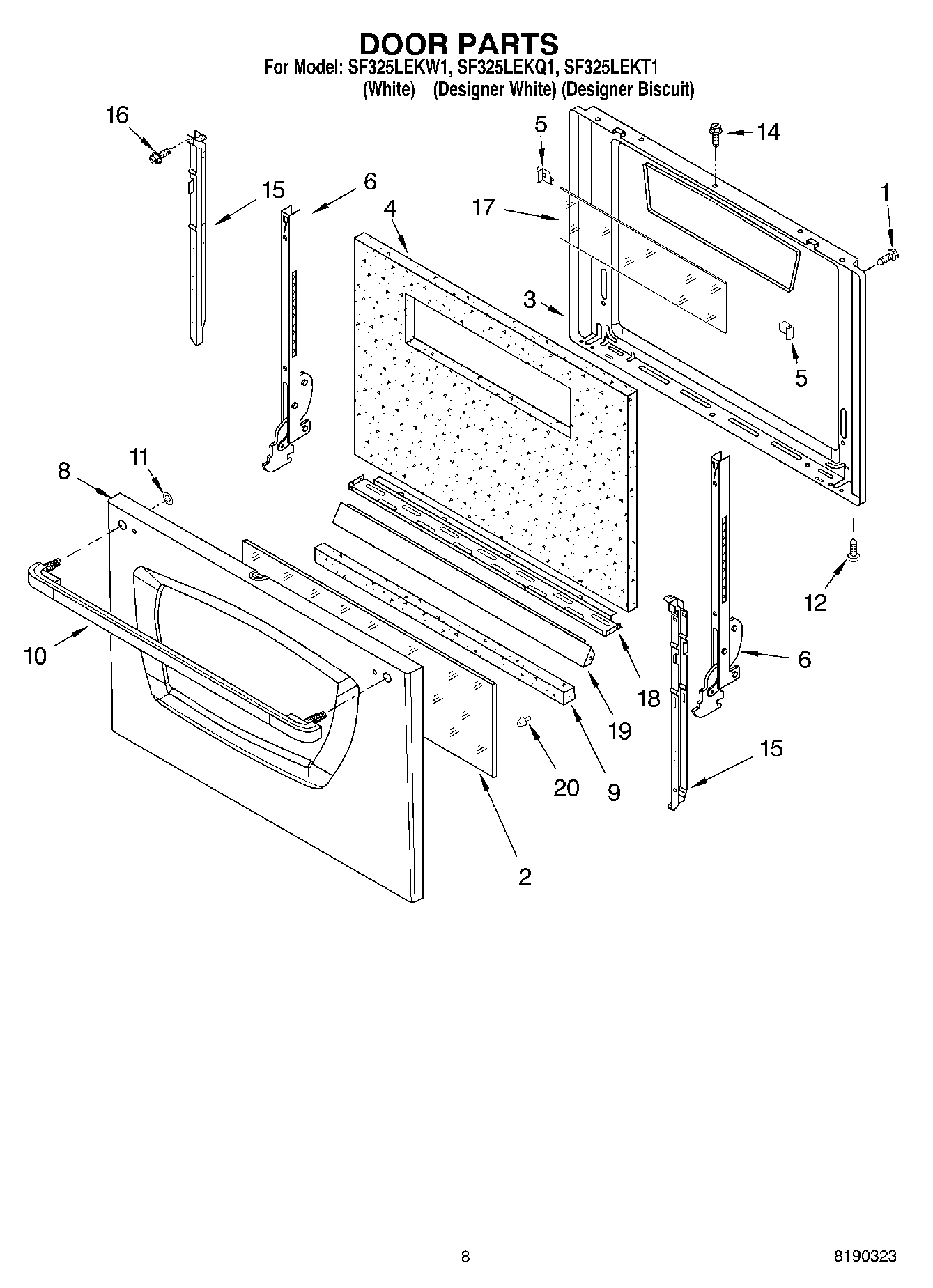

SF325LEKT1 06 – DOOR PARTS, MISCELLANEOUS PARTS

SF325LEKT1 06 – DOOR PARTS, MISCELLANEOUS PARTS

Written by

in

SF325LEKT1 06 – DOOR PARTS, MISCELLANEOUS PARTS

Products

Position	Product
	WPL ARI129932A
	Wire (14 Ga. 150 c Yellow)
	Wire (12 Ga. 150 c Black)
	Wire (14 Ga. 200 c Brown)
	1
	WPL ARI129930A
	WPL ARI129929A
	8212471 Whirlpool Oven Paint
	Grease
	WP9757891 Whirlpool Power Cord
	CLIP, WIRE
	WPL ARI129928A
	WPL ARI129927A
	WPL ARI129926A
	WPL 98005915
	98017831 Whirlpool Oven Anchor Tip
	Harness, Switch
	WPL 6610241
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Brown)
	350942 Whirlpool Spray Paint
	WPL ARI129931A
	Almond (Uncut)
	WP72107 Whirlpool Touchup
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	350956 Whirlpool Spray Assembly
	350930 Whirlpool White Spray Paint
	511873 Whirlpool Refrigerator Paint
	549193 Whirlpool Refrigerator Power Clamp
	Wire (14 Ga. 150 c Blue)
	242831 Whirlpool Oven Wire
	814381 Whirlpool Pin
	285006 Whirlpool Spray
	Wire, 25` Roll (Red 14 Ga.)
	Wire, 25` Roll (Black 14 Ga.)
	WPW10208653 Whirlpool Insulation
	WPL 799832
1	WP98004218 Whirlpool Screw
2	Glass, Outer
3	98010182 Whirlpool Door Liner
4	Insulation, Door
5	98004952 Whirlpool Oven Clip
5	98004953 Whirlpool Clip
6	Hinge, Door (2)
8	Panel, Door (Biscuit)
8	Panel, Door (White)
8	Panel, Door (Black)
9	Insulation
10	W10819915 Whirlpool Door Handle
10	WP98006181 Whirlpool Door Handle
10	Handle, Oven Door (Biscuit)
11	WP98004650 Whirlpool Nut
12	WP59002061 Whirlpool Microwave Screw
14	Screw (Biscuit)
14	3196166 Whirlpool Screw
14	WP3400832 Whirlpool Screw
15	98004629 Whirlpool Oven Retainer
15	98004564 Whirlpool Oven Retainer
16	WP3400805 Whirlpool Screw Assembly
17	WP98006801 Whirlpool Door Glass
18	98004938 Whirlpool Oven Retainer
19	Insulation, Retainer-Bottom
20	98004723 Whirlpool Oven Bumper
