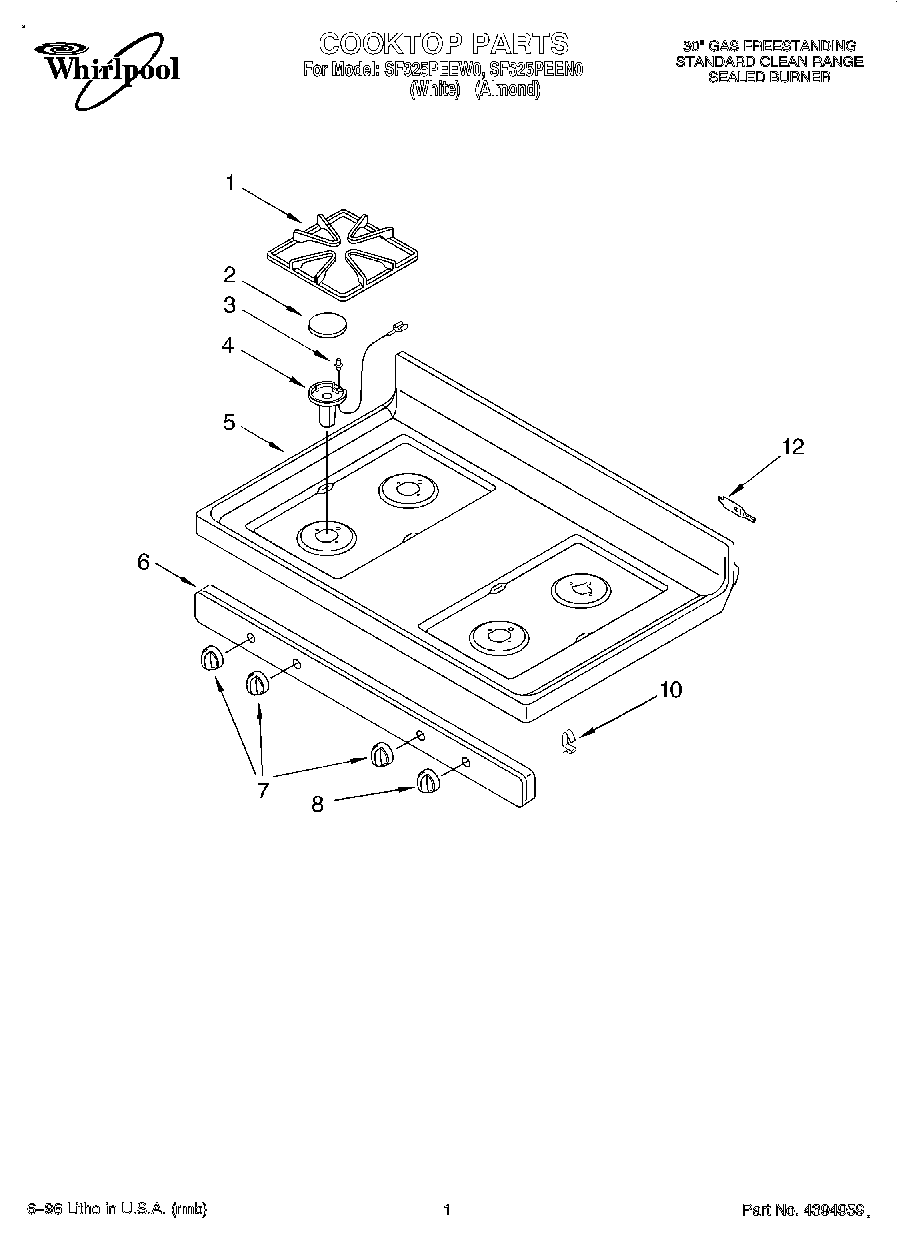

SF325PEEN0 01 – COOKTOP

Products

PositionProduct
1WP8053456 Whirlpool Burner Grate
2Cap, Burner (Small (1))
2Cap, Burner (Large (3))
3W11032529 Whirlpool Surface Igniter
4WPW10132940 Whirlpool Dishwasher Screw
4WP8053360 Whirlpool Burner Head
4Burner, 6,500 BTU (RR)
5Cooktop (White)
5Cooktop (Almond)
6WP3196557 Whirlpool Screw
68523855 Whirlpool Oven Manifold Panel
7WP8053595 Whirlpool Oven Knob
10Clip – Mounting
12WP3195060 Whirlpool Cooktop Pin
12SCREW
