SF325PEEN0 02 – CONTROL PANEL

SF325PEEN0 02 – CONTROL PANEL

Written by

in

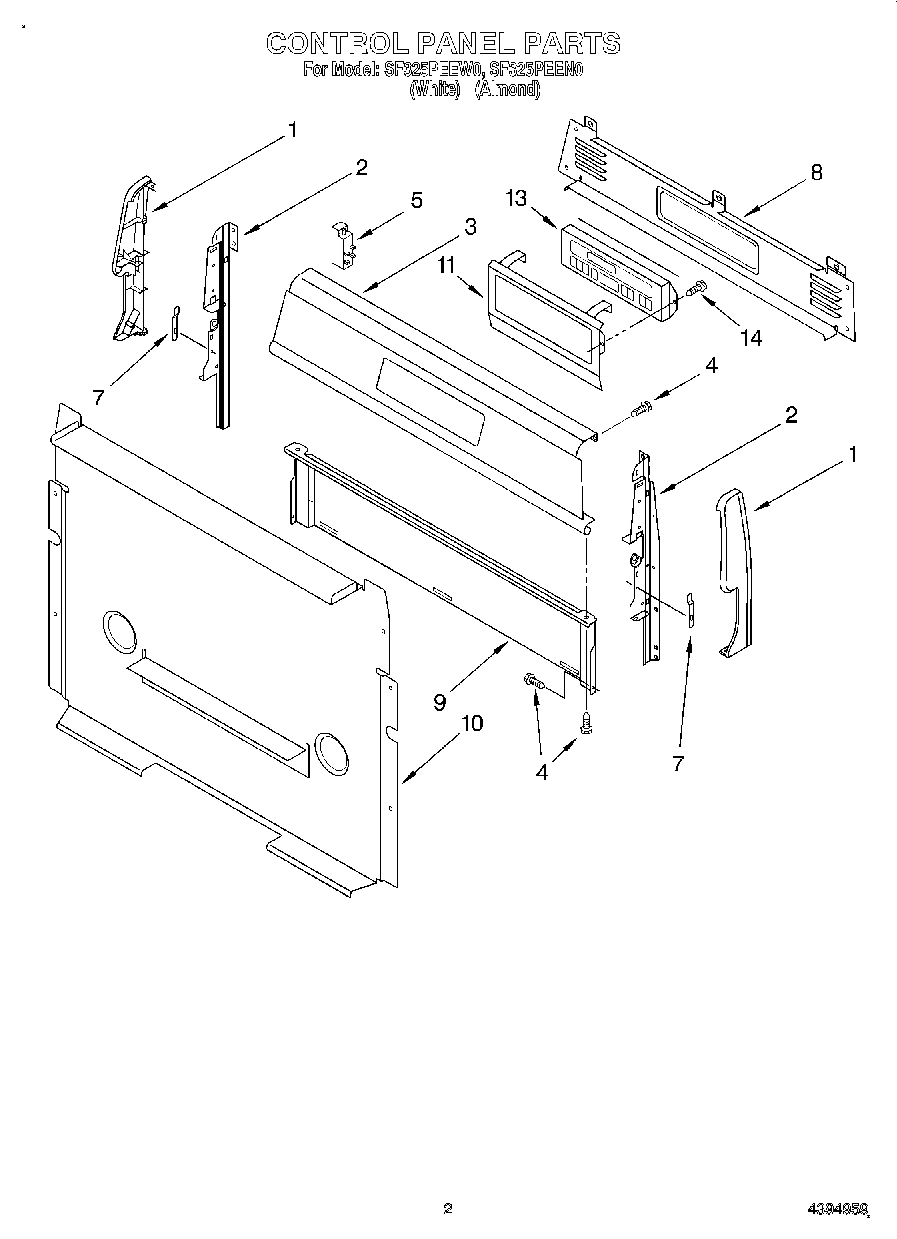

SF325PEEN0 02 – CONTROL PANEL

Products

Position	Product
1	Endcap, Right Hand (Black)
1	Endcap (Black Left Hand)
2	Support, Endcap (Left Hand)
2	Support, Endcap (Right Hand)
3	Panel, Backguard (Black)
5	WPY706189 Whirlpool Stove Screw
5	WPW10110491 Whirlpool Spark Module
7	3196200 Whirlpool Clip
8	Cover, Upper
9	Screw
9	Shield, Heat
10	Cover, Lower
11	Bracket, Control
13	Control, Range (Black)
14	SCREW
