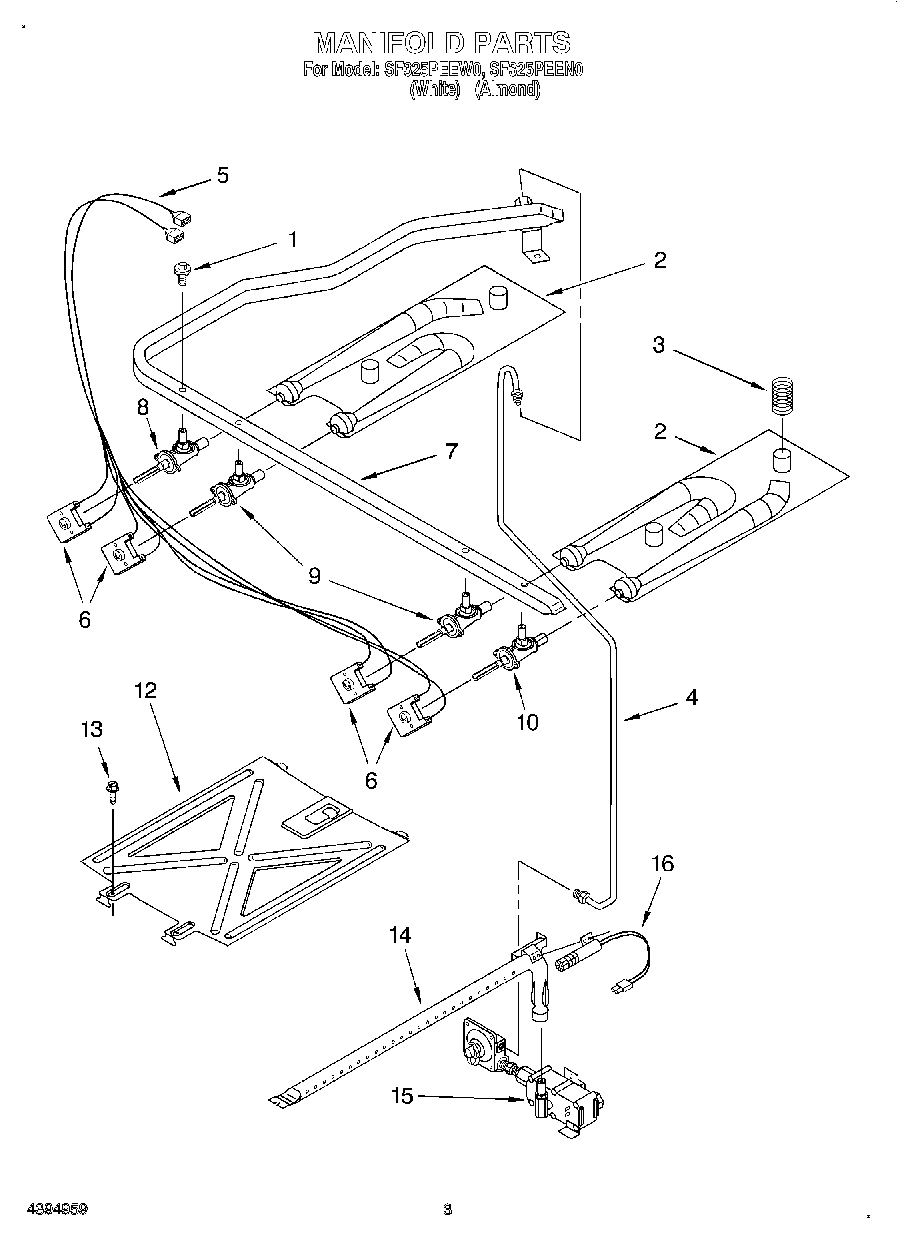

SF325PEEN0 03 – MANIFOLD

Products

Position	Product
1	WP3186217 Whirlpool Screw
2	Plate, Venturi (Right Hand)
2	Plate, Venturi (Left Hand)
3	Spring, Seal (4)
4	Tubing (Manifold to Regulator)
5	Harness, Igniter (Incl. Switches)
6	Switch, Spark (4)
7	Pipe, Manifold
8	Valve, 7,500 BTU (LR)
9	Valve, 9,500 BTU (LF, RF)
10	Valve, 6,500 BTU (RR)
12	Spreader, Flame
13	WP3196175 Whirlpool Screw
14	SCREW
14	Burner, Oven
14	3196265 Whirlpool Oven Screw
15	WP3196183 Whirlpool Screw
15	Valve, Gas Combo
16	Igniter, Bake/Broil
16	W11684507 Whirlpool Screw
