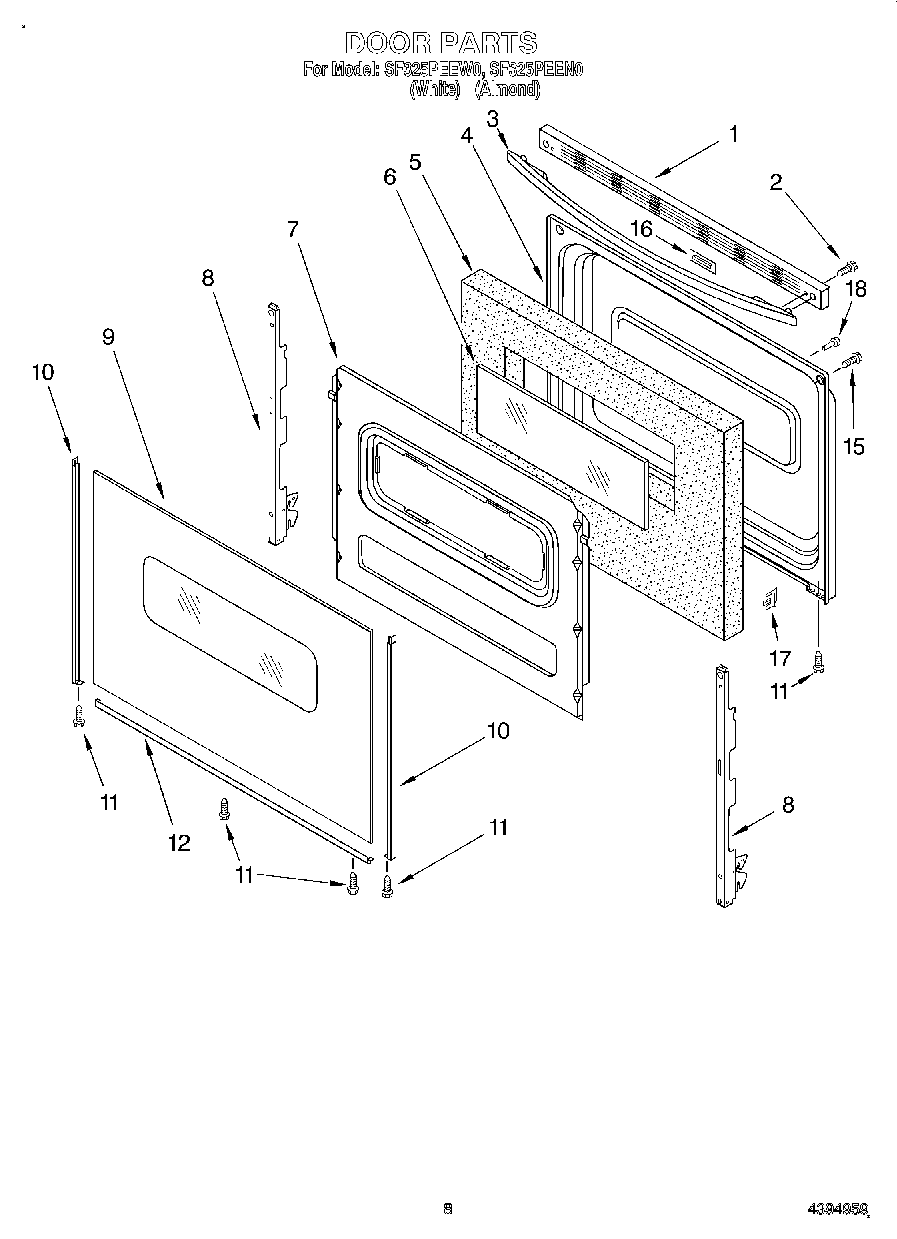

SF325PEEW0 06 – DOOR, LIT/OPTIONAL

SF325PEEW0 06 – DOOR, LIT/OPTIONAL

Written by

in

SF325PEEW0 06 – DOOR, LIT/OPTIONAL

Products

PositionProduct
Literature (Installation, Instructions (Template))
Clip
WPL 3196577
WPL LIT3196288
WPL LIT3196322
Literature (Tech Sheet)
Harness, Igniter (Incl. Switches)
WPL 3196555
1Trim, Top
2WP179051 Whirlpool Screw
3WPW10202217 Whirlpool Door Handle
4Liner, Door
5Insulation, Door
6WP9758164 Whirlpool Door Glass
79761500 Whirlpool Oven Retainer
8Hinge, Door (2)
9WP9762477 Whirlpool Glass Door
11W10491985 Whirlpool Screw
128184858 Whirlpool Door Trim
15WP3196164 Whirlpool Screw
16Plug, Door
17Clip, Glass (4)
18Wire (14 Ga. 150 c Orange)
18Wire (14 Ga. 150 c Yellow)
18WPL 3196473
18Wire (12 Ga. 150 c Black)
1818 Ga. 80~c Rating (Red)
18Wire (14 Ga. 200 c Brown)
181
18Leveler (Thinner) (2oz.)
188212471 Whirlpool Oven Paint
18Grease
188273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
1872113 Whirlpool Touch-Up Paint
18Wire (14 Ga. 150 c Green)
18Wire (14 Ga. 150 c Brown)
18WPL 72112
18Platinum (Uncut)
18Enamal, Toast (1 Qt. Uncut)
18Paint, Spray (13 Oz.) (Platinum)
18Toast
18Golden Harvest (Uncut)
18Golden Harvest
1872110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
18Almond (Uncut)
18WP72107 Whirlpool Touchup
18799344 Whirlpool Refrigerator Paint
1872017 Whirlpool Appliance Touch-Up Paint White
18350956 Whirlpool Spray Assembly
18350942 Whirlpool Spray Paint
18511873 Whirlpool Refrigerator Paint
18WPL 799832
18Wire (14 Ga. 150 c Blue)
18242831 Whirlpool Oven Wire
18Paint, Spray 13 Oz. (Avocado)
18paint, spray 13 oz. (coffee)
18Paint, Touch-Up 1/2 Oz. (Coffee)
1872109 Whirlpool Dacor Avocado Touch-Up Paint
18285006 Whirlpool Spray
18Wire, 25“ Roll (White 14 GA.)
18Wire, 25` Roll (Red 14 Ga.)
18Wire, 25` Roll (Black 14 Ga.)
18FOIL, ALUMINUM OVEN (18“ X 25 )
18WPW10208653 Whirlpool Insulation
18238614 Whirlpool Bumper Hinge
18350930 Whirlpool White Spray Paint
