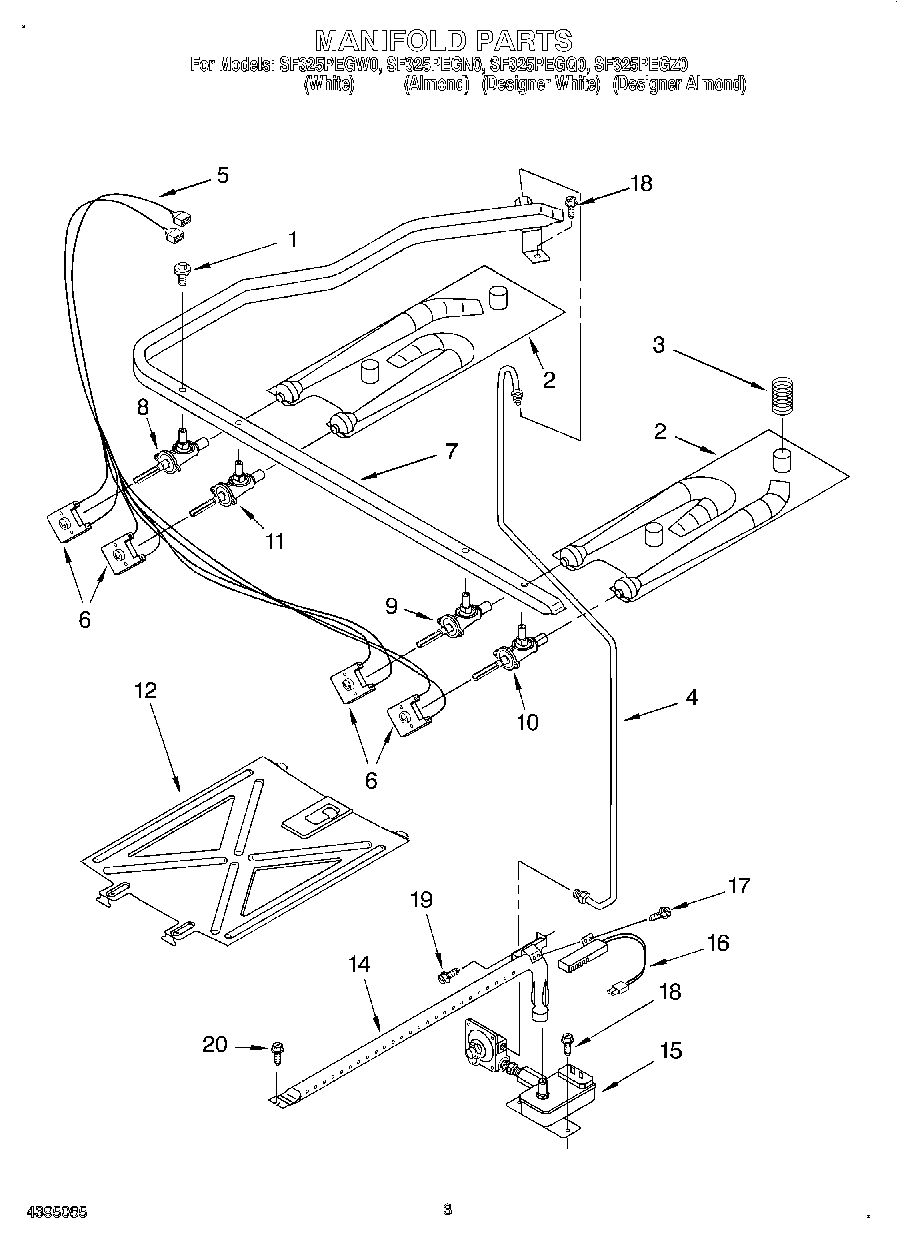

SF325PEGN0 03 – MANIFOLD

Products

PositionProduct
1WP3186217 Whirlpool Screw
2Plate, Venturi (Left Hand)
2Plate, Venturi (Right Hand)
3Spring, Seal (4)
4Tubing (Manifold to Regulator)
5Harness, Igniter (Incl. Switches)
6Switch, Spark (4)
7Pipe, Manifold
8Valve, 7,500 BTU (LR)
9Valve, 9,500 BTU (RF)
10Valve, 6,500 BTU (RR)
11Valve, 12500 BTU (LF)
12Spreader, Flame (Oven)
14Burner, Bake
15Valve, Gas Combo
16WP3186491 Whirlpool Oven Igniter
17W11684507 Whirlpool Screw
19SCREW
20Spuds, Natural Gas (Kit of 4)
20Spuds, LP Gas (Kit of 4)
203196265 Whirlpool Oven Screw
