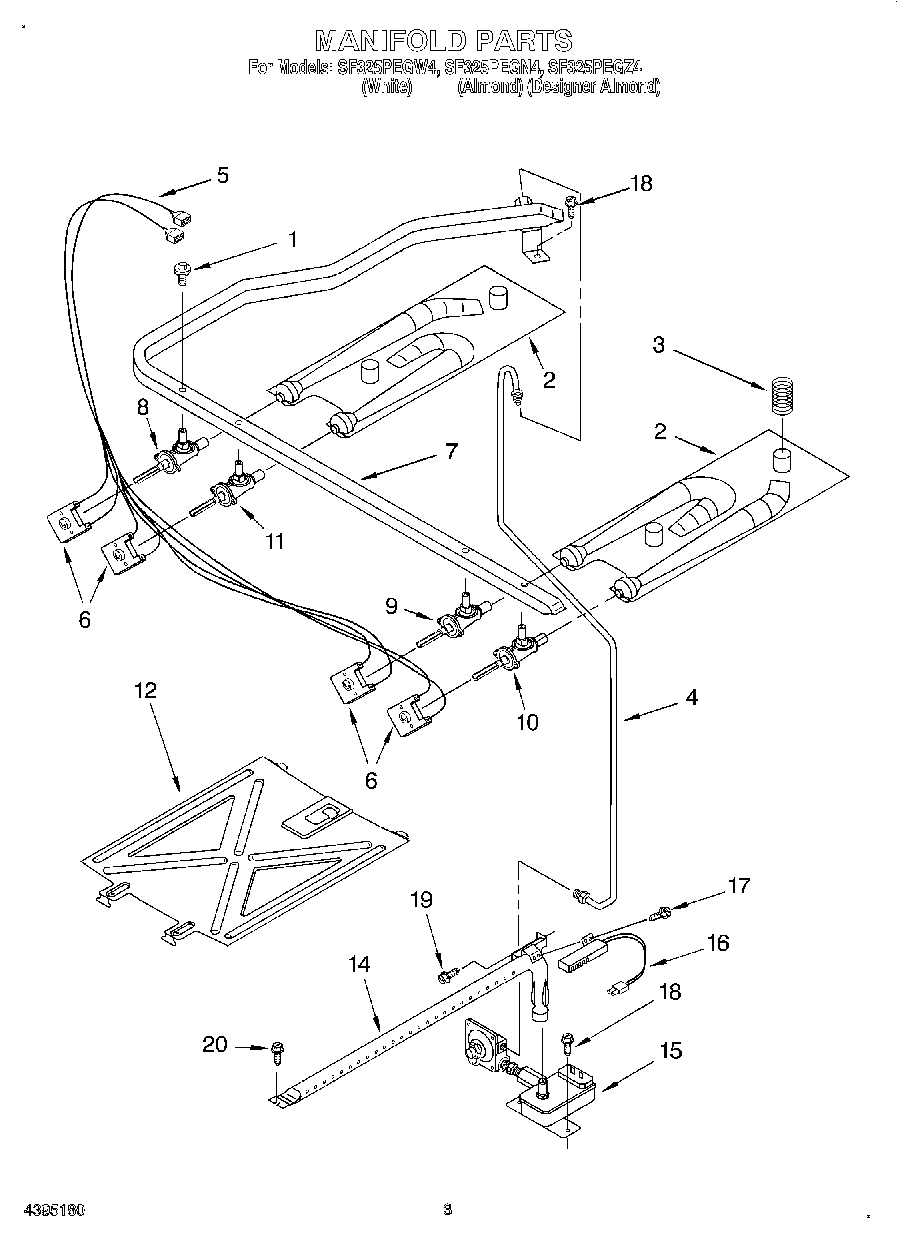

SF325PEGN4 03 – MANIFOLD

Products

Position	Product
1	WP3186217 Whirlpool Screw
2	Plate, Venturi (Left Hand)
2	Plate, Venturi (Right Hand)
3	Spring, Seal (4)
4	Tubing (Manifold to Regulator)
5	Harness, Igniter (Incl. Switches)
6	Switch, Spark
7	Pipe, Manifold
8	Valve, 7,500 BTU (LR)
9	Valve, 9,500 BTU (RF)
10	Valve, 6,500 BTU (RR)
11	Valve, 12500 BTU (LF)
12	Spreader, Flame (Oven)
14	Burner, Bake
15	Valve, Gas Combo
16	WP3186491 Whirlpool Oven Igniter
17	W11684507 Whirlpool Screw
19	SCREW
20	3196265 Whirlpool Oven Screw
20	Spuds, Natural Gas (Kit of 4)
20	Spuds, LP Gas (Kit of 4)
