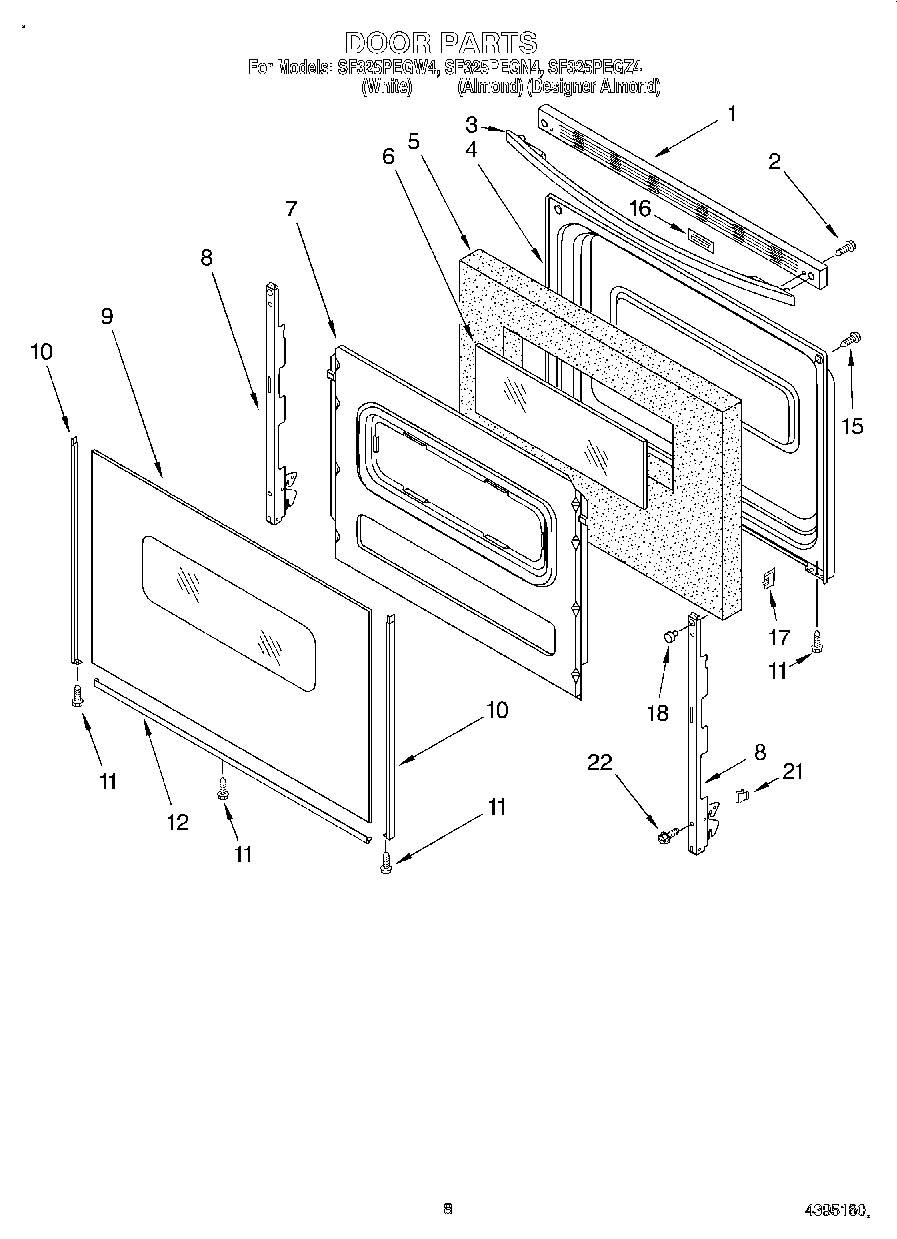

SF325PEGN4 06 – DOOR

SF325PEGN4 06 – DOOR

Written by

in

SF325PEGN4 06 – DOOR

Products

Position	Product
1	Trim, Door Top (Almond)
1	Trim, Top (Black)
2	WP3196164 Whirlpool Screw
3	Handle, Door (Almond)
3	WPW10202217 Whirlpool Door Handle
4	Liner, Door
5	Insulation, Door
6	WP9758164 Whirlpool Door Glass
7	9761500 Whirlpool Oven Retainer
8	Hinge, Door (2)
9	WP9762477 Whirlpool Glass Door
9	Glass, Outer Door (Almond)
11	W10491985 Whirlpool Screw
12	8184858 Whirlpool Door Trim
12	8184860 Whirlpool Oven Door Trim
15	WP179051 Whirlpool Screw
16	Plug, Door
17	Clip, Glass (4)
18	238614 Whirlpool Bumper Hinge
21	WP3196925 Whirlpool Clip Assembly
22	Wire (14 Ga. 150 c Blue)
22	Wire (14 Ga. 150 c Brown)
22	Wire (14 Ga. 150 c Green)
22	Wire (14 Ga. 150 c Orange)
22	Wire (14 Ga. 150 c Yellow)
22	Wire (12 Ga. 150 c Black)
22	18 Ga. 80~c Rating (Red)
22	WPL 8053527
22	3196896 Whirlpool Clip
22	WPL 3196921
22	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
22	Grease
22	8212471 Whirlpool Oven Paint
22	1
22	Wire (14 Ga. 200 c Brown)
22	242831 Whirlpool Oven Wire
22	16515 Whirlpool Clip
22	3400964 Whirlpool Oven Clip
22	Platinum (Uncut)
22	Enamal, Toast (1 Qt. Uncut)
22	Paint, Spray (13 Oz.) (Platinum)
22	Toast
22	Golden Harvest (Uncut)
22	Golden Harvest
22	72113 Whirlpool Touch-Up Paint
22	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
22	Almond (Uncut)
22	WP72107 Whirlpool Touchup
22	799344 Whirlpool Refrigerator Paint
22	72017 Whirlpool Appliance Touch-Up Paint White
22	350956 Whirlpool Spray Assembly
22	WPL 72112
22	350942 Whirlpool Spray Paint
22	511873 Whirlpool Refrigerator Paint
22	285006 Whirlpool Spray
22	814381 Whirlpool Pin
22	Paint, Spray 13 Oz. (Avocado)
22	paint, spray 13 oz. (coffee)
22	Paint, Touch-Up 1/2 Oz. (Coffee)
22	72109 Whirlpool Dacor Avocado Touch-Up Paint
22	Wire, 25“ Roll (White 14 GA.)
22	Wire, 25` Roll (Red 14 Ga.)
22	Wire, 25` Roll (Black 14 Ga.)
22	WP3196175 Whirlpool Screw
22	FOIL, ALUMINUM OVEN (18“ X 25 )
22	WPW10208653 Whirlpool Insulation
22	WPL 799832
22	350930 Whirlpool White Spray Paint
