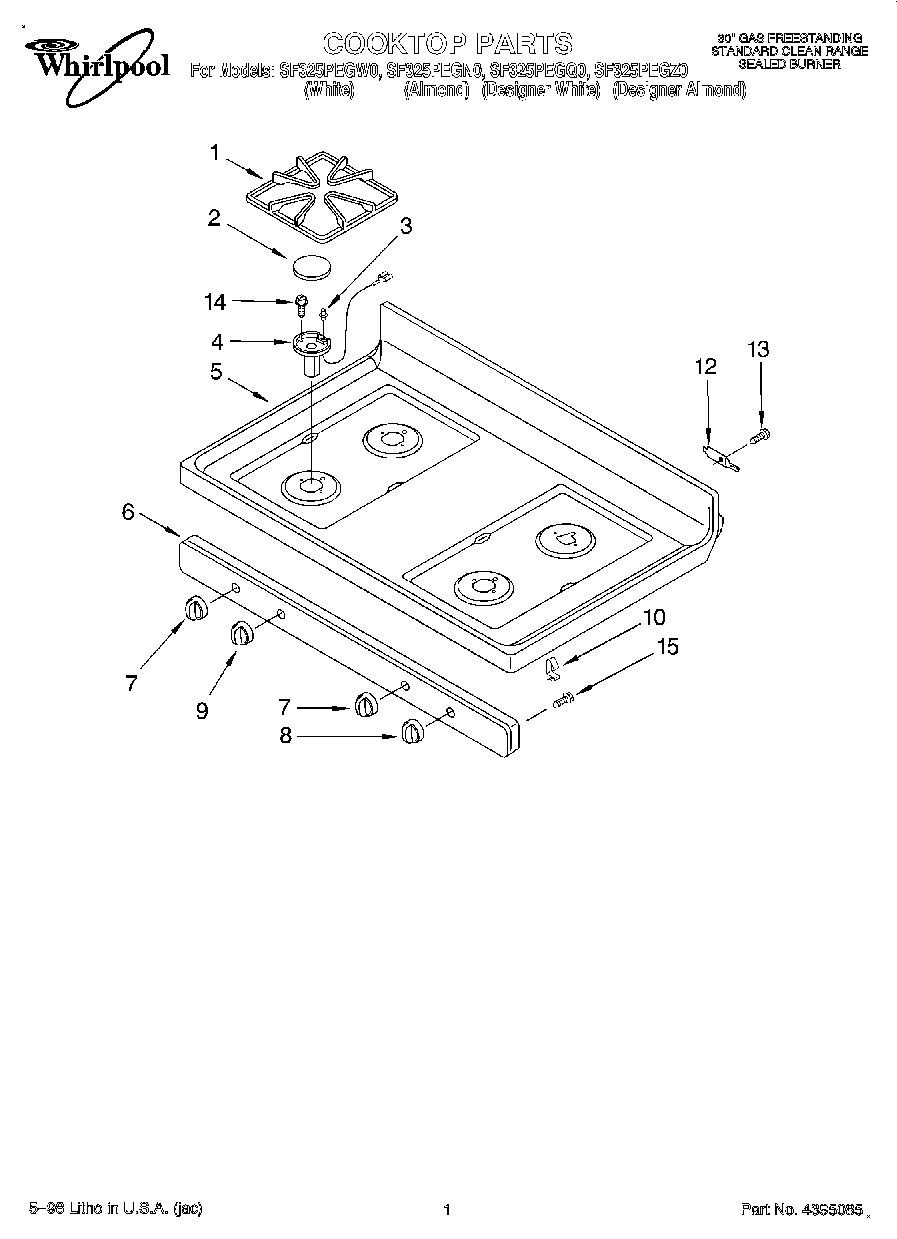

SF325PEGQ0 01 – COOKTOP

SF325PEGQ0 01 – COOKTOP

Written by

in

SF325PEGQ0 01 – COOKTOP

Products

PositionProduct
1WP8053456 Whirlpool Burner Grate
1WPW10447925 Whirlpool Grate Kit
2Cap, Burner (Small (1) (Black))
2Cap, Burner (Large (3) (Black))
2(Cap, Burner Small (1)) (Gray)
2Cap, Burner Large (3) (Gray)
3W11117434 Whirlpool Surface Igniter
3W11087383 Whirlpool Surface Igniter
3W11122877 Whirlpool Surface Igniter
3W11032529 Whirlpool Surface Igniter
4Burner, 6,500 BTU (RR)
4WP8053360 Whirlpool Burner Head
5Cooktop (Almond)
5Cooktop (White)
6Panel, Manifold (Almond Model)
6WP8523854 Whirlpool Manifold Panel
68523855 Whirlpool Oven Manifold Panel
7WP8053595 Whirlpool Oven Knob
7Knob, Control (2) (Almond)
7WP8053596 Whirlpool Knob
8Knob, Accusimmer (Almond)
9Knob, Powerburner (Almond)
10Clip – Mounting
12WP3195060 Whirlpool Cooktop Pin
13SCREW
14WP3400861 Whirlpool Screw
15WP3196557 Whirlpool Screw
